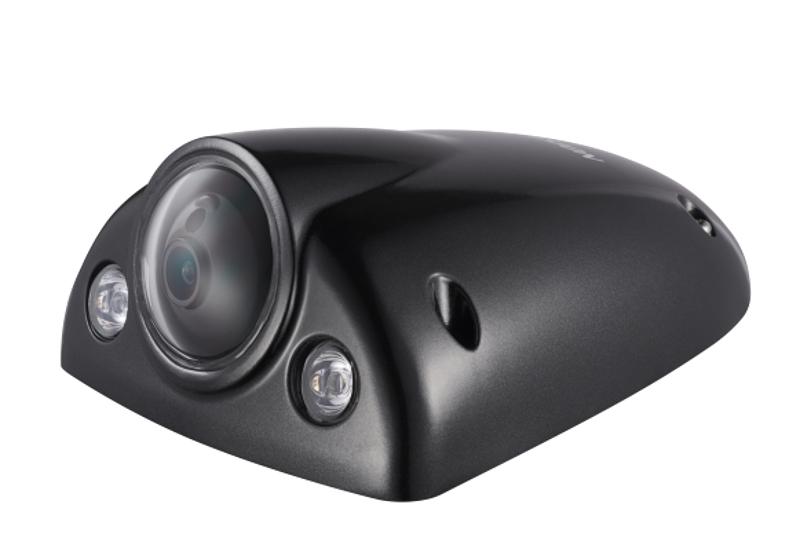

Mobile Camera Side View, 4mm
Features:
- High quality imaging with 2 MP resolution
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP68,IP69K) and vandal proof (IK10)
- Advanced streaming technology that enables smooth live view and data self-correcting in poor network
- 3DNR technology delivers clean and sharp images
| Specification | |
| Camera | |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| P/N | PAL: 25fps NTSC: 30fps |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Case Type | Wedge |
| Slow Shutter | Yes |
| Resolution | 2MP |
| Day & Night | IR Cut Filter |
| Angle Adjustment | 2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90° 4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90° |
| Lens | |
Focal Length & FOV | 2.8 mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126° 4 mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104° 6 mm: horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62° |
| Lens Mount | M12 |
| Lens Type | Fixed Lens |
| Max. Aperture | 2.8 mm/4 mm/6 mm: F 1.6 |
| Illuminator | |
| Smart Supplement Light | Yes |
| IR Wavelength | 850nm |
| IR Range | Up to 30m |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz:25fps(1920 x 1080, 1280x960, 1280 x 720) 60Hz:30fps(1920 x 1080, 1280x960, 1280 x 720) |
| Sub-Stream | 50Hz:25fps(704 x 576, 640x480, 352 x 288, 320x240) 60Hz:30fps(704 x 576, 640x480, 352 x 288, 320x240) |
| Third Stream | 50Hz:25fps(1920 x 1080, 1280x960, 1280x720, 704x576, 640x480, 352 x 288, 320x240) 60Hz:30fps(1920 x 1080, 1280x960, 1280x720, 704x480, 640x480, 352 x 240, 320x240) |
Video Compression | Main Stream: H.265 /H.264/H.264+/H.265+ Sub-Stream: H.265 /H.264 / H.264+/H.265+/MJPEG Third Stream: H.265 /H.264/H.264+/H.265+ |
Video Bit Rate | Main Stream: 256 Kbps to 12 Mbps Sub-Stream: 256 Kbps to 4 Mbps Third Stream: 256 Kbps to 12 Mbps |
| H.264 Type | BaseLine Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | Support 2 fixed region for (main/sub) stream |
| Network | |
| Protocols | TCP/IP,HTTP,HTTPS,DHCP,DNS,DDNS ,RTSP,SNMP,QOS,FTP,RTCP,NTP,UPNP,SMTP,IGM P,ICMP,IPV6,UDP,SSL/TLS |
| Simultaneous Live View | Up to 8 channels |
| API | HIKSDK, ONVIF (PROFILE S, PROFILE G,PROFILE T), ISAPI |
| User Management | Up to 16 users 3 levels: Administrator, Operator and User |
| Web Browser | IE8+, Chrome45+, Edge41+, Firefox45+ |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| Smart IR | No |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| SNR | ＞50dB |
| Image Enhancement | BLC, HLC, 2DNR ,3DNR |
| Privacy Mask | 4 regions of privacy mask |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| DNR | 3DNR |
| Interface | |
| Ethernet Interface | Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port -M: 1 four-core M12 aviation plug |
| Audio | No |
| Alarm | No |
| RS-485 | No |
| Reset Key | Yes |
| Heater | Yes |
| TF Card Storage | Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering) |
| Event | |
| Linkage Method | Upload to FTP, notify monitoring center center, send email, trigger recording |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, TF card error) |
Smart Event | Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Object detection: detects faces and upload images Scene change detection, defocus detection, Loitering Detection, People Gathering Detection, Fast Moving Detection, Parking Detection, |
| General | |
| Product Dimension | Camera: 163.7 mm × 122.6 mm × 65.1 mm (6.4" × 4.8" × 2.6") With package: 252 mm × 190 mm × 108 mm (9.9" × 7.5" × 4.3") |
Power Interface | -I/ND: RJ45 interface, PoE power supply -ID: Ø 5.5 mm coaxial power plug, DC -IDM: two-core Molex connector, DC power supply -IM/ND: four-core M12 aviation plug, PoE power supply |
| Power Consumption | -ID, -IDM: 9~36 V DC, max. 10 W -I/ND, -IM/ND: PoE: (802.3af, 36 V to 57 V), max. 10 W |
| Protection | IP68(IEC 60529-2013), IK10(IEC 62262:2002), IP69K(ISO 20653:2013) |
| Power Supply | -ID, -IDM: 9-36V, two-core terminal block, reverse polarity protection&PoE802.3af; -I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 3 |
| Camera Material | Metal |
| Product Weight | Camera: Approx. 905 g (2.0 lb.) With package: 1271 g (2.8 lb.) |
Startup and Operating Conditions | -40 °C to 75 °C (-40 °F to 167°F), humidity less than 95% or less (non-condensing) |
| Language | Support English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish,Czech |
| General Function | Anti-flicker, 3 streams, heartbeat, mirror, privacy mask |
| Selection Parameter | |
| Wi-Fi Support | No |
| Approval | |
| Electrical Safety Protection | IK10(IEC 62262:2002） |
EMC | FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B） CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013） RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015IC: ICES-003 Issue 7:2020 KC: KN32:2015,KN35:2015 |
Safety | CB: IEC 60950-1CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013) LOA: SANS IEC60950-1 BIS: IS 13252(Part 1)2010+A1:2013+A2:2015 |
| Environment | CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863) Reach SVHC: Regulation (EC) No 1907/2006 |
Automotive and Railway | EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10) |
