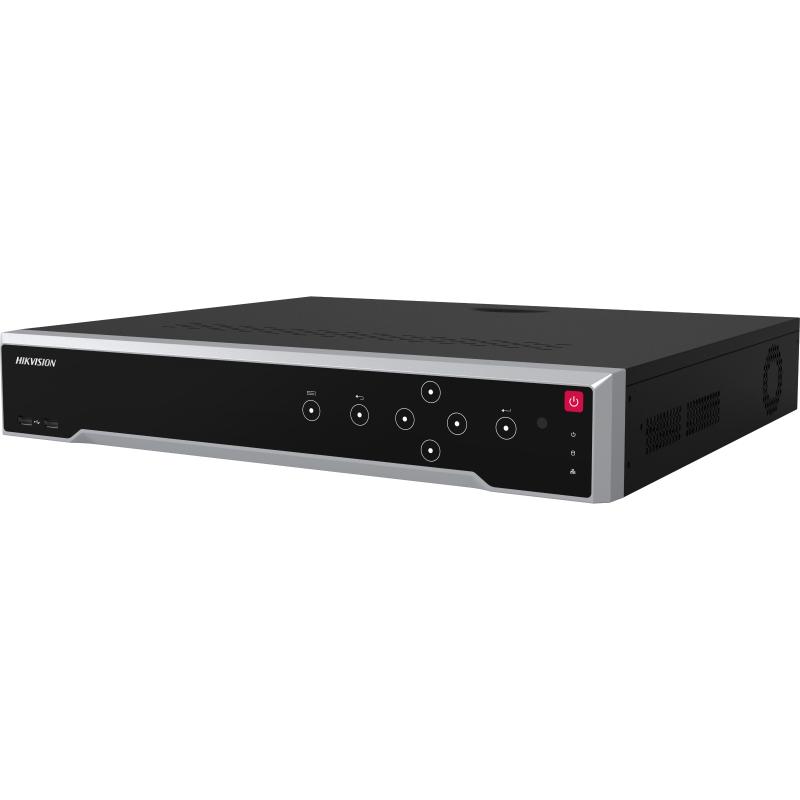

16-ch 1.5U 16 PoE 8K NVR 2TB
Features:
- H.265+/H.265/H.264+/H.264 video formats
- Up to 16-ch IP camera inputs
- Up to 16-ch@4 MP decoding capacity
- Up to 256 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
Professional and Reliability
- 265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading
HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution
- Dual 4K HDMI output resolution
Storage and Playback
- Up to 4 SATA interfaces for HDD connection
- 16-ch synchronous playback
Smart ＆ POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm
Network ＆ Ethernet Access
- 16 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect ＆ DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug-in
| n Specification | |
| Video and Audio | |
IP Video Input | 16-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8 -ch 32 MP/24 MP IP video inputs. |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
| VGA Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8 -ch 32 MP/24 MP IP video inputs. |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| PoE | |
| Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 200 W |
| Standard | IEEE 802.3 af/at |
| RAID | |
| RAID Type | N/A |
| Auxiliary Interface | |
| eSATA | 1 eSATA interface |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 16/9 |
Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. |
| DC 12V | 12 VDC, 1 A power output |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W × D × H) | 440 × 389 × 72 mm ( 17.3"× 15.3" × 2.8") |
| Weight | ≤ 5 kg (without HDD, 11 lb.) |
| Certification | |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
