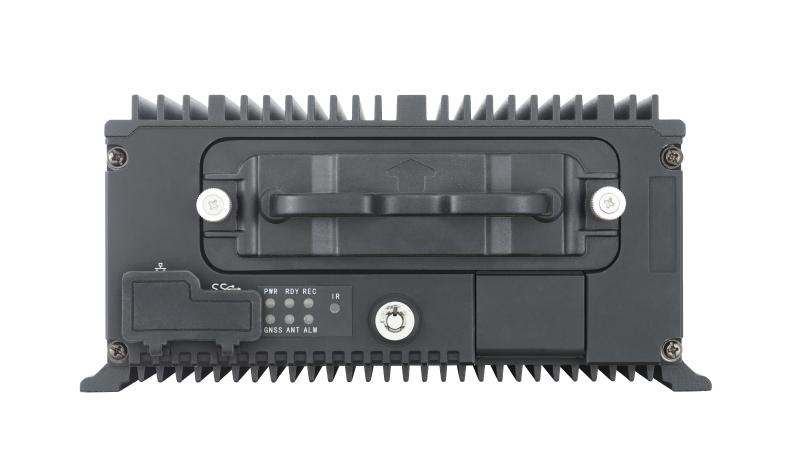

HIKVISION - DS-MP7608HN(1T) - Mobile DVR RJ45
Part number:
DS-MP7608HN(1T)
Price:
8-ch 1080p, H.265, 2 x HDD/SSD Mobile NVR
Features:
- Supports 8-ch 2 MP IP cameras via PoE interfaces
- Efficient H.265 compression technology
- Supports up to 2 × 2.5 inch HDDs/SSDs (up to 2 TB for each), 1 × SD (up to 256 GB)
- Supports 3G/4G and Wi-Fi modules for communication
- Supports GPS positioning
| Specification | ||
| Model | DS-MP7608HN/M12(/GW)(/WI)(/WI58) | |
| Video/Audio Input | IP Camera | 16 in total: 8 IP cameras connected via PoE interfaces, 8 IP cameras extendable via PoE interfaces |
| Two-way Audio | 1, integrated in EXT.DEV interface | |
| Video/Audio Output | Video Output | CVBS: 1, PAL: 704 × 576, NTSC: 704 × 480 |
| VGA: 1, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 | ||
| Audio Output | 1 | |
| Encoding/Decoding parameters | Video Compression | H.264, H.265 |
| Encoding Resolution | Main stream: 1080p/720p/WD1/4CIF, sub-stream: 4CIF/2CIF/CIF | |
| Frame Rate | PAL: 1 to 25fps; NTSC: 1 to 30fps | |
| Audio Compression | G.722 | |
| Stream Type | Video, video & audio | |
| Audio Bitrate | 16 Kbps | |
| Dual Stream | Supported | |
| Storage | HDD/SSD | 2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD |
| Dummy HDD with USB 3.0 interface | ||
| SD card | 1 × SD card, up to 256 GB | |
| Wireless network | 3G/4G dialing | 1 × 3G/4G card slot, 1 × Rosenberger antenna |
| Wi-Fi | l WI58 model: 2 × 5.8 G Wi-Fi SMA antenna l WI model: 1 × 2.4 G Wi-Fi SMA antenna | |
| Positioning | GNSS (Global Navigation Satellite System) | GPS (Global Positioning System), 1 × Rosenberger antenna |
| PoE | PoE Interface | 8 × M12 PoE interface |
| Max. Consumption | 51 W | |
| External interface | Network Interface | l Front panel: 1 × 10M/100M/1000M RJ45 Ethernet interface l Rear panel: 1 × 10M/100M/1000M M12 Ethernet interface |
| Serial Port | 2 × RS-232, 1 × RS-485, 1 × RS-422 (integrated in EXT.DEV interface) | |
| CAN interface | 2 | |
| USB Interface | ● Front panel: 1 × USB 3.0 ● Rear panel: 1 × USB 2.0 of 5-pin aviation plug | |
| Sensor-in | 4 high/low level signal inputs | |
| Alarm Input | 4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input (reserved) | |
| Alarm Output | 2 relay signal outputs | |
| General | Operating Method | Mouse, IR remote control, Web control, and touchscreen |
| Power Supply | 9 to 32 VDC | |
| Consumption | ● Standby: ≤ 0.5 W ● Full load: ≤ 99 W Note: Without peripheral and storage media ≤ 20 W | |
| Working Temperature | ● Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to +140°F) ● Other devices: -10 °C to +60 °C (14 °F to 140°F) | |
| Working Humidity | 10% to 95% | |
| Dimensions (W × D × H) | 202 × 267.6 × 93.9 mm (8.0 × 14.5 × 3.7 inch) | |
| Weight (Without Storage Media) | 3.66 kg (8.07 lb) | |
