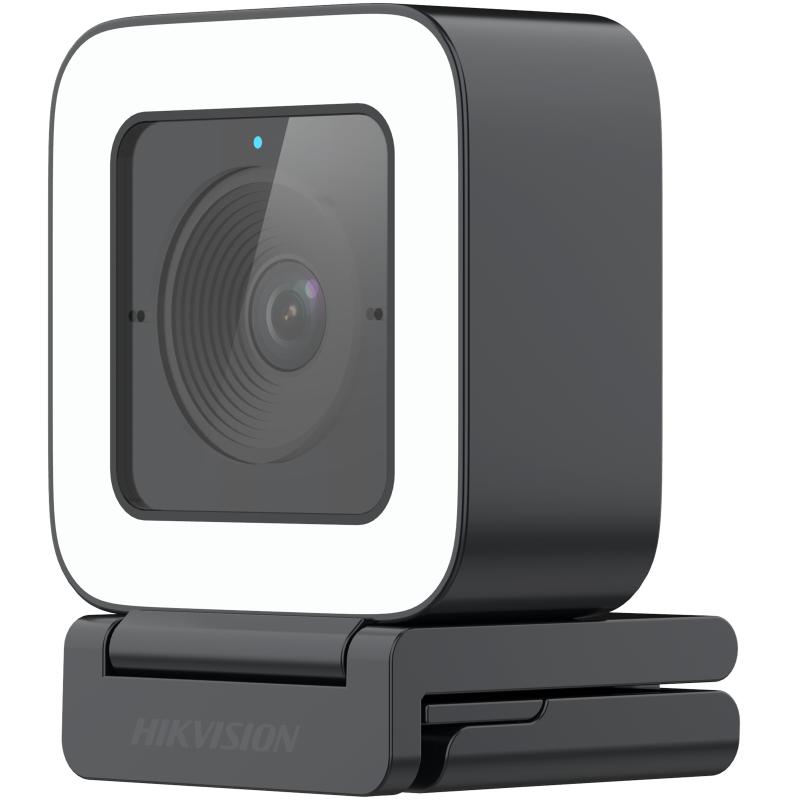

HIKVISION - DS-UL4 - 2K Live Web Camera
Part number:
DS-UL4
Price:
2K Live Web Camera
Features:
- High quality imaging with 2560 × 1440 resolution
- Built-in supplement light for bright imaging
- Low distortion lens for reducing image distortion
- Built-in microphone with clear sound
- Type-C interface, supporting USB 2.0 protocols
- Plug-and-play, no need to install driver software
- Support auto focus
| Specification | |
| Camera | |
| Image Sensor | 4 MP CMOS |
| Signal System | PAL/NTSC |
| Max. Resolution | 2560 (H) × 1440 (V) |
| Min. Illumination | 0.1 Lux @ (F1.2, AGC ON) |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | 24/7 Color Imaging |
| Angle Adjustment | pan: 0°; tilt: 0° to 90°; ratation: 0° |
| Digital Zoom | Yes |
| Lens | |
| Lens Type | 3.6 mm fixed focal lens |
| Focal Length & FOV | horizontal FOV: 81°, vertical FOV: 50°, diagonal FOV: 90° |
| Lens Mount | M8 |
| Object Distance Range | 5 cm to ∞ |
| Image | |
| Frame Rate | MJPG：2560 × 1440 @30fps/25fps1920 × 1080 @60fps/50fps/30fps/25fps1280 × 960 @60fps/50fps/30fps/25fps1280 × 720 @60fps/50fps/30fps/25fps640 × 480 @60fps/50fps/30fps/25fps640 × 360 @60fps/50fps/30fps/25fpsYUV2：1920 × 1080 @5fps1280 × 960 @5fps1280 × 720 @10fps640 × 480 @30fps640 × 360 @30fps |
| Audio | |
| Audio Sampling Rate | 16 kHz |
| Interface | |
| Video Output | USB 2.0 |
| Audio | Built-in mic |
| General | |
| Operating Condition | -10°C to 40°C, Humidity: 90% or less (non-condensing) |
| Material | Plastic |
| Dimension | 47.9 mm × 59.9 mm × 75.4 mm (1.89" × 2.36" × 2.97") |
| Weight | Approx. 169.5g (0.37 lb.) |
| Packing List | Camera × 1USB Cable × 1Quick Start Guide × 1Bracket × 1Tripod × 1 |
| Power | DC 5V ± 5% (USB), Max. 2.5 W |
| Cable Length | 2 m |
| System Requirement | Recommended systems Windows 7/8/10/11 (resolution higher than 1080P is only available in Windows 8.1 and above version) Android 8.1 and above version Linux 4.14 and above version macOS 10.12 and above version Chrome OS |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
File
Quick Start Guide
0.5mb
