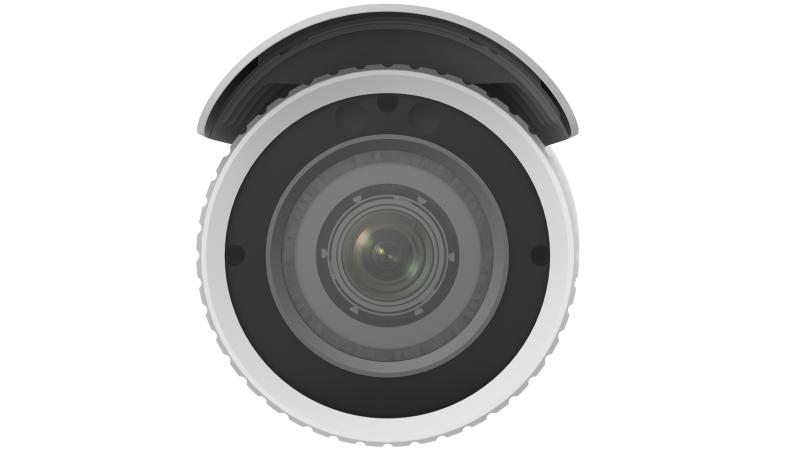

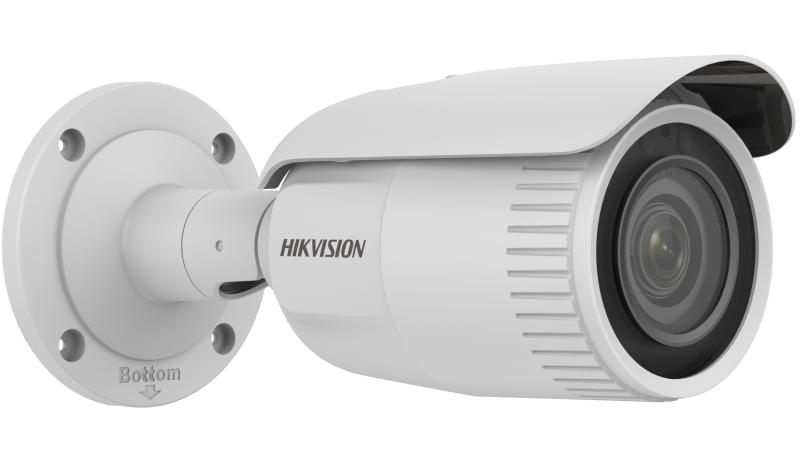

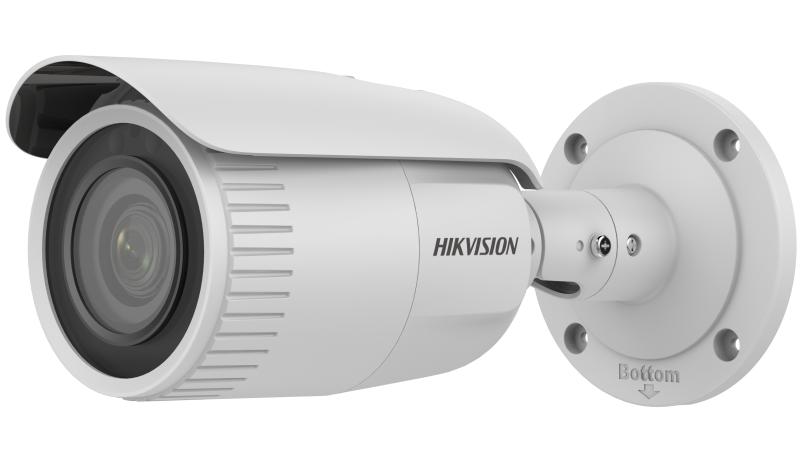

Hikvision - ECI-B64Z2 - 4 MP Varifocal Bullet Network Camera
Part number:
ECI-B64Z2
Price:
The Hikvision ECI-B64Z2 Outdoor EXIR Varifocal Bullet Camera provides high definition network output. It supports H.265+ video compression technology, which assures savings in bandwidth and storage. EXIR 2.0 is Hikvision’s proprietary IR extended range technology, which has a range of 100 feet (30 meters). The 2.8 mm to 12 mm motorized varifocal lens is optimized for viewing angles that fit any situation. This flexible technology allows for the angle of view to be changed at will in order to focus on an area of interest.
Features:
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Up to 256 GB SD card slot for storage
- 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
| Specification | |
| Camera | |
| Image Sensor | 1/3" (4 MP) progressive scan CMOS Minimum Illumination Color: 0.018 lux @ (¦/1.6, AGC on) |
| Shutter Speed | 1/3 s to 1/100,000 s, slow shutter supported Slow Shutter Yes |
| Auto-Iris | No |
| Day/Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| Angle Adjustment (Bracket) | Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° |
| Lens | |
| Focal Length | 2.8 mm to 12 mm |
| Aperture | f/1.6 |
| Focus | Automatic |
| FOV | Horizontal field of view: 98° to 28°; vertical field of view: 51° to 16°; diagonal field of view: 115° to 32° |
| Lens Mount | Ø14 |
| IR | |
| IR Range | Up to 100 ft (30 m) |
| Wavelength | 850 nm |
| Compression Standard | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265+/H.265/H.264+/H.264 /MJPEG |
| H.264 Type | Baseline profile/main profile/high profile |
| H.264+ | Main stream |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Smart Features | |
| Region of Interest | One fixed region for main stream and sub-stream |
| Image | |
| Maximum Resolution | 2560 x 1440 |
| Main Stream | 20 fps (2560 x 1440), 30 fps (2304 x 1296, 1920 x 1080, 1280 x 720) |
| Sub-Stream | 30 fps (640 x 480, 640 x 360, 320 x 240) Image Enhancement BLC, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or Web browser |
| Day/Night Switch | Auto, scheduled |
| Network | |
| Network Storage | Support for microSD/SDHC/SDXC card (128 GB), local storage, and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflicted, and illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live | View Up to 6 channels |
| User/Host | Up to 32 users; three levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE 8+, Chrome 31 to 44, Firefox 30.0 to 51, Safari 8.0+ |
| Interface | |
| Communication Interface | 1-Port RJ-45 10M/100M self-adaptive Ethernet port |
| Reset Button | Yes |
| General | |
| Operating Conditions | -22° to 140° F (-30° to 60° C); humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ±20%, 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.9 A, maximum: 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, maximum: 12.9 W |
| Protection Level | IP67, TVS 2000V lightning protection, surge protection, and voltage transient protection |
| Material | Metal |
| Dimensions | 4.1" x 4.1" x 5.7" (105 mm x 105 mm x 145 mm) |
| Weight | Camera: 2.3 lbs (1.04 kg) |
