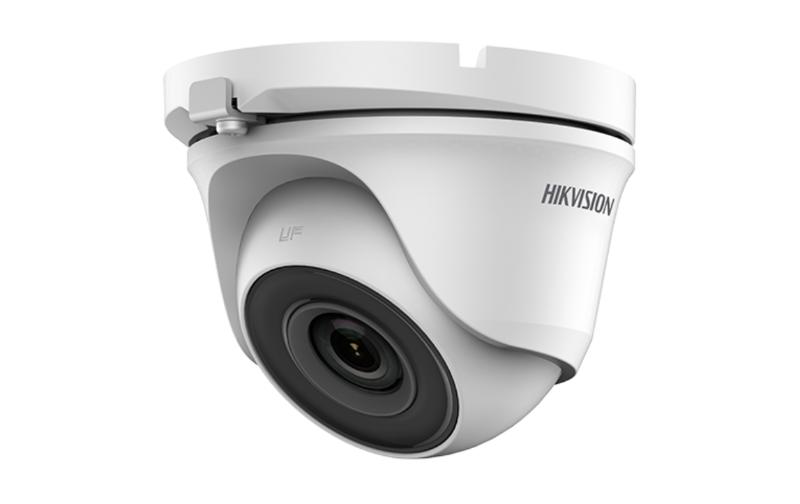

Hikvision - ECT-T12F2 - 2MP Fixed Turret Camera
Part number:
ECT-T12F2
Price:
2MP Fixed Turret Camera
Features:
- 1080p turret camera
- Smart IR: up to 20 m IR distance
- Water and dust resistant (IP66)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Specification | |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day ＆ Night | IR Cut Filter |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm and 6 mm |
| Focal Length ＆ FOV | 103° (2.8 mm), 80.7° (3.6 mm), 50.1° (6 mm) |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 20 m |
| Image | |
| Image Settings | Brightness,Mirror,Smart IR,Sharpness,AGC |
| Frame Rate | PAL: 1080p@25 fps NTSC: 1080p@30 fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC |
| Noise Reduction | 2D DNR |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS,1 HD analog output |
| General | |
| Power | 12 VDC ± 15%, max. 4 W |
| Material | Metal |
| Dimension | Ø 82.6 mm × 69.66 mm (Ø 3.25" × 2.74") |
| Weight | 230 g (0.51 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
| Language | English |
| Approval | |
| Protection | IP66 |
