HIKVISION - EKI-K82D46 - KIT 4KNVR 8CH2TB 6OD 4MP2.8M
Part number:
EKI-K82D46
Price:

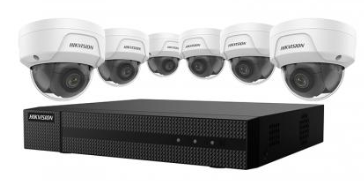

4 MP Outdoor WDR Fixed Dome Network Camera Kit
Hikvision EKI-KxxxD4xx Series 4K NVR Value Express Kits are cost-effective solutions for value-oriented users. Each kit is supplied with four, six, or twelve network cameras with 4 MP image sensors, and a 4-, 8-, or 16-channel 4K NVR in the same box.
Features:
Cameras
- 1/3" (4 MP) Progressive Scan CMOS
- 2688 x 1520 @ 30 fps
- 2.8 mm Fixed Lens
- Color: 0.018 Lux @ /1.6, AGC on), 0 Lux with IR
- H.265+/H.265/H.264+/H.264
- IP67, IK10
- 120 dB WDR
- BLC/3D DNR/ROI/HLC
- Built-in MicroSD/SDHC/SDXC Card Slot, Up to 128 GB
- 3-Axis Adjustmen
4K NVR
- Up to 8 MP Resolution Recording
- H.265+/H.265/H.264+/H.264/MPEG
- Plug-and-Play with 4, 8, or 16 PoE Cameras
- Up to 2 SATA Interfaces
| EKI-K41D44 | EKI-K82D46 | EKI-K164D412 | |
| Camera | |||
| Camera Model | ECI-D24F2 | ||
| Number of Cameras | 4 | 6 | 12 |
| Image Sensor | 1/3" 4 MP progressive scan CMOS | ||
| Minimum Illumination | Color: 0.018 lux @ (¦/1.6, AGC on), 0 lux with IR | ||
| Shutter Speed | 1/3 s to 1/100,000 s | ||
| Slow Shutter | Yes | ||
| Day/Night | IR cut filter | ||
| Digital Noise Reduction | 3D DNR | ||
| WDR | 120 dB | ||
| 3-Axis Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | ||
| Lens | |||
| Focal length | 2.8 mm | ||
| Aperture | ¦/1.6 | ||
| Focus | Fixed | ||
| FOV | 2.8 mm, horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123° | ||
| Lens Mount | M12 | ||
| IR | |||
| IR Range | Up to 98 ft (30 m) | ||
| Wavelength | 850 nm | ||
| Compression Standard | |||
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 | ||
| H.264 Type | Main Profile/High Profile | ||
| H.264+ | Main stream supports | ||
| H.265 Type | Main Profile | ||
| H.265+ | Main stream supports | ||
| Video Bit Rate | 32 Kbps to 16 Mbps | ||
| Alarm Triggers | |||
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) | ||
| Linkage Method | Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, e-mail Trigger notification: HTTP, ISAPI, e-mail | ||
| Region of Interest | 1 fixed region for main stream and sub-stream | ||
| Image | |||
| Maximum Resolution | 2688 × 1520 | ||
| Main Stream | 30 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) | ||
| Sub-Stream | 30 fps (640 × 480, 640 × 360, 320 × 240) | ||
| Third Stream | 30 fps (1280 × 720, 640 × 360, 352 × 240) | ||
| Image Enhancement | BLC/3D DNR/HLC | ||
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or Web browser | ||
| Target Cropping | No | ||
| Day/Night Switch | Day/Night/Auto/Schedule | ||
| Network | |||
| Network Storage | Supports microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR | ||
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour, SSL/TLS | ||
| General Function | Anti-flicker, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening | ||
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome | ||
| Security | Password protection, complicated password, HTTPS encryption, 802.1x authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 | ||
| Simultaneous Live View | Up to 6 channels | ||
| User/Host | Up to 32 users 3 levels: administrator, operator, and User | ||
| Client | iVMS-4200, Hik-Connect, HikCentral | ||
| Web Browser | Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ | ||
| Interface | |||
| Communication Interface | 1 RJ-45 10M/100M self-adaptive Ethernet port | ||
| Video Output | No | ||
| On-Board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB | ||
| SVC | H.264 and H.265 encoding | ||
| Reset Button | Yes | ||
| Audio (-S) | |||
| Environment Noise Filtering | Yes | ||
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz | ||
| General | |||
| Operating Conditions | -30° to +60° C (-22° to +140° F), humidity 95% or less (non-condensing) | ||
| Web Client Language | English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) | ||
| Power Supply | 12 VDC ±25%, Ø5.5 mm coaxial power plug PoE (802.3af, class 3) | ||
| Power Consumption and Current | 12 VDC, 0.5 A, maximum 6 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, maximum 7.5 W | ||
| Protection Level | IP67, IK10 | ||
| Material | Metal | ||
| Dimensions | Camera: Ø4.4" × 3.2" (Ø111 mm × 82.4 mm) Package: 5.3" × 5.3" × 4.3" (134 mm × 134 mm × 108 mm) | ||
| Weight | Camera: approximately 1.3 lb (610 g) With package: approximately 1.8 lb (820 g) | ||
| NVR | |||
| NVR Model | ERI-K104-P4 | ERI-K108-P8 | ERI-K216-P16 |
| Video/Audio Input | |||
| 4-ch | 8-ch | 16-ch | |
| Up to 8 MP resolution | |||
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1K Ω) | ||
| Network | |||
| Incoming Bandwidth | 40 Mbps | 80 Mbps | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps | ||
| Video/Audio Output | |||
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | ||
| HDMI Output Resolution | 1-ch, 1920 × 1080p, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768 | ||
| VGA Output Resolution | 1-ch, 1920 × 1080p, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768 | ||
| Audio Output | 1-ch, RCA (linear, 1K Ω) | ||
| Decoding | |||
| Decoding Format | H.265/H.265+/H.264/H.264+/MPEG4 | ||
| Live View/Playback Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | ||
| Synchronous Playback | 4-ch | 8-ch | 16-ch |
| Capability | 1-ch @ 8 MP/4-ch @ 1080p | ||
| Network Management | |||
| Network Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS | ||
| Hard Disk | |||
| SATA | 1 SATA interface | 2 SATA interfaces | |
| Drive Bays | 1 | 2 | |
| Capacity for Each Disk | Up to 6 TB | ||
| External Interface | |||
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface | ||
| USB Interface | 2 × USB 2.0 | ||
| PoE Interface | |||
| Interface | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface | 16, RJ-45 10/100 Mbps self- adaptive Ethernet interface |
| Power | ≤50 W | ≤80 W | ≤150 W |
| Standard | IEEE 802.3 af/at | ||
| General | |||
| Power Supply | 48 VDC | 100 to 240 VAC | |
| Power | ≤65 W | ≤180 W | ≤280 W |
| Consumption (w/o Hard Disk) | ≤10 W (w/o enabling PoE) | ≤15 W | |
| Working Temperature | 14 to 131º F (-10 to 55º C) | ||
| Working Humidity | 10% to 90% (non-condensing) | ||
| Chassis | 1U chassis | ||
| Dimensions (W × D × H) | 12.4" × 9.4" × 1.9" (315 mm × 240 mm × 48 mm) | 15.2" × 12.4" × 2.0" (385 mm × 315 mm × 52 mm) | |
| Weight (w/o Hard Disk) | ≤2.2 lb (≤1 kg) | ≤5.7 lb (≤2.6 kg) | |
