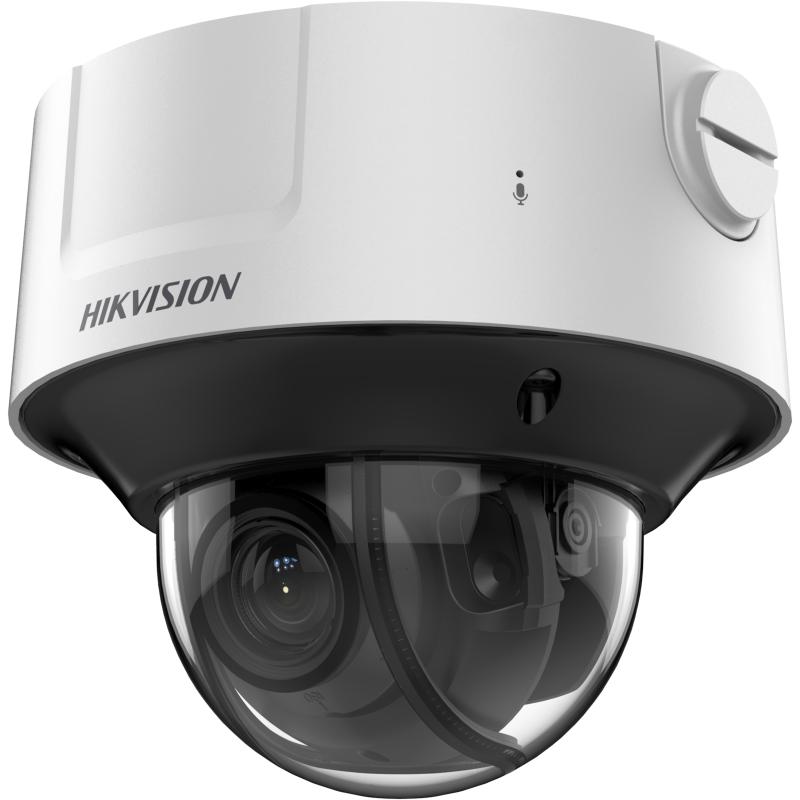

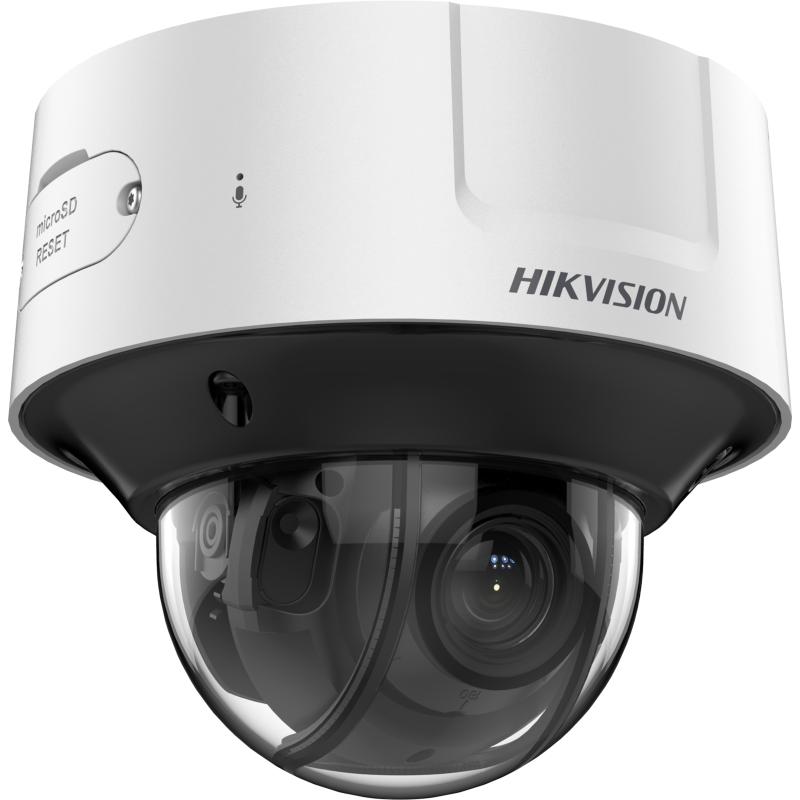

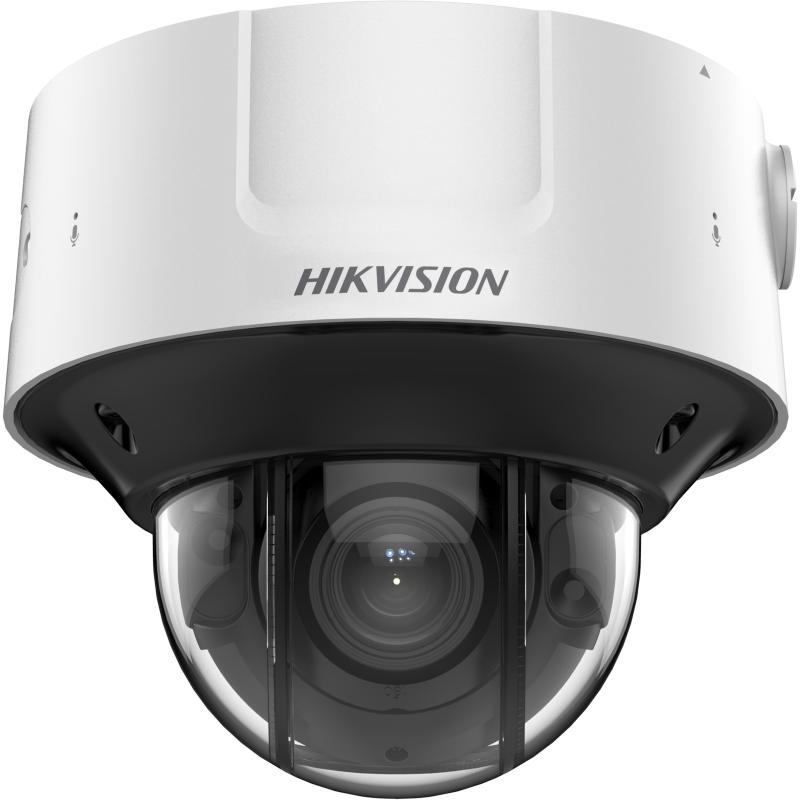

Hikvision - iDS-2CD7546G0-IZHSY 8-32mm - 4MP DeepinView Outdoor Moto Varifocal Dome Camera
Part number:
iDS-2CD7546G0-IZHSY 8-32mm
Price:
Face Detection
Embedded deep learning based algorithms, the camera detects,tracks, captures, grades, and selects faces and outputs features such as age, and expression.
The camera uses a face exposure function to dynamically adjust face area exposure of captures and ensures high face picture quality.
Perimeter Protection
With embedded deep learning based target detection and classification algorithms, the camera carries out the duty of perimeter protection, monitoring the actions of line crossing, intrusion, region entrance, and region exiting. The algorithms greatly filter out mistaken alarms caused by interference of leaves, lights, animals, flags, etc.
Multi-Target Recognition
The camera detects and captures faces, human bodies, and vehicles in specified regions and outputs features such as age, top color, and vehicle type.
Features:
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to 140 dB WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
- Anti-IR reflection bubble guarantees image quality
| Specification (iDS-2CD7546G0-IZHSY 2.8–12 mm) | |
| Camera | |
| Maximum Resolution | 2560 × 1440 |
| Minimum Illumination | Color: 0.0005 lux @ (¦/1.2, AGC on); B/W: 0.0001 lux @ (¦/1.2, AGC on), 0 lux with IR Color: 0.0022 lux @ (¦/2.5, AGC on); B/W: 0.00044 lux @ (¦/2.5, AGC on), 0 lux with IR |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Day/Night | IR cut filter, blue glass module to reduce ghost phenomenon |
| Shutter Speed | 1 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens | |
| Focal Length and FOV | 2.8 mm to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48° |
| Focus | Auto, semi-auto, manual |
| Iris Type | P-Iris |
| Aperture | ¦/1.2 to ¦/2.5 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | 98 ft (30 m) |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280× 720) 60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280× 720) |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Sub-Stream | 50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Fifth Stream | 50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Baseline Profile/Main Profile/High Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream |
| Target Cropping | Yes |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3 |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1x authentication (EAP-TLS, EAP- LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR); together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge |
| iDS-2CD7546G0-IZHSY 2.8–12 mm | |
| Image | |
| Wide Dynamic Range (WDR) | 140 dB |
| Target Cropping | Yes |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or Web browser |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger |
| Defog | Yes |
| Image Enhancement | BLC, HLC, Defog, Digital DNR |
| Privacy Mask | 8 programmable polygon privacy masks, mask color or mosaic configurable |
| Picture Overlay | Logo picture can be overlaid on video in 128 × 128 24-bit bmp format |
| Interface | |
| Reset Key | Yes |
| Audio | 1 input (line in), 1 output (line out), 3.5 mm connector, 2 built-in microphones |
| Alarm | 1 input, 1 output (maximum 24 VDC, 1 A) |
| Ethernet Interface | 1 RJ-45 10 M/100 M/1000 M self-adaptive Ethernet port |
| Video Output | 1 Vp-p composite output (75Ω/CVBS) (only for debugging) |
| On-Board Storage | Built-in memory card slot, supports microSD/SDHC/SDXC slot, up to 256 GB |
| RS-485 | 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Power Output | 12 VDC, maximum 100 mA |
| Heater | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video qualitydiagnosis, vibration detection |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception dettection, scene change detection, defocus detection |
| Deep Learning Function | |
| Face Capture | Detects up to 40 faces simultaneously; supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°; uploads face with background and close-up face pictures |
| Multi-Target Detection | Supports simultaneous detection and capture of human body, face, and vehicle; 7 face features, 13 human body features, and 2 vehicle features |
| Face Verification | Up to 10 face libraries. 150,000 faces per library. 150,000 faces in total. Supports face library encryption |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting, Support alarm triggering by specified target types (human and vehicle) |
| General | |
| Package Dimension | 251 mm × 215 mm × 189 mm (9.9" × 8.5" × 7.4") |
| General Function | Heartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Storage Conditions | -30° to 60° C (-22° to 140° F), humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40° to 60° C (-40° to 140° F), humidity 95% or less (non-condensing) |
| Power Consumption and Current | 12 VDC ±20%, three-core terminal block, 1.23 A, maximum 14.7 W; 24 VAC ±20%, three-core terminal block, 0.91 A, maximum 13.7 W; PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.27 A to 0.36A, maximum 15.0 W |
| Camera Weight | Approximately 1565 g (3.45 lb) |
| With Package Weight | Approximately 2295 g (5.06 lb) |
| Camera Dimensions | Ø162 mm × 141.8 mm (Ø6.4" × 5.6") |
| Approvals | |
| Other | PVC FREE |
| Automotive and Railway | EN50121-4 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+ A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252 (Part 1):2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU);WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Electrical Safety Protection | IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
