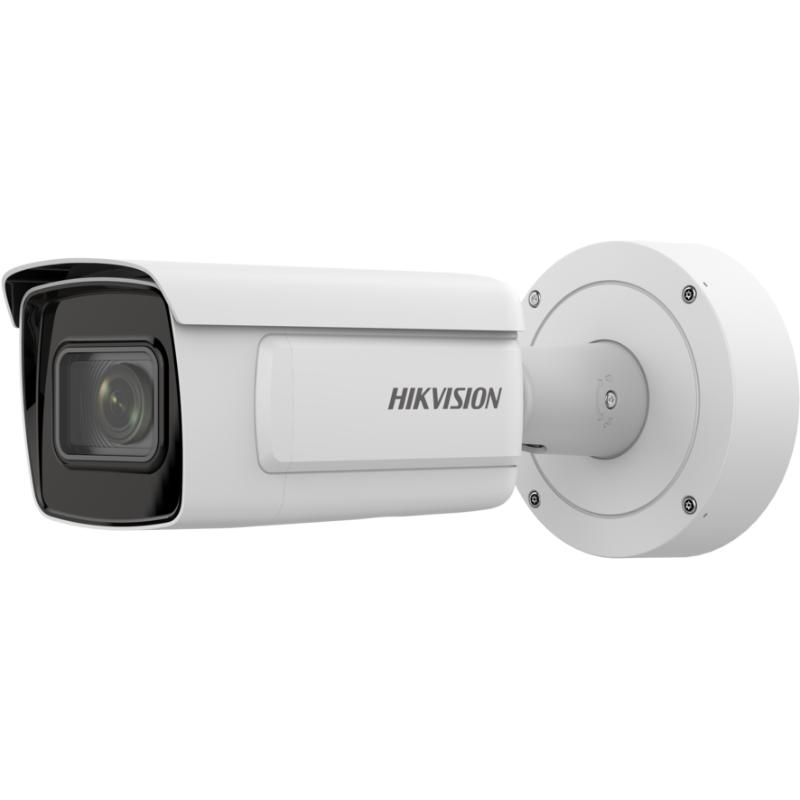

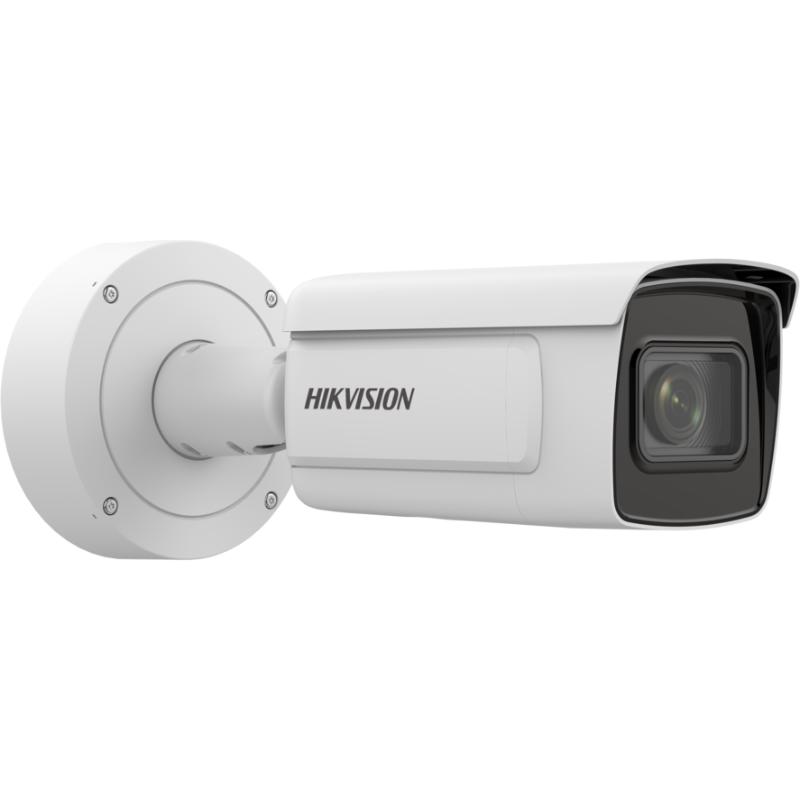

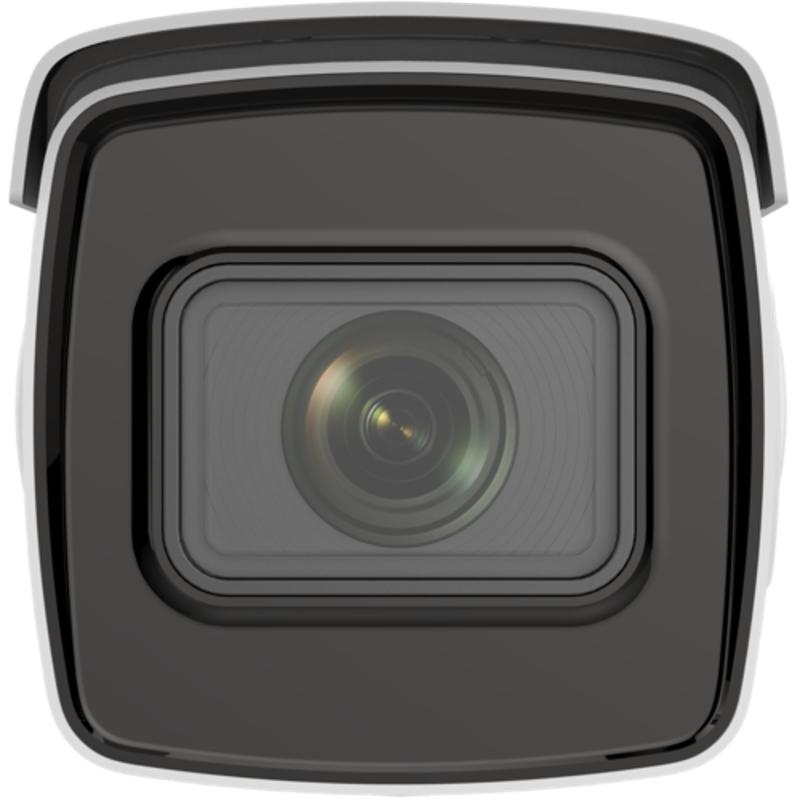

Hikvision - iDS-2CD7A46G0-IZHSY 8-32mm - 4MP DeepinView Moto Varifocal Bullet Camera
Part number:
iDS-2CD7A46G0-IZHSY 8-32mm
Price:
Face Targeting
The camera determines the best shot of a target face through detecting,tracking, capturing, grading, and selecting. The camera captures the face and outputs the features such as gender, age, and expression. The camera uses a face exposure function to dynamically adjust the face area exposure of captures and ensures high face picture quality.
Perimeter Protection
With embedded deep learning based target detection and classification algorithms, the camera provides perimeter protection, monitoring line crossing, intrusion, region entrance, and region exiting. The algorithms greatly filter out mistaken alarms caused by the interference of leaves, lights, animals, flags, etc.
Multi-Target Recognition
With the embedded deep learning algorithms, the camera detects and captures the faces, human bodies, and vehicles in the specified region and outputs the features such as gender, age, top color, and vehicle type.
Features:
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to 140 dB WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
| Specification | |
| Camera | |
| Maximum Resolution | 2560 × 1440 |
| Minimum Illumination | Color: 0.0005 lux @ (¦/1.2, AGC on); B/W: 0.0001 lux @ (¦/1.2, AGC on), 0 lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Day/Night | IR cut filter, blue glass module to reduce ghost phenomenon |
| Lens | |
| Focal Length and FOV | 2.8 mm to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48° |
| Focus | Auto, semi-auto, manual |
| Iris Type | P-Iris |
| Aperture | 2.8 to 12 mm: ¦/1.2 to ¦/2.5 |
| Illuminator | |
| IR Wavelength | 850 nm |
| Supplement Light Type | IR |
| Supplement Light Range | 164 ft (50 m) |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280× 720) 60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280× 720) |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Sub-Stream | 50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Baseline Profile/Main Profile/High Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream |
| Target Cropping | Yes |
| Fifth Stream | 50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3 |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1x authentication (EAP-TLS, EAP- LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR); together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge |
| iDS-2CD7A46G0-IZHSY 2.8–12 mm | |
| Image | |
| Wide Dynamic Range (WDR) | 140 dB |
| Target Cropping | Yes |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or Web browser |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger |
| Defog | Yes |
| Image Enhancement | BLC, HLC, Defog, Digital DNR |
| Privacy Mask | 8 programmable polygon privacy masks, mask color or mosaic configurable |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24-bit bmp format |
| Interface | |
| Ethernet Interface | 1 RJ-45 10 M/100 M/1000 M self-adaptive Ethernet port |
| Audio | 1 input (line in), 1 output (line out), 3.5 mm connector |
| Alarm | 2 input, 2 outputs (maximum 24 VDC, 1 A) |
| Reset Key | Yes |
| Power Output | 12 VDC, maximum 100 mA |
| Heater | Yes |
| RS-485 | 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Video Output | 1 Vp-p Composite Output (75 Ω/CVBS) (only for debugging) |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC slot, up to 256 GB |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video qualitydiagnosis, vibration detection |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception dettection, scene change detection, defocus detection |
| Deep Learning Function | |
| Face Capture | Detects up to 40 faces simultaneously; supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°; uploads face with background and closed-up face pictures |
| Multi-Target Detection | Supports simultaneous detection and capture of human body, face and vehicle; 7 face features, 13 human body features, and 2 vehicle features |
| Face Comparison | Up to 10 face libraries (150,000 faces for each library). 150,000 faces in total. Supports face library encryption |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle) |
| General | |
| Camera Dimensions | Ø140 × 351 mm (Ø5.5″ × 13.8″) |
| Package Dimensions | 405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1") |
| Storage Conditions | -30° to 60° C (-22° to 140° F), humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40° to 60° C (-40° to 140° F), humidity 95% or less (non-condensing) |
| Power Consumption and Current | 12 VDC ±20%, three-core terminal block, 1.19 A, maximum 14.28 W PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295A, maximum 16.8 W |
| General Function | Heartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Camera Weight | Approximately 1950 g (4.2 lb) |
| With Package Weight | Approximately 3070 g (6.7 lb) |
| Approvals | |
| Electrical Safety Protection | IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
| Anti-Corrosion Protection | NEMA 4X(NEMA 250-2018) |
| Automotive and Railway | EN50121-4 |
| Other | PVC FREE |
| Safety | UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1:2005);LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU);WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+ A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015) |
