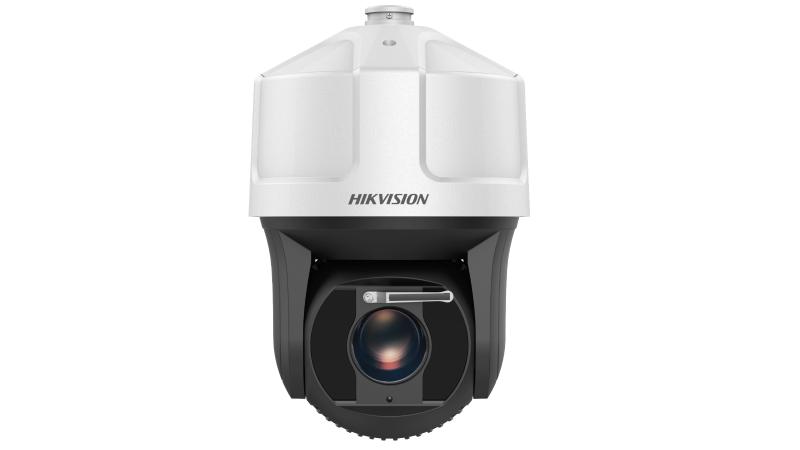

Hikvision - iDS-2VS435-F836-EY - 4K DeepinView Multi-sensor Bullet Camera
Part number:
iDS-2VS435-F836-EY
Price:
Hikvision iDS-2VS435-F836-EY 4 MP 36× Network IR Traffic PTZ Camera is able to capture high quality colored images in dim light environment. With the 36× optical zoom lens, the camera offers more details over expansive areas. The network IR traffic PTZ camera features complete traffic violation enforcement functions. Detection, capturing, storage and transmission of traffic violation events are supported. This series of PTZ camera is applied to perform multiple traffic violation detections.
Features:
- Up to 2560 × 1440 resolution
- Min. illumination: Color: 0.002 Lux @(F1.5, AGC ON), B/W: 0.0002 Lux @(F1.5, AGC ON), 0 Lux with IR
- 36 × optical zoom, 16 × digital zoom
- 120dB WDR, 3D DNR, HLC, BLC, EIS, defog
- Up to 200 m IR distance, Smart IR
- H.265+/H.265 video compression
- Multiple violations supported: illegal parking detection, reverse driving detection, over lane line, detection, illegal lane change detection, vehicle on, non-motor vehicle lane, U-turning detection
- IP67
- Anti-corrosion: NEMA 4X
| Specification | |
| Camera Module | |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Min. Illumination | Color: 0.002 Lux @(F1.5, AGC ON); B/W: 0.0002 Lux @(F1.5, AGC ON); 0 Lux with IR |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain | Auto/Manual |
| Shutter Time | 1 to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16 × |
| Privacy Mask | 24 programmable privacy masks, mask color configurable |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB WDR |
| Lens | |
| Focal Length | 5.7 to 205.2 mm, 36 × optical zoom |
| Zoom Speed | Approx. 4.4 s (optical lens, wide-tele) |
| Field of View | Horizontal field of view: 59.8° to 2.0° (wide-tele) Vertical field of view: 33.6° to 1.1° (wide-tele) Diagonal field of view: 68.6° to 2.3° (wide-tele) |
| Working Distance | 10 to 1500 mm (wide-tele) |
| Aperture Range | F1.5 to F4.5 |
| Illuminator | |
| IR Distance | Up to 200 m |
| Smart IR | Yes |
| PTZ | |
| Movement Range (Pan) | 360°, endless |
| Pan Speed | Configurable, from 0.1°/s to 210°/s. Preset speed: 280°/s |
| Movement Range (Tilt) | -20° to 90°, autoflip |
| Tilt Speed | Configurable, from 0.1°/s to 150°/s. Preset speed: 250°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| 3D Positioning | Yes |
| PTZ Position Display | ON/OFF |
| Preset Freezing | Yes |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| Compression Standard | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline profile/main profile/high profile |
| H.264+ | Yes |
| H.265 Type | Main profile |
| H.265+ | Yes |
| Video Bitrate | 32 Kbps to 16384 Kbps |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2) |
| SVC | Yes |
| Smart Features | |
| Basic Event | Motion detection, video tampering detection, alarm input, alarm output, exception (HDD full, HDD error, illegal login, network disconnected, IP address conflict) |
| Smart Event | Audio exception detection |
| Traffic Violation Detection | Illegal parking detection, reverse driving detection, over lane line detection, illegal lane change detection, vehicle on non-motor vehicle lane, U-turning detection |
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Smart Record | ANR (Automatic Network Replenishment) |
| Region of Interest | Main stream, sub-stream, and third stream respectively support 8 fixed areas. |
| Image | |
| Max. Resolution | 2560 × 1440 |
| Main Stream | 50Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Image Enhancement | BLC, HLC, defog, 3D DNR, EIS, regional exposure, regional focus |
| Network | |
| Network Storage | Built-in memory card slot, support microSD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| API | Onvif (profile S, profile G), SDK, ISAPI |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels, administrator, operator and user |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Terminal Server | iDS-TP50-12DT(4T) |
| Web Browser | IE8+, Chrome 31-44, Firefox 30-51, Safari 8.0-11 |
| Interface | |
| Audio | 1-ch audio input, 2.0 to 2.4Vp-p, 1k Ohm ± 10% 1-ch audio output , line level, impedance: 600Ω |
| Alarm | 7-ch alarm input/2-ch alarm output |
| Network Interface | 1 RJ45 10 M/100 M Ethernet interface |
| RS-485 | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Video Out | 1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC connector |
| General | |
| Power | 24 VAC, max. 60 W, including max. 18 W for IR and max. 6 W for heater Hi-PoE, max. 50 W, including max. 18 W for IR and max. 6 W for heater |
| Working Environment | Temperature: -40°C to 70°C (-40°F to 158°F), humidity: ≤ 95% |
| Protection Level | IP67, NEMA 4X anti-corrosion |
| Material | ADC12 |
| Dimension | Φ267 mm × 410 mm (Φ10.51" × 16.14") |
| Weight | Approx. 8 kg (17.64 lb.) |
