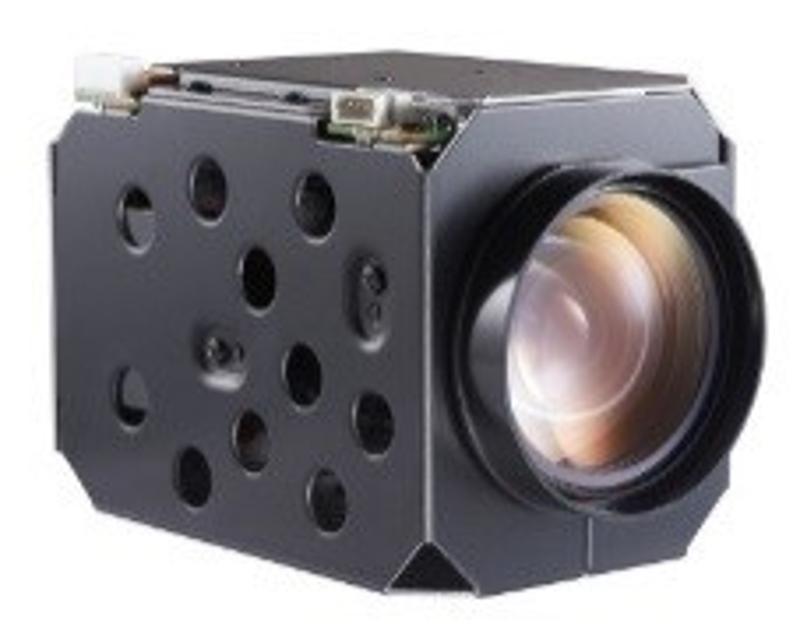

Hikvision - iDS-2ZMN2507N-JKB - Network Zoom Camera Module
Part number:
iDS-2ZMN2507N-JKB
Price:
Hikvision iDS-2ZMN2507N 2 MP 25 × Network Zoom Camera Module adopts 1/2.8" progressive scan CMOS chip. With the 25 × optical zoom lens, the camera module offers more details over expansive areas. This series of camera modules can be used for different types of PTZ cameras and positioning systems.
Features:
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080 resolution
- 25 × optical zoom, focal length 4.8 mm to 120 mm
- Min. illumination: Color: 0.05 Lux @ (F1.6, AGC ON)
- IR cut filter with auto switch
- Smart events: intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
- Face capture
- Quick and accurate focus
- 120 dB WDR, 3D DNR
- Efficient H.265 compression technology
- Multiple interfaces for extended functionality
- Network output
- Small size and low power consumption
- Easy to connect to PTZ cameras and positioning systems
- Seamless access to mainstream platforms and other network devices
| Specification | |
| Camera Module | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Min. Illumination | Color: 0.05 Lux @ (F1.6, AGC ON); B/W: 0.01 Lux @ (F1.6, AGC ON) |
| Resolution and Frame Rate | Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 3 52 × 240) |
| Video Compression | H.264/H.265 |
| Audio Compression | G.722.1, G.711alaw, G.711ulaw, MP2L2, G.726, PCM |
| White Balance | auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB |
| Gain Control | Auto/Manual |
| SNR | >52 dB |
| 3D DNR | yes |
| BLC | yes |
| Regional Focus | yes |
| Shutter | 1/1 s to 1/30,000 s |
| Day & Night | Auto/Color/BW/Triggered by Alarm Input/Scheduled-Switch |
| Digital Zoom | 12 × |
| Privacy Mask | up to 8 masks |
| Focus | auto, semi-auto, manual |
| Regional Exposure | yes |
| Day/Night Switch | ICR |
| Video Bit Rate | 32 kbps to 16384 kbps |
| Heartbeat | yes |
| Exposure Mode | auto, iris priority, shutter priority, manual |
| Lens | |
| Focal Length | 4.8 mm to 120 mm, 25 × optical |
| Zoom Speed | Approx. 3.6 s (Optical, Wide-Tele) |
| Aperture | F1.6 to F3.5 |
| Function | |
| Image Enhancement | 120 dB WDR, HLC, BLC, EIS |
| Smart Encoding | low bit rate, ROI |
| Exception Detection | illegal login |
| Power-off Memory | yes |
| Smart Detection | intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Face Capture | yes |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, Bonjour |
| API | Open-ended API, ONVIF, PSIA, CGI, Hikvision SDK, Third-party management platform, ISUP, Hik-Connect |
| Web Browser | IE 10-11, Chrome 57+, Firefox 52+, Safari 12+ |
| Simultaneous Live View | Up to 20 channels |
| User | Up to 32 users. 3 levels: Administrator, Operator and User |
| Security Measures | Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access |
| Interface | |
| Power Interface | 12 VDC ± 10% |
| Communication Interface | 10 M/100 M Ethernet interface |
| Audio I/O | 1 audio input, 1 audio output |
| Alarm I/O | 1 alarm input, 1 alarm output |
| Video Output | no |
| SDI Output | no |
| RS-485 | yes |
| On-board Storage | Micro SD/Micro SDHC/Micro SDXC card, up to 256 GB |
| Interface | 36pin FFC (including network interface, RS485, RS232, SDHC, alarm in/out, line in/out, power supply) |
| Communication | RS232 interface, HIKVISION protocol, RS485 interface, Pelco protocol |
| General | |
| Power Consumption | Static: 5 W, Dynamic: 7 W |
| Operating Conditions | Temperature: -10 °C to 60 °C (14°F to 140°F) Humidity: ≤90% |
| Dimensions | 50 mm × 60 mm × 107 mm (1.97" × 2.36" × 4.21") |
| Weight | Approx. 281 g (0.62 lb.) |
| Lens | |
| FOV | Horizontal field of view: 57.6° to 2.5°, vertical field of view: 34.4° to 1.4°, diagonal field of view: 64.5° to 2.9° |
