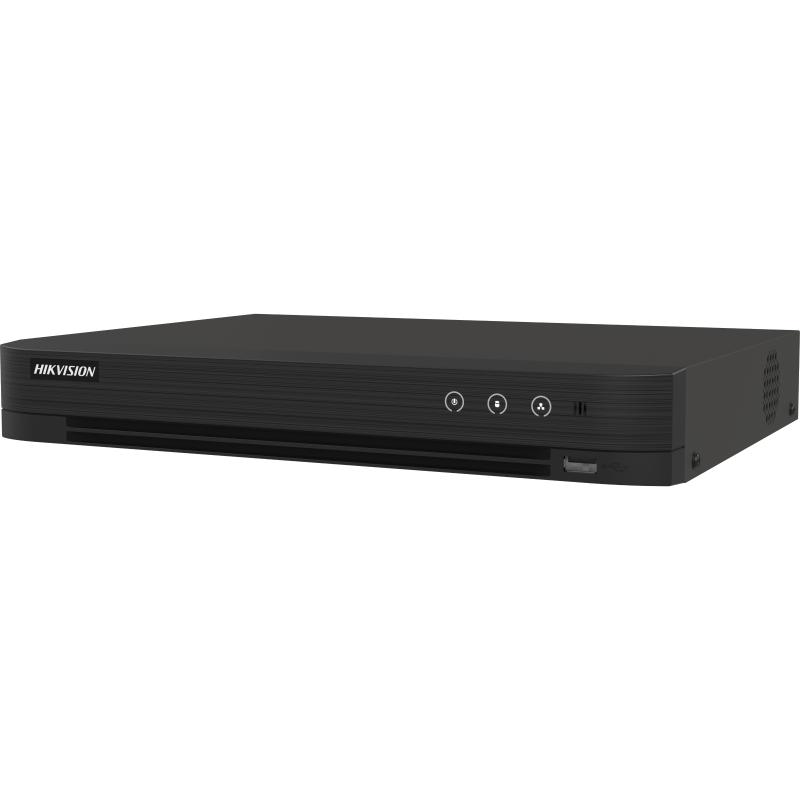

Hikvision - iDS-7204HUHI-M1/S-1TB - 4-ch 5 MP 1U H.265 AcuSense DVR - 1TB
Part number:
iDS-7204HUHI-M1/S-1TB
Price:
Compression and Recording
H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
Recording at up to 8 MP resolution
Storage and Playback
Smart search for efficient playback
Smart Function
Deep learning-based motion detection, and perimeter protection (line crossing and intrusion detection)
Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
Network & Ethernet Access
Compatible with major Wi-Fi dongle products in the market
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
Output bandwidth limit configurable
Features:
- 4 channels and 1 HDD 1U AcuSense DVR
- False alarm reduction by human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding abilty up to 8 MP lite @ 15 fps, 5 MP@ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 8 network cameras can be connected
| Specification | ||
| Motion Detection 2.0 | ||
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; | |
| Perimeter Protection | ||
| Human/Vehicle Analysis | Up to 4-ch | |
| Facial Detection | ||
| Facial Detection and Capture | Face picture detection, face picture search | |
| Recording | ||
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Encoding Resolution | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF | |
| Frame Rate | Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) | |
| Video Bitrate | 32 Kbps to 10 Mbps | |
| Dual-stream | Support | |
| Stream Type | Video, Video & Audio | |
| Audio Compression | G.711u | |
| Audio Bitrate | 64 Kbps | |
| Video and Audio | ||
| IP Video Input | 2-ch (up to 6-ch) Up to 8 MP resolution Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Analog Video Input | 4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| HDMI Output | HDMI: 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output | |
| CVBS Input | PAL/NTSC | |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
| Synchronous playback | 4-ch | |
| HDTVI Input | 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps | |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps | |
| HDCVI Input | 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps | |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) | |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
| Network | ||
| Total Bandwidth | 96Mbps | |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Remote Connection | 32 | |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface | |
| Auxiliary Interface | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 10 TB capacity for each disk | |
| Serial Interface | RS-485 (half-duplex) | |
| USB Interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 | |
| Alarm In/Out | N/A | |
| General | ||
| Power Supply | 12 VDC | |
| Consumption | ≤ 10 W | |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) | |
| Working Humidity | 10% to 90% | |
| Dimension (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
| Weight | ≤ 1.16 kg (2.6 lb) | |
