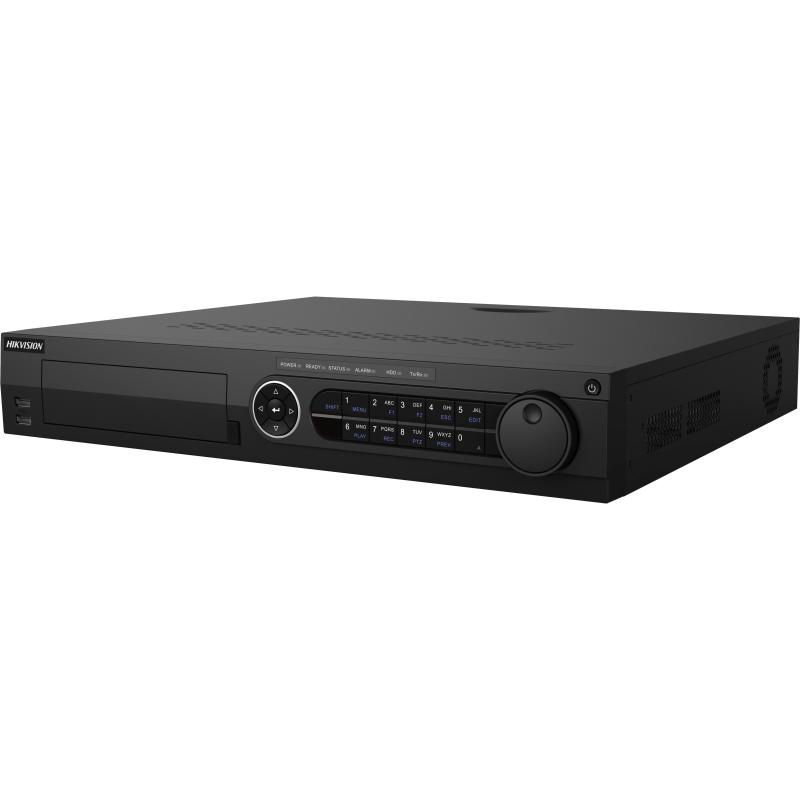

HIKVISION - iDS-7316HQHI-M4/S-4TB - 16-ch 1080P AcuSense DVR 4TB
Part number:
iDS-7316HQHI-M4/S-4TB
Price:
16-ch 1080P 1.5U H.265 AcuSense DVR, 4TB
Features:
- Deep learning-based perimeter protection
- Deep learning-based motion detection 2.0 for all analog channels
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 24-ch IP camera inputs and 4 SATA interfaces
- Encoding ability up to 3K/5MP Lite@12fps
- HDTVI/AHD/CVI/CVBS/IP video inputs
- POS triggered recording and POS information overlay
| Specification | |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 4-ch, for channel 1/2/3/4 only |
| Video and Audio | |
| IP Video Input | 8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps |
| AHD Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, independent) |
| Synchronous Playback | 16-ch |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | When 1080p Lite mode is not enabled: 3K lite/4 MP Lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF |
| Frame Rate | Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps; 4 MP lite@15fps/1080p Lite@20fps; 720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps; 4 MP lite@15fps/1080p Lite@20fps; 720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite@15fps/1080p Lite@25fps(P)/30fps(N); 720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps; 4 MP Lite@15fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps(N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Dual-stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Total Bandwidth | 240 Mbps |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP |
| Network Interface | 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Auxiliary Interface | |
| Serial Interface | RS-232, RS-485 (full-duplex), Keyboard |
| SATA | 4 SATA interfaces |
| eSATA | 1 eSATA interface |
| Capacity | Up to 12 TB capacity for each disk |
| USB Interface | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 16/4 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 55 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 440 × 399 × 72 mm (17.3 × 15.7 × 2.8 inch) |
| Weight | ≤ 5 kg (without HDD, 11.0 lb) |
