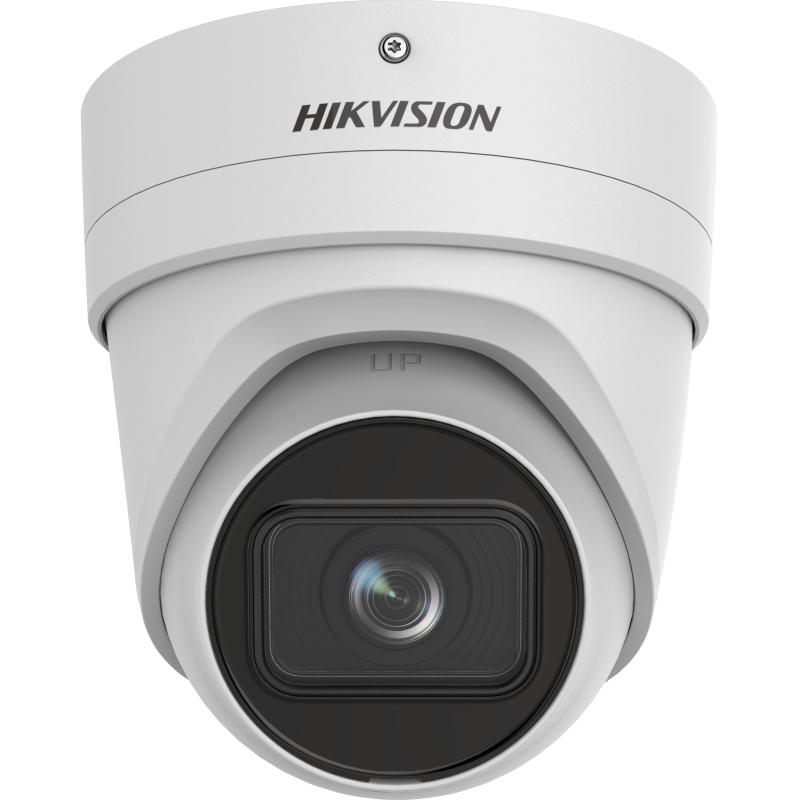

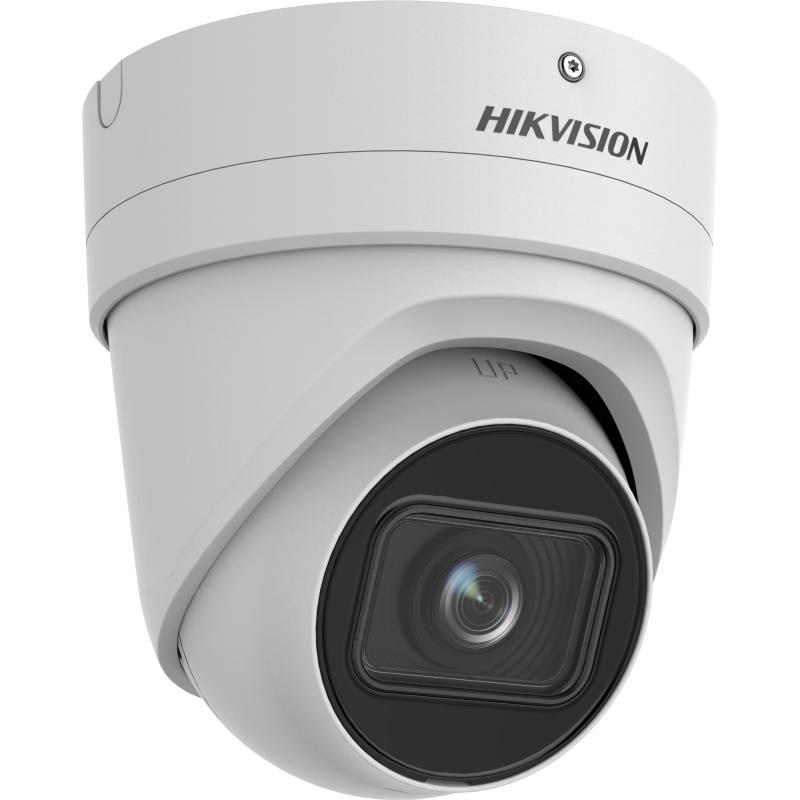

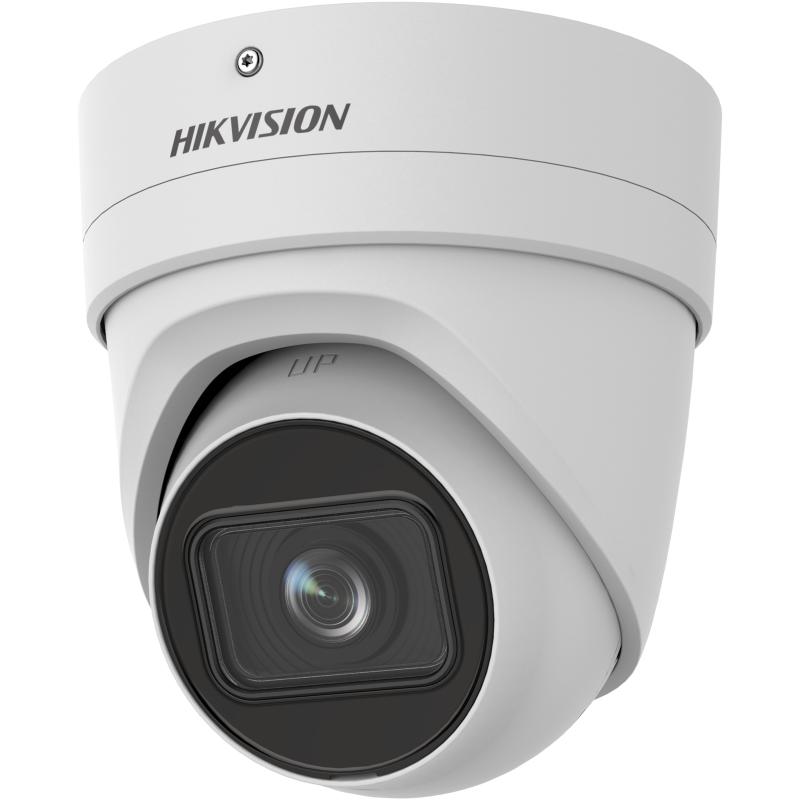

Hikvision - PCI-T15Z2S - 5 MP Acusense Motorized Varifocal Turret Network Camera
Part number:
PCI-T15Z2S
Price:
5 MP Acusense Motorized Varifocal Turret Network Camera
Features:
- High quality imaging with 5 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP66) and vandal-resistant (IK10)
- Audio and alarm interface available
- 3D DNR technology delivers clean and sharp images
| Specification | |
| Camera | |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Time | 1/3 s to 1/100, 000 s |
| Day & Night | IR cut filter |
| Max. Resolution | 2592 × 1944 |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Varifocal lens, motorized lens, 2.7 to 13.5 mm |
| Focal Length & FOV | 2.7 to 13.5 mm, horizontal FOV 103° to 32°, vertical FOV 73° to 24°, diagonal FOV 142° to 40° |
| Lens Mount | Ø14 |
| Iris Type | Auto-iris |
| Aperture | F1.4 |
| DORI | |
| DORI | Wide: D: 64 m O: 25 m R: 12 m I: 6 m, Tele: D: 187 m O: 74 m R: 37 m I: 18 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| 60 Hz: 24 fps (2592 × 1944) | |
| 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) | |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) |
| 60 Hz: 30 fps (640 × 480, 640 × 360) | |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | |
| Third stream is supported under certain settings. | |
| Fourth Stream | 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) |
| 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) | |
| Fourth stream is supported under certain settings. | |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+ |
| Sub-stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264 | |
| Fourth stream: H.265/H.264/MJPEG | |
| Third stream and fourth stream are supported under certain settings. | |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.265 and H.264 encoding |
| Region of Interest (ROI) | 5 fixed regions for main stream and sub-stream |
| Audio | |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Together with high-end Hikvision memory card, memory card encryption and health detection are supported. | |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+ |
| Plug-in free live view: Chrome 57.0+, Firefox 52.0+ | |
| Local service: Chrome 57.0+, Firefox 52.0+ | |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | = 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card, support microSD card, up to 256 GB |
| Audio | 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium |
| 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium | |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Unattended baggage detection, object removal detection, scene change detection, audio exception detection |
| Linkage | Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning, trigger alarm output |
| Deep Learning Function | |
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Support human and vehicle targets classification | |
| General | |
| Power | 12 VDC ± 25%, 0.92 A, max. 11.04 W, two-core terminal block, reverse polarity protection |
| PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W | |
| Dimension | Ø135.8 mm × 145.5 mm (Ø5.4" × 5.8") |
| Package Dimension | 170 mm × 170 mm × 205 mm (6.7" × 6.7" × 8.1") |
| Weight | Approx. 1155 g (2.5 lb.) |
| With Package Weight | Approx. 1540 g (3.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Web Client Language | 33 languages |
| English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian | |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); |
| IC (ICES-003: Issue 6, 2016) | |
| Protection | IP66 (IEC 60529-2013), IK10(IEC 62262:2002) |
