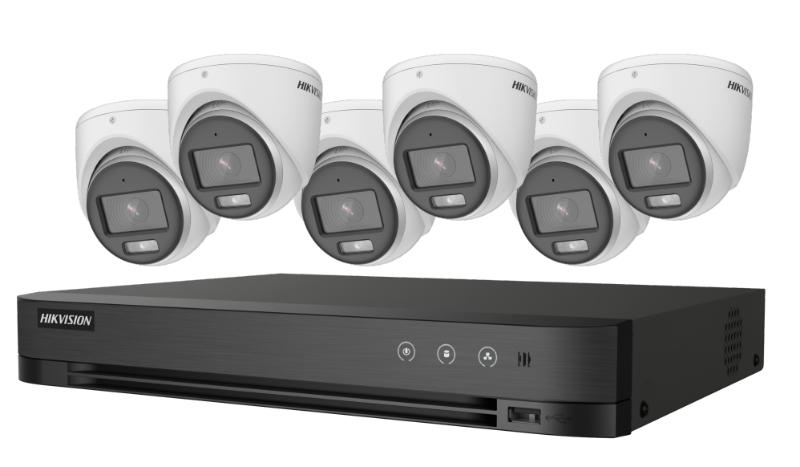

Hikvision - T7208U2TA6C - Turbo HD ColorVu KIT
Part number:
T7208U2TA6C
Price:
Turbo HD ColorVu KIT
Features:
- 5MP 8-ch DVR iDS-7208HUHI-M1/S with 2TB HDD
- 5MP TURBO ColorVu TURRET CAMERAS (6) DS-2CE70KF0T-MFS(2.8mm)
| Specification | |
| Camera | |
| Image Sensor | 5MP CMOS |
| Signal System | PAL/NTSC |
| Resolution | 2960 (H) × 1665 (V) |
| Frame Rate | TVI: 5MP @20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm fixed focal lens |
| Field of View | 2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122° |
| Lens Mount | M12 |
| Light Alarm | Solid Light Alarm (White Light) |
| Day & Night | 24/7 Color Imaging |
| WDR (Wide Dynamic Range) | Digital WDR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Image | |
| White Light | Auto/Off |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT |
| AGC | Yes |
| Day/Night Mode | Color |
| White Balance | Auto/Outdoor/Global/Manual |
| AE (Auto Exposure) Mode | DWDR,BLC,HLC,Global,HLS |
| Noise Reduction | 2D DNR |
| Language | English |
| Function | Brightness,Contrast,Mirror,Defective Pixel Correction,Sharpness,Anti-Banding,Smart Light |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Audio In | Built-in mic |
| General | |
| Operating Conditions | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, *You are recommended to use one power adapter to supply the power for one camera. |
| Consumption | Max. 2.5 W |
| Protection Level | IP67 |
| Material | Metal |
| White Light Range | Up to 20 m |
| Communication | HIKVISION-C |
| Dimension | Φ 85.1 mm × 77.62 mm (Φ 3.35" × 3.05") |
| Weight | Approx. 328 g (0.72 lb.) |
| Model | Model iDS-7204HUHI-M1/S / Model iDS-7208HUHI-M1/S |
| Motion Detection 2.0¹ | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Perimeter Protection¹ | |
| Human/Vehicle Analysis | Up to 4-ch |
| Recording | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Recording - Encoding resolution | Main stream: 8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. / Main stream: 8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video bitrate | 32 Kbps to 10 Mbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Audio compression | G.711u |
| Audio bitrate | 64 Kbps |
| Video and Audio | |
| IP video input² | 2-ch (up to 6-ch) Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps / 4-ch (up to 12-ch) Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps |
| IP camera resolution | Up to 8 MP resolution |
| IP camera compression support | Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog video input | 4-ch / 8-ch |
| BNC interface | BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI input | 8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| AHD input | 5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDCVI input | 5 MP@20 fps , 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| DVR Specification | DVR Specification for T7204U1TA4C and T7208U2TA6C |
| CVBS input | PAL/NTSC |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| HDMI output | 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz / 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video output mode | HDMI/VGA simultaneous output |
| Audio input³ | 1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ) / 1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ) |
| Audio input via coaxial cable | 4-ch via coaxial cable / 8-ch via coaxial cable |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Synchronous playback | 4-ch / 8-ch |
| Network | |
| Remote connections | 32 / 64 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface / 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| Auxiliary interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Serial interface | RS-485 (half-duplex) |
| USB interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 / Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
| Alarm in/out³ | N/A (optional to support) |
| General | |
| Power supply | 12 VDC, 1.5 A / 12 VDC, 2 A |
| Consumption (without HDD) | ≤ 10 W / ≤ 15 W |
| Working temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working humidity | 10% to 90% |
| Dimension (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight (without HDD) | ≤ 1.16 kg (2.6 lb) / ≤ 2 kg (4.4 lb) |
