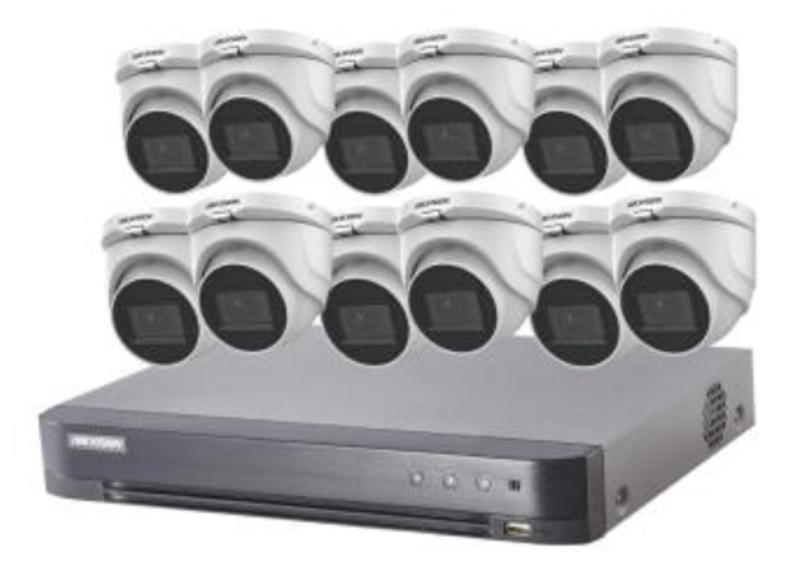

HIKVISION - T7216U4TA12 - 16-ch5MP TurboKit, 12cam+4TB
Part number:
T7216U4TA12
Price:
Turbo HD 5MP 12 Camera KIT
Hikvision T72xxUxTAx(B) Series 5 MP kits are costeffective solutions for value-oriented users. Each kit is supplied with four, six, or twelve network cameras with 5 MP image sensors and a 4-, 8-, or 16- channel DVR in the same box. Kit DVRs are pre-installed with a 1, 2, or 4 TB HDD.
Features:
Cameras
- 5 MP High Performance CMOS
- Up to 2560 x 1944 Resolution
- 2.8 mm Fixed Lens
- EXIR 2.0 with up to 65 ft (20 m) IR Range
- Digital WDR, 3D DNR, BLC
- IP67 Protection
DVR
- Up to 5 MP Resolution Recording
- 4- or 8-ch 6 MP IP Cameras Input (8- or 16-ch if Analog Channels Are Disabled)
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- 4-, 8-, or 16-ch Synchronous Playback
- 1 or 2 SATA Interfaces (10 TB Capacity per HDD)
- Deep Learning-Based Motion Detection 2.0 for All Analog Channels
- Deep Learning-Based Perimeter Protection
| T7204U1TA4(B) | T7208U2TA6(B) | T7216BU4TA12(B) | ||
| CAMERA | ||||
| Camera Specs | ||||
| Camera Model | DS-2CE76H0T-ITMF | |||
| Camera Type | Turret | |||
| Number of Cameras | 4 | 6 | 12 | |
| Image Sensor | 5 MP progressive scan CMOS | |||
| Resolution | 2560 (H) × 1944 (V) | |||
| Minimum Illumination | Color: 0.01 lux @ (¦/1.2, AGC on), 0 lux with IR | |||
| Shutter Speed | 1/30 s to 1/50,000 s | |||
| Lens | 2.8 mm fixed lens | |||
| Horizontal Field of View | 85.5° | |||
| Lens Mount | M12 | |||
| Day/Night | IR cut filter | |||
| Angle Adjustment | Pan: 0° to 360°; tilt: 0° to 75°; rotate: 0° to 360° | |||
| Synchronization | Internal synchronization | |||
| Frame Rate | 5 MP @ 20 fps, 4 MP @ 30 fps, 1080p @ 30 fps | |||
| Menu | ||||
| AGC | Supported | |||
| Day/Night Mode | Auto/color/BW (black and white) | |||
| White Balance | ATW/MWB | |||
| BLC | Supported | |||
| DWDR | Supported | |||
| Language | English | |||
| Functions | Brightness, sharpness, DNR, mirror, smart IR | |||
| Interface | ||||
| TVI Video Output | 1 HD analog output | |||
| Switch Button | TVI/AHD/CVI/CVBS | |||
| General | ||||
| Operating Conditions | -40° to 140° F (-40° to 60° C), humidity: 90% or less (non-condensing) | |||
| Power Supply | 12 VDC ±25% | |||
| Power Consumption | Maximum 4.3 W | |||
| Protection Level | IP67 | |||
| Material | Metal | |||
| IR Range | Up to 65 ft (20 m) | |||
| Communication | Up-the-Coax, protocol: HIKVISION-C (HD-TVI output) | |||
| Dimensions | 3.58" x 3.25" x 2.69" (91 mm x 82.6 mm x 68.3 mm) | |||
| Weight | Approximately 0.77 lbs (350 g) | |||
| DVR Specs | ||||
| DVR Model | iDS-7204HUHI-M1/S | iDS-7208HUHI-M1/S | iDS-7216HUHI-M2/S | |
| HDD | 1 TB | 2 TB | 4 TB | |
| Third-Party Cloud Storage | Supported | |||
| Recording | ||||
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |||
| Encoding Resolution | 8 MP Lite mode enabled: 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF 8 MP Lite mode not enabled: 8 MP Lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF | Main stream: 8 MP @ 8 fps/5 MP @ 12 fps/3K @ 12 fps/4 MP @ 15 fps/3 MP @ 18 fps 1080p/720p/WD1/4CIF/VGA/CIF @ 25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF @ 25 fps (P)/30 fps (N) | ||
| Main Stream Frame Rate | 8 MP Lite mode not enabled | 8 MP @ 8 fps/5 MP @ 12 fps/4 MP @ 15 fps/3 MP @ 18 fps; 1080p/720p/WD1/4CIF/VGA/CIF @ 25 fps (P)/30 fps (N) NOTE: 8 MP @ 8 fps is available only for channel 1 of DS-7204HUI-K1 | ||
| 8 MP Lite mode enabled | 8 MP Lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF @ 15 fps | |||
| Sub-Stream Frame Rate | WD1/4CIF/CIF @ 25 fps (P)/30 fps (N) | |||
| Video Bit Rate | 32 Kbps to 10 Mbps | |||
| Dual Stream | Supported | |||
| Stream Type | Video, Video & Audio | |||
| Audio Compression | G.711u | |||
| Audio Bit Rate | 64 Kbps | |||
| Video and Audio | ||||
| IP Video Input | 4-ch (up to 8-ch) | 8-ch (up to 16-ch) | Enhanced IP Mode Off: 8-ch (up to 24-ch) Enhanced IP Mode On: 16-ch (up to 32-ch), each up to 4 Mbps NOTE: Enhanced IP mode might be conflict with smart events (motion detection 2.0 and perimeter protection) or other functions, see the user manual for details. | |
| Analog Video Input | 4-ch | 8-ch | 16-ch | |
| BNC Interface | (1.0 Vp-p, 75 Ω), supports Hikvision-C connection | |||
| Video and Audio (continued) | |||
| HD-TVI Input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 60 fps, 720p @ 50 fps, 720p @ 30 fps, 720p @ 25 fps | ||
| AHD Input | AHD Input 5 MP, 4 MP, 1080p @ 25 fps, 1080p @ 30 fps, 720p @ 25 fps, 720p @ 30 fps | ||
| HD-CVI Input | 5 MP, 4 MP, 1080p @ 25 fps, 1080p @ 30 fps, 720p @ 25 fps, 720p @ 30 fps | 5 MP @ 20 fps, 4 MP @ 25 fps, 4 MP @30 fps, 1080p @ 25 fps, 1080p @ 30 fps, 720p @ 25 fps, 720p @ 30 fps | |
| CVBS Input | PAL/NTSC | ||
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: NTSC: 704 × 480 | ||
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | ||
| HDMI Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | 8 MP @ 15 fps, 5 MP @ 20 fps, 3K @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 3 MP @18 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 60 fps, 720p @ 50 fps, 720p @ 30 fps, 720p @ 25 fps |
| Video Output Mode | HDMI/VGA simultaneous output | ||
| Audio Input | 4-ch, RCA (2.0 Vp-p, 1K Ω) | 1-ch (up to 16-ch is optional), RCA (2.0 Vp-p, 1K Ω) | |
| Audio Output | 1-ch, RCA (Linear, 1K Ω) | ||
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1K Ω) (using the first audio input) | ||
| Synchronous Playback | 4-ch | 8-ch | 16-ch |
| Smart Functions | Smart search, Deep Learning-based motion detection and perimeter protection (line crossing and intrusion detection) | ||
| VCA Events | Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras | ||
| Motion Detection | |||
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify humans and vehicles, and greatly reduces false alarms caused by objects such as leaves and lights; quick search by object or event type NOTE: Motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enabling one function will cause the other one to be unavailable. | ||
| Perimeter Protection | |||
| Human/Vehicle Analysis | Up to 4-ch NOTE: Motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enabling one function will cause the other one to be unavailable. | ||
| Network | |||
| Remote Connection | 32 | 64 | 128 |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | ||
| Network Interface | 1, RJ-45 10M/100M self-adaptive Ethernet interface | 1, RJ-45 10M/100M/1000M self-adaptive Ethernet interface | |
| Wi-Fi | Connects to Wi-Fi via Wi-Fi dongle through USB interface; compatible with major third-party Wi-Fi dongles | ||
| Auxiliary Interface | |||
| SATA | 1 SATA interface | 2 SATA interfaces | |
| Capacity | Up to 10 TB capacity for each disk | ||
| Serial Interface | RS-485 (half-duplex) | ||
| USB Interface | 2 × USB 2.0 | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 | |
| Alarm I/O | 4/1 | 8/4 | 16/4 |
| General | |||
| Power Supply | 12 VDC | 12 VDC, 5 A | |
| Consumption (without HDD) | ≤10 W | ≤20 W | 19 W |
| Working Temperature | +14° to +131° F (-10° to +55°C) | ||
| Working Humidity | 10% to 90% non-condensing | ||
| Dimensions (W × D × H) | 12.4" × 9.5" × 1.8" (315 mm × 242 mm × 45 mm) | 15.0" × 12.6" × 1.9" (380 mm × 320 mm × 48 mm) | |
| Weight (without HDD) | ≤2.6 lb (≤1.16 kg) | ≤4.4 lb (≤2 kg) | ≤4.6 lb (≤2.1 kg) |
