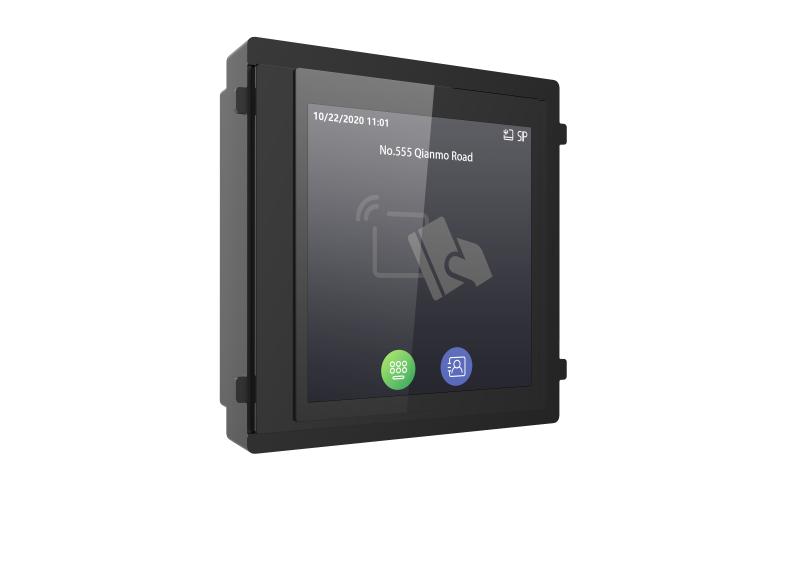

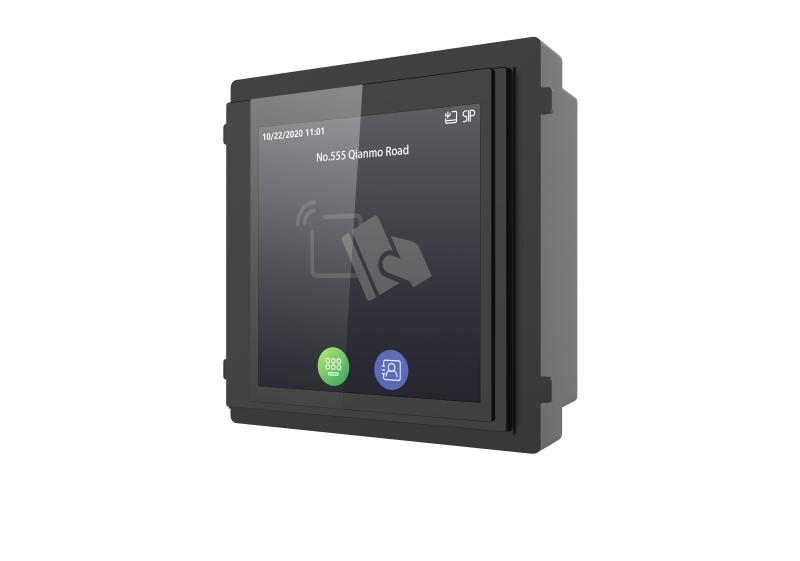

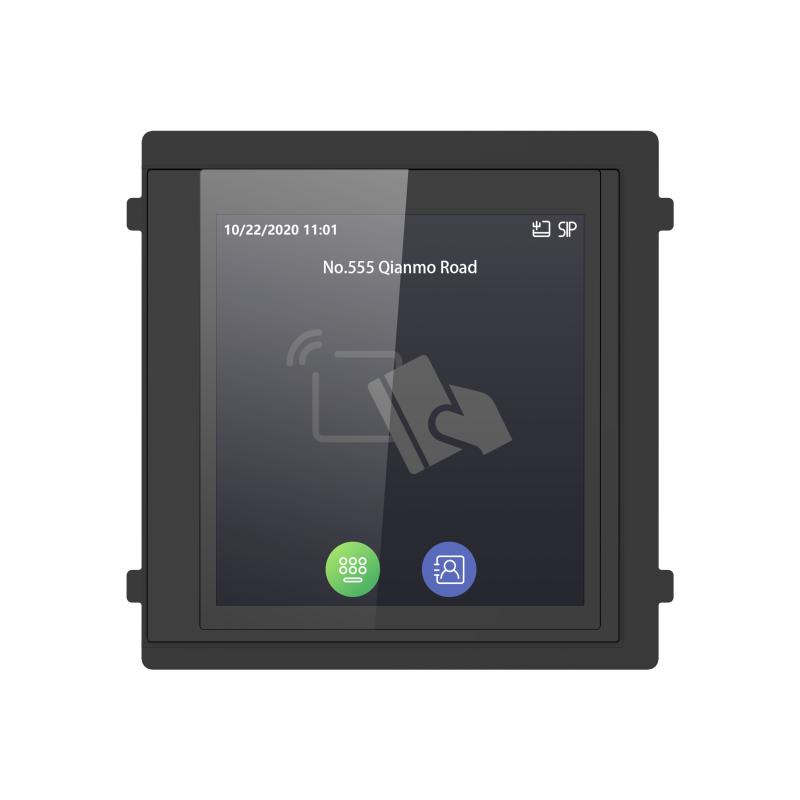

Hikvision - DS-KD-TDM - Intercom Touch Display Module
Part number:
DS-KD-TDM
Price:
Touch Display Module with M1 Card Reader
Features:
- Touch display module with M1 card reader of modular door station
- 4-inch touch screen with rich information display: Dial number, pin code unlock, contact list, advertisement
- Store up to 2000 contacts
- IP65 and IK08 higher protection level
- Support multiple languages
| Category | Specification |
|---|---|
| System Parameters | |
| Operation System | Linux |
| ROM | 32 MB |
| RAM | 128 MB |
| Display Parameters | |
| Screen Size | 4-inch |
| Type | IPS |
| Resolution | 480 × 480 |
| Brightness | Adjustable, Max. 500 cd/m² |
| Audio Parameters | |
| Audio Input | / |
| Audio Compression Standard | / |
| Audio Output | 1 buzzer |
| Audio Quality | / |
| Volume Adjustment | / |
| Loudspeaker Consumption | / |
| Network Parameters | |
| Wireless Network | AP mode |
| Authentication | Card reading |
| Card Reading Frequency | 13.56 MHz |
| Card Reading Distance | 2 cm |
| Card Type | M1 card |
| Device Interfaces | |
| TF Card | Reserved |
| DIP Switch | 8 bits |
| Two-wire Cascading Interface | 2 |
| General | |
| Installation | Flush mounting, surface mounting |
| Protective Level | IP65, IK8 |
| Working Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Working Humidity | 10% to 95% (no-condensing) |
| Dimension (W × H × D) | 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38") |
| Power Supply | 12 VDC, supplied by the main module |
| Power Consumption | ≤ 4 W |
| Language | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish |
