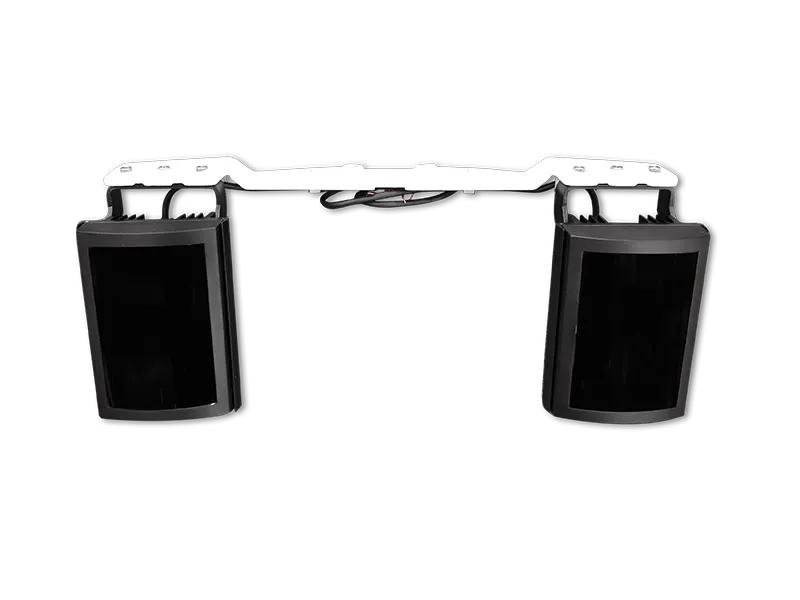

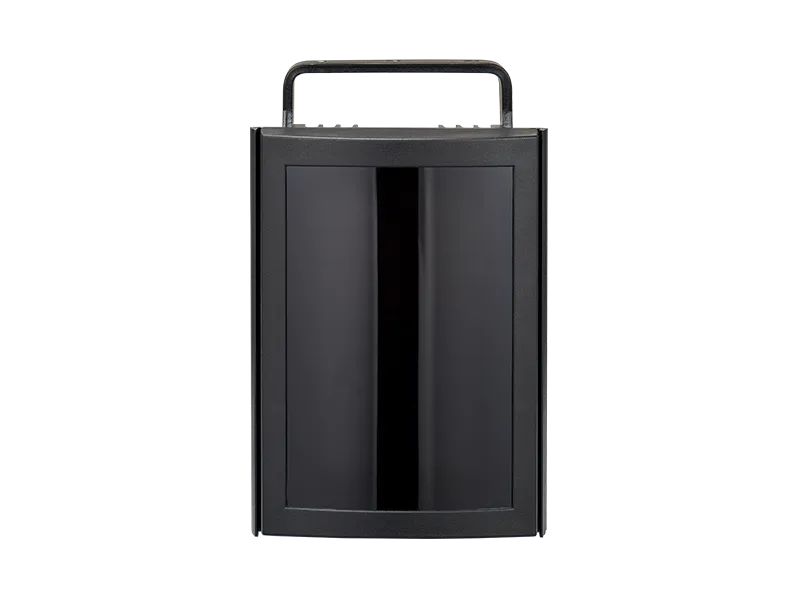

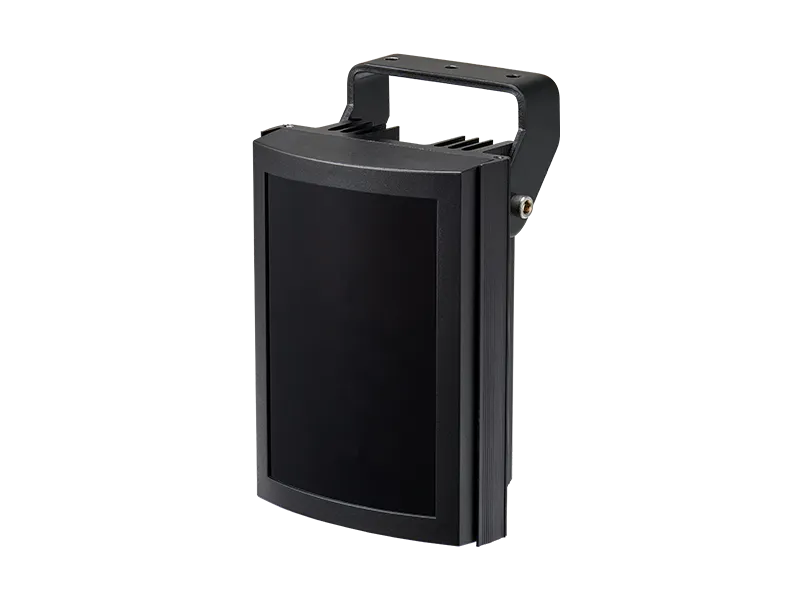

IR emitter up to 200m (656 feet), 25˚ IR angle, 850nm wave length, 24VAC, IP67, -40°C ~ +60°C (-40°F ~ 140°F).
Features:

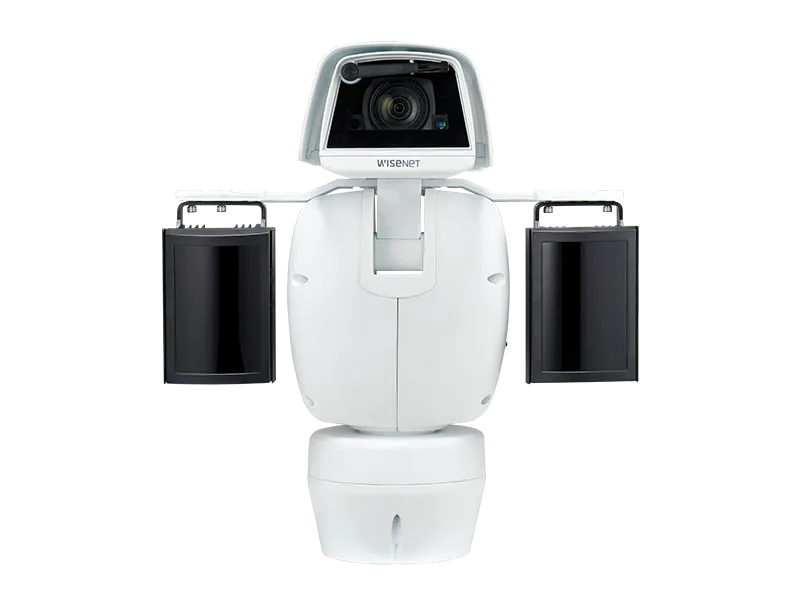

- Compatible IR Illuminator for TNU-6320
- Wavelength : 850nm
- Angle : 25 deg.
- Control via day and night, photocell sensitivity
| OPERATIONAL | |
| LED Type | IR LED |
| Distance Performance | 200m (656.17ft) |
| Number of LED | 9ea |
| Angle | 25° |
| Wavelength | 850nm |
| Control | Via remote control : day and night, photocell sensitivity |
| COMMUNICATION | |
| Between Camera and Illuminator | RS-485 9600bps |
| Illuminator Identification | Fixed address 1 |
| EXTERIOR | |
| Dimensions (WxHxD) | 112.0x 153.2 x 65.2mm (4.41" x 6.03" x 2.57") |
| Weight | 0.9kg (1.98 lb) : 1ea |
| Material | Aluminum + PC Cover |
| ELECTRICAL | |
| Power | 24V AC (±10%) |
| Power Consumption | Max. light : 24 W |
| ENVIRONMENTAL | |
| Operational Temperature | -40°C ~ +60°C (-40°F ~ 140°F) |
| Certification | EMC (FCC, CE, VCCI, RCM, KC) |
| Ingress Protection | IP67 |
