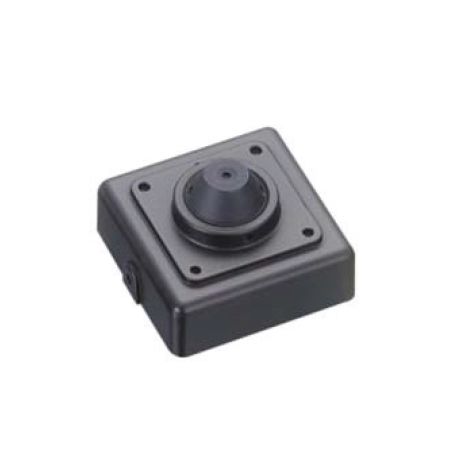

The KPC-V700NUP1 from KT&C is a 750 TVL digital miniature square mini board camera 3.7mm conical pinhole lens, black.
Features:
- 750 TVL Horizontal Resolution
- 1/3” 960H SONY Double Scan SuperHAD CCD II
- Min. Illumination of 0.2 Lux, 0.03 Lux DSS On
- Size 1.2 x 1.2 Inch (30 x 30mm)
- Digital Day & Night
- True Wide Dynamic Range
- 2D DNR / BLC / AWB / AGC
- DC 12 V Power
|
Signal Format |
NTSC |
PAL |
|
Image Sensor |
1/3" 960H SONY Double Scan Super HAD CCD II |
|
|
Scanning System |
2 : 1 Interlace |
|
|
H Resolution. |
750TV Lines |
|
|
Scanning Frequency |
15.734KHz(H), 59.94Hz(V) |
15.625KHz(H), 50Hz(V) |
|
Total Pixels |
1020(H) X 508(V) |
1020(H) X 596(V) |
|
Effective Pixels |
976(H) X 494(V) |
976(H) X 582(V) |
|
Electronic Shutter |
1/60 ~ 1/100,000 sec |
1/50 ~ 1/100,000 sec |
|
Sense up |
Off / Auto |
|
|
S/N Ratio |
More than 50dB (AGC Off, 3DNR On) |
|
|
Min. Illumination |
0.2 Lux (F2.0, DSS Off) / 0.03 Lux (F2.0, DSS On) |
|
|
Sync System |
Internal |
|
|
Gamma |
r= 0.45 |
|
|
Video Output |
1.0 Vp-p Composite (75Ω) |
|
|
OSD |
Built in (Joystick) |
|
|
ATR-EX |
Off / On |
|
|
WDR |
Off / On |
|
|
White Balance |
ATW / PUSH / USER1 / USER2 / MANUAL / PUSH-LOCK |
|
|
3DNR |
Level Adjust |
|
|
Digital Image Stabilizer |
Off / On |
|
|
Defog |
Off / Auto |
|
|
Function |
Flip / Freeze / Brightness / Contrast / Sharpness / Hue / Gain / Digital Zoom / HLC |
|
|
Privacy Masking |
15 Zones (Polygon) |
|
|
Motion Detection |
4 Zones |
|
|
Lens |
Fixed Board, Pinhole, Varifocal Lens |
|
|
Language |
English / Spanish / Russian / Portuguese / German / French / Chinese / Japanese |
|
|
Operating Temperature |
-15°C~50°C (5°F~122°F) |
|
|
Storage Temperature |
-20°C~60°C (-4°F~140°F) |
|
|
Humidity |
Less than 80% |
|
|
Power Consumption |
12VDC (±10%) Max. 150mA |
|
|
Weight |
Approx. 35 g (0.08 lbs) |
|
|
External Control |
UTC, Option: RS485 (PELCO-D) |
|
|
Dimension(mm) |
30(W) x 30(H) |
|
