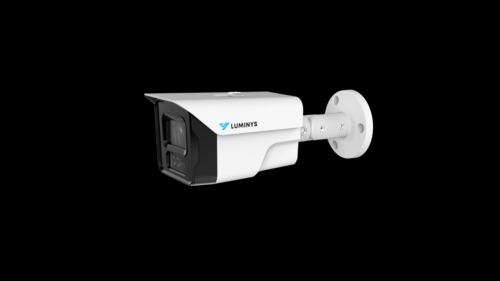

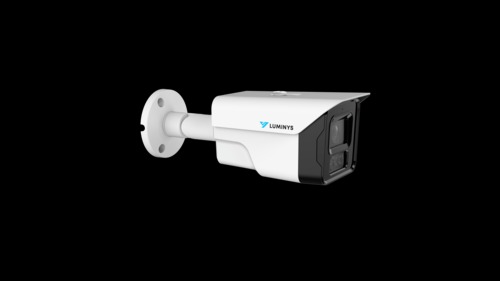

Luminys - N4B-4VA2 - N4 Mainstream Series 4MP LumiNightKing IP Bullet 2.8mm, White-light LEDs
Overview
The N4B-4VA2 is part of Luminys’s N4 Mainstream series of security devices. N4 Mainstream series devices are designed with a suite of advanced LumiTechnologies to meet the needs of today’s evolving security market.
Equipped with LumiNightKing technology, this camera provides flexible and reliable full-color video in near-dark conditions. It supports covert monitoring with no LEDs or 24/7 white-light LEDs for deterrent monitoring. This camera is also designed with LumiPolarPro and LumiDesertPro technologies to withstand extreme environments. It has both 12 VDC and PoE (Power over Ethernet) for flexible installation.
LumiNightKing cameras are built for mission-critical surveillance in challenging environments such as industrial facilities, transportation hubs, night clubs, and outdoor perimeters. Their dual- purpose capability makes the series ideal for security applications that want a discrete camera to preserve the ambiance of a scene and for scenes that need a visible presence from continuous white-light LEDs throughout the night.
LumiNightKing technology provides advanced, versatile low-light performance. Cameras with this technology combine a large pixel size sensor, an advacned AI-ISP, and ultra-wide F1.0 to capture images in near-total darkness without relying on IR or visible white-light LEDs. LumiNightKing cameras also have white-light LEDs that can be programmed to remain on throughoout the night for deterrence and lighting.
Features:
- 4MP Bullet Housing
- 2.8 mm Lens
- AI-ISP
- White-Light LEDs
- Video Content Analytics: Line Crossing,
- Intrusion
- iMD
| Alarm | |
| Event | Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP Conflict, Voltage Detection, Security Warning |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, SNMP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Strorage | FTP, SFTP, NAS, Micro SD Card (Max. 256 GB) |
| Electrical | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | 12 VDC • Maximum: 5.5 W • Normal: 2.0 W PoE • Maximum: 7.2 W • Normal: 3.0 W |
| Construction | |
| Net Weight | 0.6 kg (1.3 lb) |
| Gross Weight | 0.8 kg (1.8 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67 |
| Dimensions (L x W x H) | 220.1 mm x 87.4 mm x 78.8 mm (8.7 in. x 3.4 in. x 3.1 in.) |
| Material | Metal |
| Luminys Series | N4 Series (Mainstream) |
| Image Sensor | 1/1.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 x 1520 |
| Minimum Illumination | Color: 0.0006 lux at F1.0 |
| Number of Illuminators | White Light: Four (4) |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | 45.7 m (150.0 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Installation Angle | Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360° |
| S/N Ratio | > 50 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperature | F1.0 |
| Field of View | Horizontal: 112° Vertical: 60° Diagonal: 134° |
| Close Focus Range | 2.0 m (6.6 ft) |
| DORI Distance | Detect: 57.7 m (189.3 ft) Observe: 23.0 m (75.5 ft) Recognize: 11.4 m (37.4 ft) Identify: 5.6 m (18.4 ft) |
| Video | |
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Two (2) Streams |
| Resolution | 4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Maximum Frame Rate | Main Stream: 4MP at 30 fps Sub Stream 1: D1 at 30 fps |
| Video Bit Rate | H.264: 3 to 6,144 kbps H.265: 3 to 6,144 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Angle | 0°/90°/180°/270° |
| Mirror Image | Supported |
| Privacy Masking | Four (4) Zones |
| Analytics | |
| Video Content Analytics | Line Crossing, Intrusion, |
