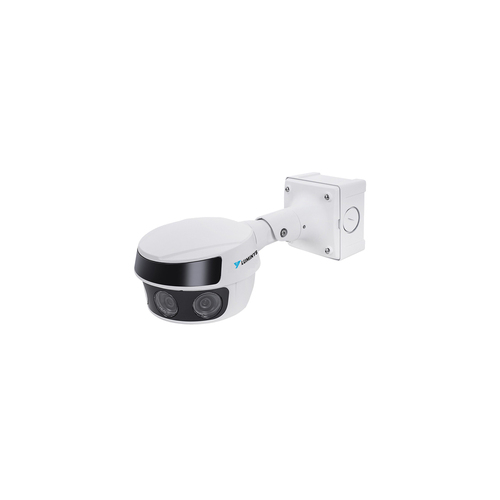

Luminys - N9P-18RB3 - N9 Specialty Series 4 x 5MP Stitched Multi-sensor IP Camera with Fixed Lens, IR
Part number:
N9P-18RB3
Price:
The N9P-18RB3 is part of Luminys’s N9 Specialty series. N9 series devices are designed to improve operations and surpass today’s highest security standards, providing increased situational awareness and comprehensive security.
Intelligent Motion Detection (iMD) technology accurately detects and filters humans and vehicle in a monitoring area. Using an advanced algorithm, iMD can accurately detect humans and vehicles while reducing false alarms caused by other objects, animals, or lighting. Users can be alerted to iMD events for timely security. iMD events can be saved for future reference and easily searched for at a later time for forensic analysis and to assist in investigations.
Key Features:
- 18MP Panoramic Housing
- 3.5 mm Fixed Lens
- Intelligent Motion Detection (iMD)
- 4 × 5MP Fixed Lens
- 3.5 mm Lens
- 98 ft IR Range
- Built-in Mic + Audio I/O + Alarm I/O
- MicroSD Card Support (1TB Max)
- iMD
Certifications and Compliance:
- NDAA Compliant
- FCC
- UL
| Specification | |
| Model | Luminys Series N9 Series (Speciality) |
| Image Sensor | 1/2.8-in. Progressive CMOS |
| Maximum Resolution | 6912 × 2624 |
| Minimum Illumination | Color: 0.055 Lux @ F2.0 | B/W: 0.005 Lux @ F2.0 | 0 Lux (IR On) |
| Illuminators | Four (4) IR LEDs |
| Illuminator Control | Automatic, Manual |
| Max Illumination Distance | Up to 30.0 m (98.4 ft) |
| Shutter Speed | Auto/Manual, 1/30 s to 1/32,000 s |
| Installation Angle | Pan: ±90° ; Tilt: 0°–90° |
| S/N Ratio | > 54 dB |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 3.5 mm |
| Max Aperture | F2.0 |
| Field of View | H: 180° ; V: 62.5° ; D: 180° |
| Close Focus Range | 3.0 m (9.8 ft) |
| DORI Distance | Detect: 73.3 m ; Observe: 29.3 m ; Recognize: 14.7 m ; Identify: 7.3 m |
| Compression | H.265, H.264, MJPEG (Sub Stream Only) |
| Streams | 4 |
| Resolutions | 6912×2624, 4416×1600, 2304×832 |
| Max Frame Rate | VCA On: 6912×2624 @ 20 FPS ; VCA Off: 6912×2624 @ 30 FPS |
| Bitrate | 20 Kbps–80 Mbps |
| Control | CBR / VBR |
| Day/Night | BLC, HLC, HLM |
| WDR | 120 dB |
| White Balance | Auto, Manual, Fixed, Panorama, Snow Auto, Snow Panorama |
| Noise Reduction | 3D NR |
| Defog | Supported |
| ROI | 3 Zones |
| Privacy Masking | 5 Areas |
| Analytics | Intelligent Motion Detection (Vehicles & Humans with Alarms) |
| Audio Compression | G.711, G.726, MPEG-2 AAC-LC |
| Audio Input | Built-in Mic + 1 External Mic Line |
| Audio Output | 1 Line Output |
| Alarm Events | Audio Detection, Camera Tamper, Cybersecurity (Brute Force, Cyberattack, Quarantine), Manual Trigger, Motion Detection, Periodic Trigger, Recording Notification, SD Card Life Expectancy, Shock Detection, System Boot |
| Alarm Interface | Input: 1 Channel ; Output: 1 Channel |
| Network Interface | RJ-45 (10/100/1000 Base-T) |
| Protocols | IEEE 802.1x, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interoperability | ONVIF (Profile S/G/T) |
| Browser Support | Chrome, Firefox, Edge |
| Storage | MicroSD (Max. 1TB), SDHC, SDXC |
| Power Supply | 24 VAC, IEEE 802.3at PoE Class 4 (Redundancy Supported) |
| Power Consumption | PoE: 18.8 W Max ; 24 VAC: 26.4 W Max |
| Net Weight | 2.4 kg (5.2 lb) |
| Operating Temp | IR On: -40°C to 50°C ; IR Off: -40°C to 55°C |
| Humidity | < 98% RH (Non-Condensing) |
| Protection | IP66, IK10 |
| Dimensions | 308 × 167 × 130 mm (12.1 × 6.6 × 5.1 in.) |
| Material | Metal |
| Certifications | FCC, UL |
| Compliance | NDAA |
