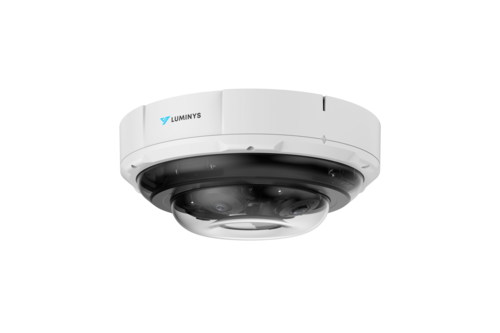

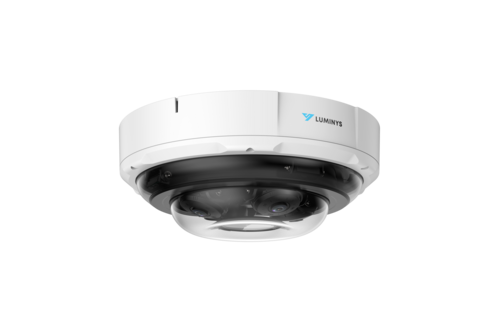

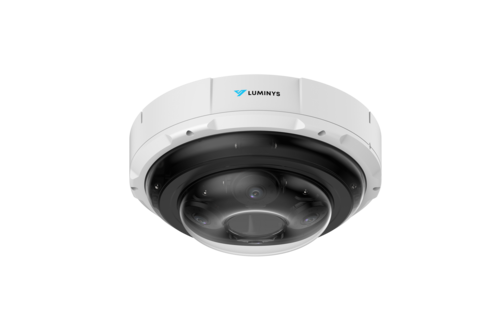

Luminys - N9P-20RAV - N9 Specialty Series 4 x 5MP AI 4-directional IP Camera, 2.8-12mm, IR LEDs
The N9P-20RAV is part of Luminys’s N9 Specialty series. N9 series devices are designed to improve operations and surpass today’s highest security standards, providing increased situational awareness and comprehensive security.
Key Technologies:
Video Content Analytics+ is the umbrella for Line Crossing, Intrusion, Loitering Detection, and Parking Detection analytics. Line Crossing identifies when a person or object crosses a defined line. Intrusion detects when a person or object breaches the boundaries of a defined area or enters a restricted area. Loitering Detection sends alerts to mobile devices when it detects a person or vehicle lingering in an area for a pre-set duration. Parking Detection establishes a
virtual perimeter around designated parking zones and triggers alerts when vehicles exceed the allowed parking time. VCA+ is specifically designed for more advanced and specialized applications as it offers more advanced features compared to standard video content analytics (VCA).
LumiAnalytics1 is the umbrella for Face Detection, People Counting, Queue Management, Smart Object Detection, and Heat Map. These analytics use detailed metadata and advanced AI algorithms to track important metrics such as people counting and behavior analysis. These insights give businesses highly valuable information to improve and optimize operations.

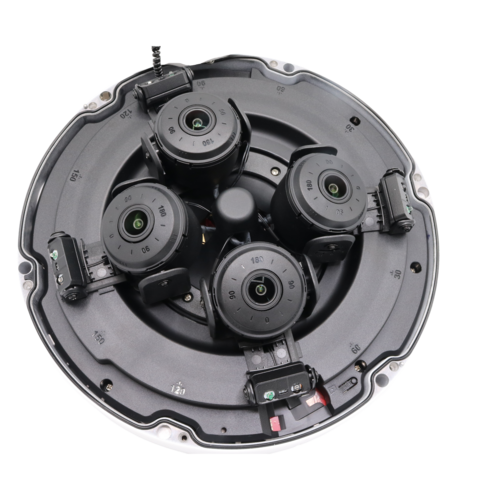

LumiFlex technology delivers the comprehensive, flexible coverage of multiple single-sensor cameras using one camera housing. LumiFlex cameras have multiple camera sensors that can be individually positioned to capture different areas of a scene. The footage from each sensor can then be combined to create one continuous stream to reduce the number of licenses required for a higher return on investment.
LumiDesertPro ensures dependable performance in temperatures up to 60 °C (140 °F).
Key Features:
- 4 x 5MP Dome Housing
- 360° or 180° Unstitched Multi-sensor
- 2.8 mm to12 mm Motorized Lenses
- IR Distance 94 ft
- Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
- LumiAnalytics: Face Detection, People Counting, Smart Object Detection
- LumiFlex
- Captures 180°, 270°, and 360° Unstitched
Video - 2.8 mm to 12.0 mm Motorized Vari-Focal Lens
- Video Content Analytics+: Line Crossing,
- Intrusion, Loitering Detection, Parking
Detection - LumiAnalytics1: Face Detection, People
- Counting, Smart Object Detection
LumiFlex - LumiDesertPro
Certifications and Compliance:
- NDAA Compliant
- FCC
- IC
- ONVIF
| Specification | |
| Series | Luminys N9 Series (Specialty) |
| Image Sensor | Four (4) × 1/2.7-in. 5MP Progressive CMOS |
| Max. Resolution | 2592 × 1944 per sensor |
| Min. Illumination | Color: 0.005 Lux @ F1.7 | B/W: 0.0005 Lux @ F1.7 | 0 Lux with IR on |
| Illuminators | Eight (8) IR LEDs |
| IR Control | Automatic / Manual |
| IR Distance | Up to 30.0 m (98.4 ft) |
| Shutter Speed | 1/30 s to 1/100,000 s (Auto/Manual) |
| Installation Angle | Pan: 0°–360° | Tilt: 0°–75° | Rotation: 0°–355° |
| S/N Ratio | > 56 dB |
| Lens - Iris Type | Fixed |
| Lens - Type | Motorized Vari-Focal |
| Lens - Focal Length | 2.8 mm – 12.0 mm |
| Lens - Max. Aperture | F1.7 |
| Lens - Field of View | H: 100°–42° | V: 74°–32° | D: 133°–53° |
| Lens - Close Focus | 0.8 m (2.6 ft) |
| DORI - Detect | 66.0 – 140.4 m (216.5 – 460.6 ft) |
| DORI - Observe | 26.4 – 56.1 m (86.6 – 184.1 ft) |
| DORI - Recognize | 13.2 – 28.8 m (43.3 – 94.5 ft) |
| DORI - Identify | 6.6 – 14.0 m (21.7 – 45.9 ft) |
| Video - Compression | H.265+/H.265, H.264+/H.264, MJPEG (Sub Stream only) |
| Video - Streams | 3 Streams (Single & Consolidated) |
| Video - Resolutions | Single: 5MP, 4MPP, 3MP, 1080p, 1.3MP, 720p, D1, VGA, CIF | Consolidated: 8MP, 5MP, 1080p |
| Video - Frame Rates | Single: Main 5MP@30fps, Sub1 D1@30fps, Sub2 1080p@30fps | Consolidated: Main 2MP@30fps, Sub1 D1@30fps, Sub2 8MP@30fps |
| Video - Bit Rate | H.264/H.265: 3 kbps – 19,712 kbps |
| Video - Control | CBR/VBR |
| Day/Night | Auto (ICR), Color, B/W |
| Light Balance | Digital WDR |
| Noise Reduction | 3D NR |
| Image Features | Rotation, Mirroring, ROI (4), Privacy Masking (8) |
| Analytics | Line Crossing, Intrusion, Loitering, Parking Detection | Face Detection | People Counting | Smart Object Detection |
| Audio - Compression | PCM, G.711, G.726, MPEG-2 AAC-LC |
| Audio - Interface | Input: 1 RCA | Output: 1 RCA |
| Alarms - Events | Motion, Tampering, Line Crossing, Intrusion, Abandoned/Missing Object, Loitering, People Gathering, Parking, Scene Change, Audio, Face Detection, People Counting |
| Alarms - Interfaces | Input: 3 ch (5VDC, 5mA) | Output: 2 ch (12VDC, 300mA) |
| Network - Interface | RJ-45 (10/100/1000 Base-T) |
| Network - RS-485 | 1 Channel (1200–115200 bps) |
| Network - Protocols | IPv4/IPv6, HTTP/HTTPS, TCP/UDP, RTP/RTSP/RTCP/RTMP, SMTP, FTP/SFTP, DHCP, DNS/DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| Network - Interoperability | ONVIF (S/G/T), API, P2P |
| Network - Browser | Firefox, Chrome, Edge |
| Network - Client | LumiViewer, LumiViewer Mobile |
| Network - Storage | MicroSD (Max. 256 GB), FTP, SFTP, NAS |
| Power Supply | 12 VDC, PoE+ (802.3at) |
| Power Consumption | < 24.7 W |
| Construction - Weight | Net: 2.8 kg (6.1 lb) | Gross: 4.5 kg (9.9 lb) |
| Construction - Operating Temp | -30°C to 60°C (-22°F to 140°F), <95% RH |
| Construction - Storage Temp | -30°C to 60°C (-22°F to 140°F) |
| Construction - Protection | IP67, IK10 |
| Construction - Dimensions | 111.3 mm × Φ286.1 mm (4.4 in. × Φ11.3 in.) |
| Construction - Material | Metal, Plastic |
| Certifications | FCC, IC |
| Compliance | NDAA |
