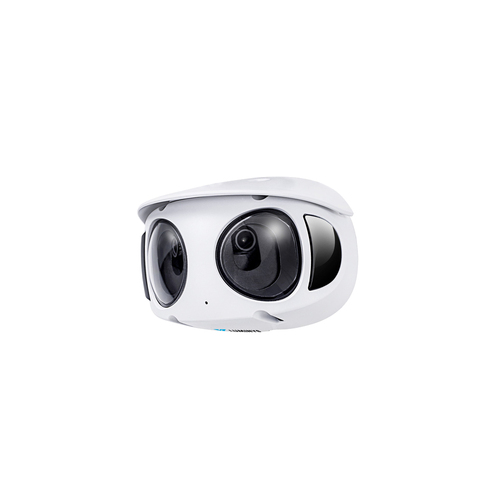

Luminys - N9P-8RB2 - N9 Specialty Series 2 x 4MP Stitched Multi-sensor IP Camera with Fixed Lens, IR
The N9P-8RB2 is part of Luminys’s N9 Specialty series. N9 series devices are designed to improve operations and surpass today’s highest security standards, providing increased situational awareness and comprehensive security.
Key Technologies:
Intelligent Motion Detection (iMD) technology accurately detects and filters humans and vehicle in a monitoring area. Using an advanced algorithm, iMD can accurately detect humans and vehicles while reducing false alarms caused by other objects, animals, or lighting. Users can be alerted to iMD events for timely security. iMD events can be saved for future reference and easily searched for at a later time for forensic analysis and to assist in investigations.
Key Features:
- 2 × 4MP Fixed Lens
- 2.8 mm Lens
- 65 ft IR Range
- Built-in Mic
- MicroSD Card Support (1TB Max)
- iMD
- 8MP Panoramic Housing
- 2.8 mm Fixed Lens
- Intelligent Motion Detection (iMD)
Certifications and Compliance:
- NDAA Compliant
- FCC
- UL
| Specification | |
| Camera | |
| Series | Luminys N9 Series (Specialty) |
| Image Sensor | Two (2) 1/2.7-in. 8MP Progressive CMOS |
| Maximum Resolution | 4864 x 1632 |
| Minimum Illumination | Color: 0.018 Lux at F1.2; B/W: 0.01 Lux at F1.2; 0 Lux with IR On |
| Number of Illuminators | Eight (8) IR LEDs |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | Up to 20.0 m (65.6 ft) |
| Electronic Shutter Speed | Automatic, Manual (1/30 s to 1/32,000 s) |
| Installation Angle | Tilt: 0° to 20° |
| S/N Ratio | > 58 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.2 |
| Field of View | Horizontal: 180°, Vertical: 50°, Diagonal: 180° |
| Close Focus Range | 1.0 m (3.3 ft) |
| DORI Distance | Detect: 58.1 m, Observe: 23.2 m, Recognize: 11.6 m, Identify: 5.7 m |
| Video | |
| Compression | H.265, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Three (3) Streams |
| Resolution | 4864x1632, 3648x1232, 2432x816, 1216x416 |
| Maximum Frame Rate | 8MP (4864x1632) at 30 FPS |
| Video Bit Rate | 20 Kbps to 80 Mbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | BLC, HLC, HLM |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Defog | Supported |
| Region of Interest | Three (3) Zones |
| Privacy Masking | Five (5) Zones |
| Analytics | Intelligent Motion Detection (Vehicles, Humans) |
| Audio | |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Input: Built-in Microphone |
| Alarm Events | Audio Detection, Camera Tampering, Cybersecurity Events, Motion Detection, etc. |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Protocols | IEEE 802.1x, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interoperability | ONVIF (Profile S/G/T) |
| Browser | Chrome, Firefox, Edge |
| Storage | MicroSD (Max 1TB), SDHC, SDXC |
| Electrical | |
| Power Supply | IEEE 802.3at PoE Class 4 |
| Power Consumption | Max (IR On): 20 W, Standard (IR Off): 13.5 W |
| Construction | |
| Net Weight | 1.2 kg (2.6 lb) |
| Operating Temperature | IR On: -40 °C to 50 °C; IR Off: -40 °C to 55 °C; <98% RH |
| Protection Ratings | IP66, IK10 |
| Dimensions | 165.0 × 112.0 × 119.0 mm (6.5 × 4.4 × 4.7 in.) |
| Material | Metal |
| Certifications & Compliance | |
| Certifications | FCC, UL |
| Compliance | NDAA |
