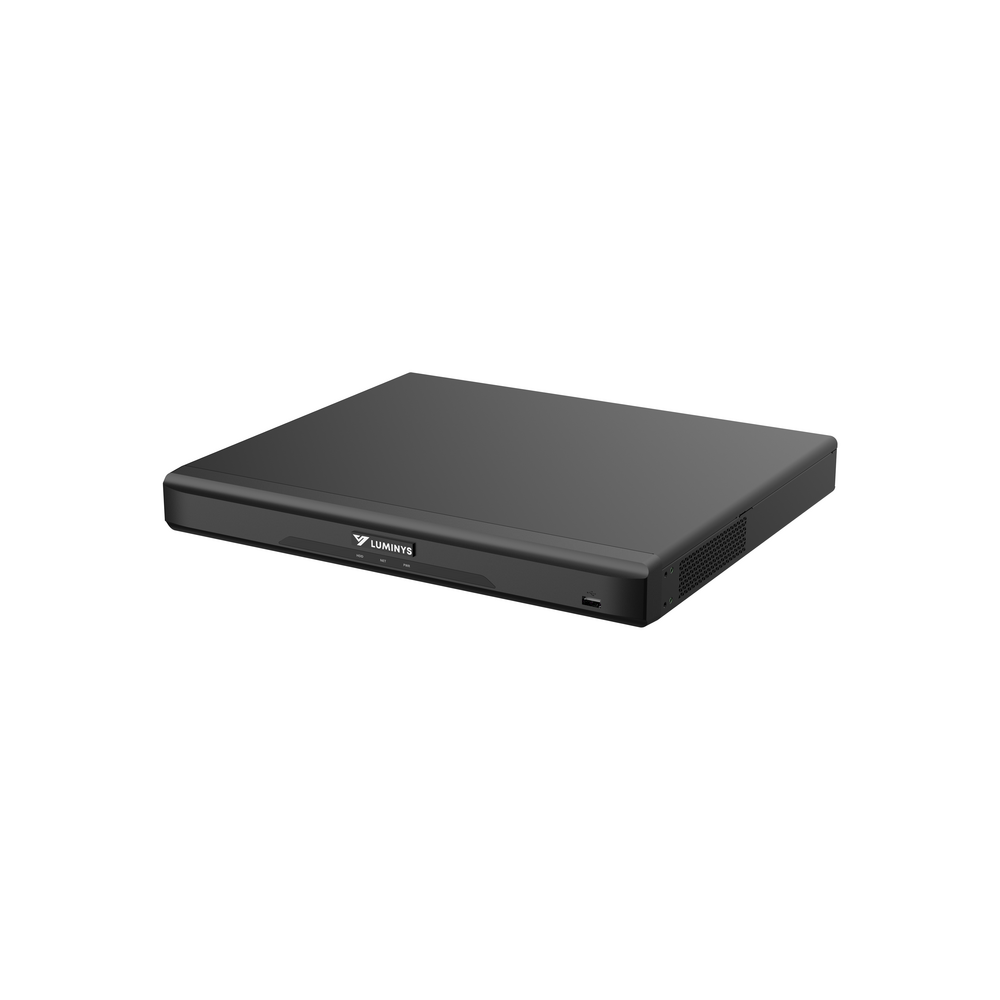

Luminys - R52-8PA2 - R5 Mainstream Series NVR, 32MP 8 Channel 1U 8-Port PoE, 2SATA, Analytics by Recorder, LumiPower, LumiSearch+ , 2TB
The R52-8PA2 is part of Luminys’s R5 series. R5 series devices are designed with a suite of advanced LumiTechnologies to meet the needs of today’s evolving security market.
Key Technologies:
LumiSearch
LumiSearch lets you quickly find, track, and identify targets in security footage using a reference image. The LumiSearch algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch-enabled camera and NVR. All R5 series NVRs support LumiSearch and LumiSearch+
LumiPower
LumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet. This simplifies installations in larger or more complex environments by eliminating the need for additional power sources or repeaters. LumiPower ensures consistent connectivity and dependable power management, ideal for expansive security infrastructures.
LumiViewer
LumiViewer is a desktop and mobile application that streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring.
Features:
- 8K 8-Channel NVR with 8 PoE Ports
- 384 Mbps Recording Bandwidth
- 2 Channels at 32MP or 4 Channels at 16MP Decoding Plus 2 Tb built in HDD
- Supports Recorder-Based and Camera-Side Analytics
- 1U Form Factor with 2 SATA, Audio, and Alarm Support
- NDAA Compliant
- FCC
| Specifications | |
| Video | |
| Video Input | 8 Channels |
| Recording Resolutions | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, |
| 3MP, 1080p, 720p, D1, VGA, CIF | |
| Output Resolutions | HDMI: 4K (3840 × 2160), 1920 × 1080, |
| 1280 x 1024 | |
| VGA: 1920 × 1080, 1280 x 1024 | |
| Live View/Playback Resolutions | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, |
| 3MP, 1080p, 720p, D1, VGA, CIF | |
| Decoding | |
| Format | H.265, H.264, H.264H, H.264B, MJPEG |
| Capability | AI On |
| 1CH at 32MP (30 fps) | |
| 2CH at 16MP (30 fps) | |
| 4CH at 8MP (30 fps) | |
| 8CH at 4MP (30 fps) | |
| AI Off | |
| 1CH at 32MP(30 fps) | |
| 3CH at 16MP(30 fps) • 6CH at 8MP(30 fps) | |
| 12CH at 4MP(30 fps) | |
| Live View Window Division | 1, 4, 8, 9 Views |
| Auxiliary Port Window Division | 1, 4, 8, 9 Views |
| Synchronous Playback | 8 Channels |
| Network | |
| Bandwidth | AI On |
| Incoming: 200 Mbps | |
| Outgoing: 200 Mbps | |
| AI Off | |
| Incoming: 256 Mbps | |
| Outgoing: 256 Mbps | |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, |
| SNMP, RTSP, UDP, SMTP, NTP, DHCP, | |
| DNS, DDNS | |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App |
| Supported Analytics | |
| Intelligent Motion Detection | Camera: 8CH NVR: 8CH |
| Video Content Analytics (VCA) | Camera: 8CH NVR: 4CH 10 Rules per Channel |
| Face Recognition | Face Capture and Recognition: 2CH Face Picture Comparison Alarm From Camera: 8CH Up to 20 Face Picture Libraries (Max. 20,000 Pictures Total) |
| LumiSearch+* | 8CH (Must be Supported by Camera) |
| Video Metadata | 8CH (Analytics by Camera) |
| License Plate Recognition | 8CH (LPR Camera Required) Two (2) Block List, Two (2) Allow List Up to 20,000 Plate Numbers |

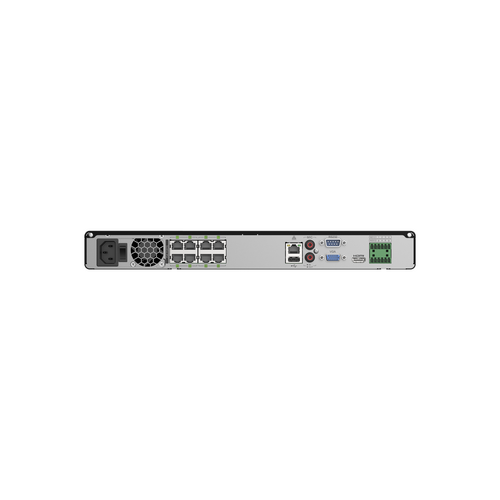

| Interface | |
| SATA | Two (2) Ports |
| HDD | Up to 16TB per HDD |
| Network | One (1) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps) |
| PoE | Eight (8) RJ-45 Self-Adaptive Ethernet (10/100 Mbps) |
| USB | Front Panel: 1 x USB 2.0 Rear Panel: 1 x USB 3.0 |
| Serial Port | 1 x RS-232 |
| Alarm | Input: Four (4) Channels Output: Two (2) Channels |
| Audio | Input: 1-Channel RCA Input Output: 1-Channel RCA Output |
| Electrical | |
| Power Supply | 100-240 V, 47-63 Hz |
| Power Consumption | < 10 W (HDD Not Included) |
| PoE: 130 W (Max. Output for Single Port: | |
| 25.5 W) | |
| Construction | |
| Installation Method | Rack- or Desktop-Mount |
| Weight | 2.6 kg (5.9 lb) Without HDD |
| Operating Temperature | –10 °C to 55 °C (14 °F to 131 °F) |
| 10% to 93% | |
| Dimensions (W × L × H) | 375.0 × 327.4 × 53.8 mm |
| (14.8 × 12.9 × 2.1 in.) | |
