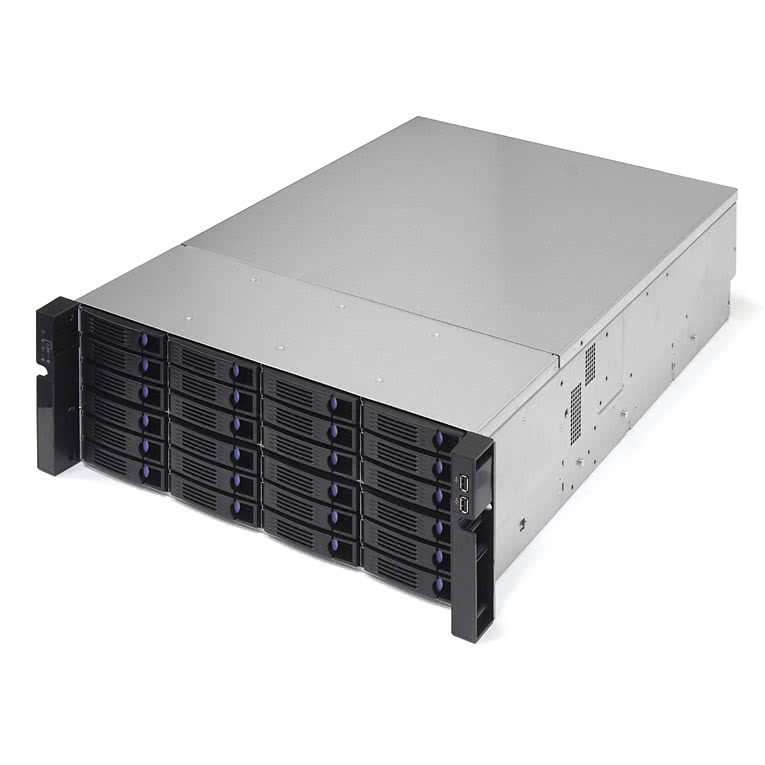

3U SERVER- 40TB (HOT_SWAP RAID6) 16 bay Hot Swap . Total of 13 x 4TB Drives
Features:
- COST EFFECTIVE RAID 6 Server with Enterprise Capabilities
- 12Gbps Video Storage System
- i7-7820X (8 Core) Series CPU
- 16GB DDR4 Memory
- Hardware RAID 6 With HOT SPARE
- Includes NAND flash memory which offers Zero-Maintenance Cache Protection that eliminates Battery Backup Units (BBUs)
- Hot-swappable rear fans put maintenance and management at ease.
- INTEL SSD (SOLID STATE DRIVE) 240GB for OS and VMS
- Includes a Hot spare drive
- Network Video Recorder (NVR) Server for enterprise applications
- Windows 10 Pro (64Bit)
- From 20TB to 210TB internal storage or up to 630TB combined with our DAS units on single server.
- Storage RAID 6 on Enterprise HDDs
- Included additional gigabit NIC (total 2 x NICS)
- Designed for robust high-performance computing
- Redundant Power Supplies
- Up to Unlimited client licenses
- 3 year hardware warranty
| Luxriot NVR Model | Luxriot 3U Single CPU RAID-6 32TB - 104TB Servers |
| Power Supply | 2 x 875W PS (Redundant) (110~240V) |
| Form Factor | 3U (32TB, 40TB, 48TB, 56TB, 64TB, 72TB, 80TB, 96TB & 104TB) |
| Cooling System | Built-in 4x 80mm Hot Swap PWM Middle Fans |
| Operating System | Windows 10 PRO (64 Bit) on dedicated 240GB SSD |
| NIC | 1 Internal + 1 PCI Gbit Ethernet 1000 Mbps LAN |
| DVD/CD RW | External USB |
| Storage | Hot Swap 32TB-104TB Internal (Enterprise Drives SATA-6Gb/s at 7200 RPMs) |
| Raid Controller | 12Gb/s SAS 2.0 PCIe Interface Gen 3 host connection. |
| Chassis / Backplane | 16 Bay SATA / (1) 12Gb/s mini SAS Port |
| CPU | (1) i9-10900X Dodeca-core (10 Core) 3.70 GHz Processor or higher |
| RAM | 32GB DDR4 |
| Dimensions (Dx Wx H) | 660 x 432 x 132 (mm), 26” x 17” x 5.2” |
