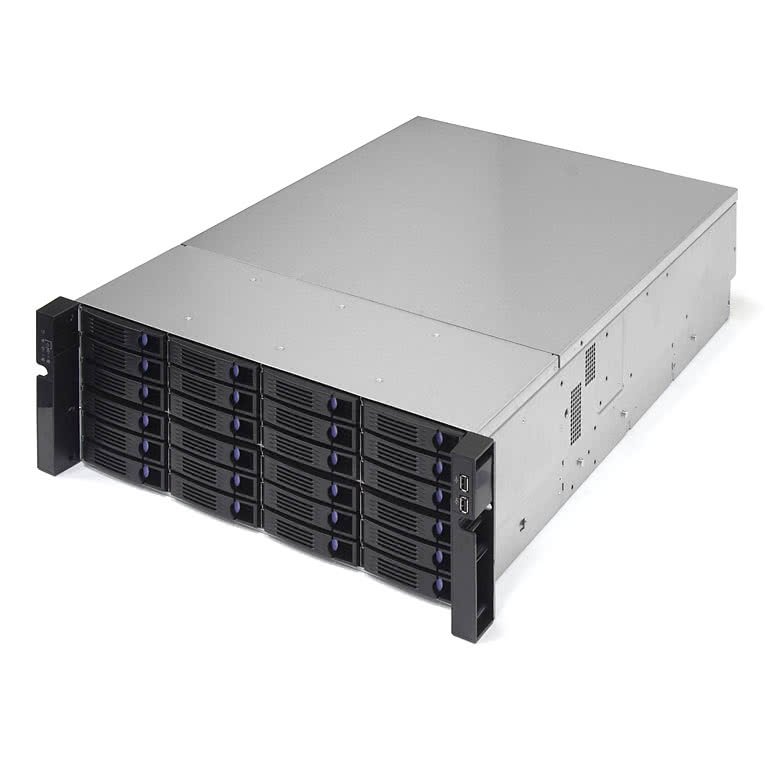

Luxriot - LR1-4U-IPSVR1-120TB - RAID 6 NVR Server - 120TB
Part number:
LR1-4U-IPSVR1-120TB
Price:
Luxriot 4U Single Intel Extreme CPU Raid-6 NVR Server Models with Hot-Spare
Features:
- Luxriot RAID 6 Server – 16 -bay 3U 660 x 432 x 132 (mm), 26” x 17” x 5.2” and 24 Bay 4U 699 x 432 x 176 (mm), 27.5” x 17” x 6.9”
- Intel Core i9 i9-10900X Dodeca-core (10 Core) 3.70 GHz Processor or higher
- NVME or SSD for OS
- 32GB RAM, 2 x Gigabit Network cards, DVDRW, Win10 Pro 64BIT
- 12Gb/s SAS 2.0 interfaces and the PCIe Gen 2 host connection it offers up to 60% higher sustained sequential throughput than previous generation controllers
- Includes an ADDITIONAL HOT SPARE DRIVE for extra redundancy
- Redundant Power Supplies (HOT SWAP)
- Equipped with Enterprise RAID drives 7200RPM 6Gb/s SATA - - Hot Pluggable
- 3 year warranty
| Luxriot NVR Model | Luxriot 4U Single CPU RAID-6 112TB – 336TB |
| Power Supply | 2 x 975W PS (Redundant) (110~240V) |
| Form Factor | 4U (112TB, 120TB, 128TB, 136TB, 144TB, 152TB, 160TB, 168TB, 190TB, 200TB, 210TB, 228TB, 240TB, 252TB, 266TB, 280TB, 294TB, 320TB, & 336TB) Intel Chipset |
| Cooling System | Built-in 4x 80mm Hot Swap PWM Middle Fans |
| Operating System | Windows 10 PRO (64 Bit) on dedicated 240GB SSD |
| NIC | 1 Internal + 1 PCI Gbit Ethernet 1000 Mbps LAN |
| DVD/CD RW | External USB |
| Storage | Hot Swap 112TB-336TB Internal (Enterprise Drives SATA-6Gb/s at 7200 RPMs) |
| Raid Controller | 12Gb/s SAS 2.0 PCIe Interface Gen 3 host connection. |
| Chassis / Backplane | 24 Bay SATA / (1) 12Gb/s mini SAS Port |
| CPU | (1) i9-10900X Dodeca-core (10 Core) 3.70 GHz Processor or higher |
| RAM | 32GB DDR4 |
| Dimensions (D x W x H) | 699 x 432 x 176 (mm), 27.5” x 17” x 6.9” |
