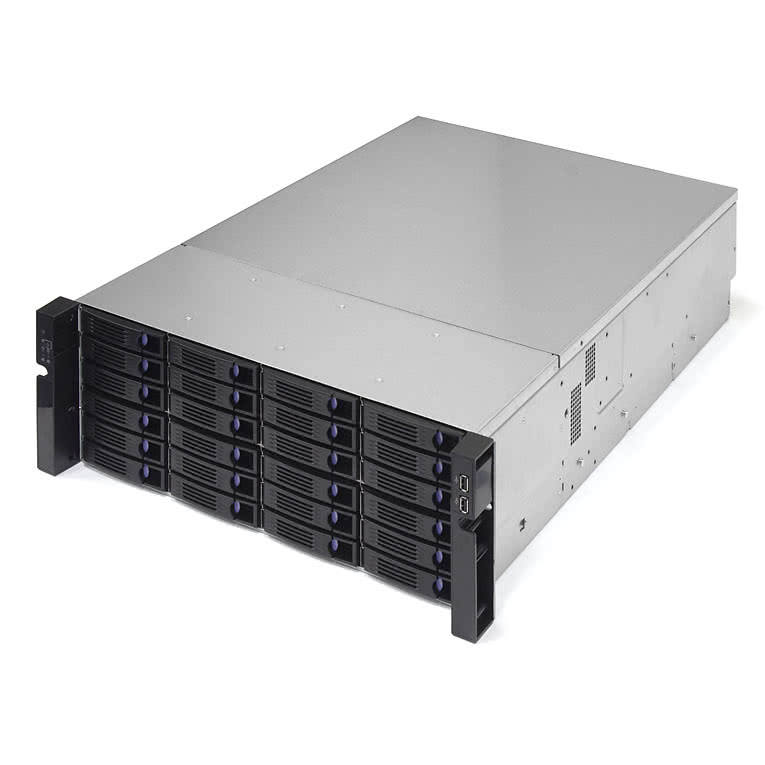

Luxriot - LR2-4U-XSVR2-64TB - 4U SERVER- 64 TB (HOT_SWAP RAID6) 24 bay Hot Swap Chassis. Total of 19 x 4TB Drives
Part number:
LR2-4U-XSVR2-64TB
Price:

Luxriot NVR Dual RAID-6 series are optimized and designed to work with Luxriot VMS for sensitive data storage of IP/Megapixel Cameras.


Features:

  • 2 x Intel Xeon Silver 4114 Deca-Core 2.20 GHz (20 Cores Total)
  • 16GB Memory (upgradable to 128GB)
  • Hardware RAID 6 with HOT SPARE included
  • INTEL SSD (SOLID STATE DRIVE) SSD 240GB DRIVE for OS
  • Includes 4GB of NAND flash memory which offers Zero-Maintenance Cache Protection that eliminates Battery Backup Units (BBUs)
  • Hot-swappable rear fans put maintenance and management at ease.
  • Network Video Recorder (NVR) Server for enterprise applications
  • Windows 2012/2016 Server OS
  • From 20TB to 210TB internal storage or up to 1680TB combine with our DAS units on single server.
  • Included additional gigabit NIC (total 3 x Gigabit NICS)
  • Designed for robust high-performance computing
  • Redundant Power Supplies
  • Up to Unlimited client licenses
  • Operating system & Luxriot® EVO server application on Intel 240GB SSD (or on RAID 1 SSD drives)
  • 3 year hardware warranty
Luxriot NVR ModelLuxriot 3U Dual CPU RAID-6 32TB - 104TB Servers
Power Supply(2) 875W PS (Redundant) (110~240V)
Form Factor3U (32TB, to 104TB)
Intel Server Main board
Cooling SystemBuilt-in 4x 80mm Hot Swap PWM Middle Fans
Operating SystemWindows 2019/16 MS SERVER OS (64 Bit) on dedicated 240GB SSD
NIC2 Internal + 1 PCI Gbit Ethernet 1000 Mbps LAN
StorageHot Swap 32TB-104TB Internal (Enterprise Drives SATA-6Gb/s at 7200 RPMs)
Raid Controller12Gb/s SAS 2.0 With BBU
Chassis / Backplane16 Bay SATA / (1) 12Gb/s mini SAS Port
Graphics CardBuilt-In
CPU(2) 2 x Intel Xeon Silver 4114 Deca-core (10 Core) 2.20 GHz Processor
RAM32GB DDR4
Dimensions (Dx Wx H)660 x 432 x 132 (mm), 26” x 17” x 5.2”
