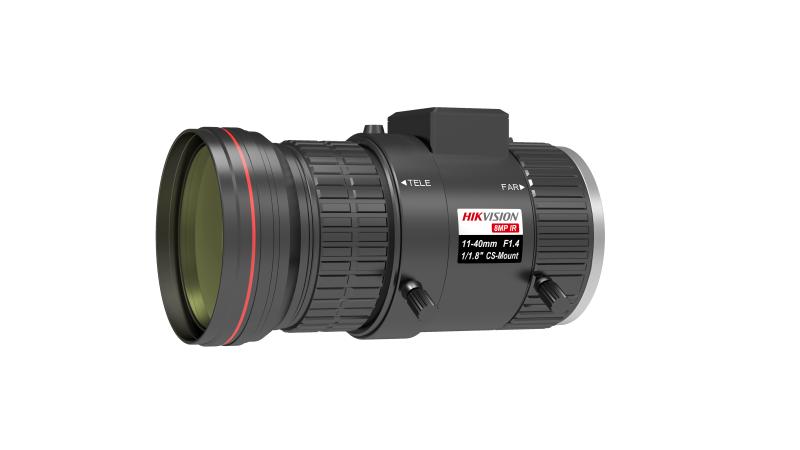

Hikvision - HV1140D-8MPIRA - Mega-pixel Auto-Iris Lens
Part number:
HV1140D-8MPIRA
Price:
Mega-pixel Auto-Iris Lens
Features:
- CCTV Camera Lens
- Auto-Iris
- IR
- 8MP
| Specification | |
| Weight | 177g |
| Dimension | Φ48*92.9mm |
| Specification | Vari-focal DC Auto Iris Constant Aperture 8MP IR |
| Focal length | 11-40mm |
| Mount | CS-Mount |
| F number | F1.4-C |
| Flange Back Length | 12.5mm |
| Max. Image format | Φ9mm（1/1.8"） |
| M.O.D | 0.1m |
| OperatingTemperature | -20~60℃ |
| Control | |
| Iris | DC Auto Iris |
| Focus | Manual |
| Zoom | Manual |
| Field of View | |
| Diagonal | 1/1.8":45.2°～13.8° 1/2":41.7°～12.8° |
| Horizontal | 1/1.8":36.7°～11.5° 1/2":35.8°～11.2° |
| Vertical | 1/1.8":23.9°～7.6° 1/2":19.6°～6.3° |
Name
Description
Size
Downloads
File
Quick Start Guide
0.8mb
