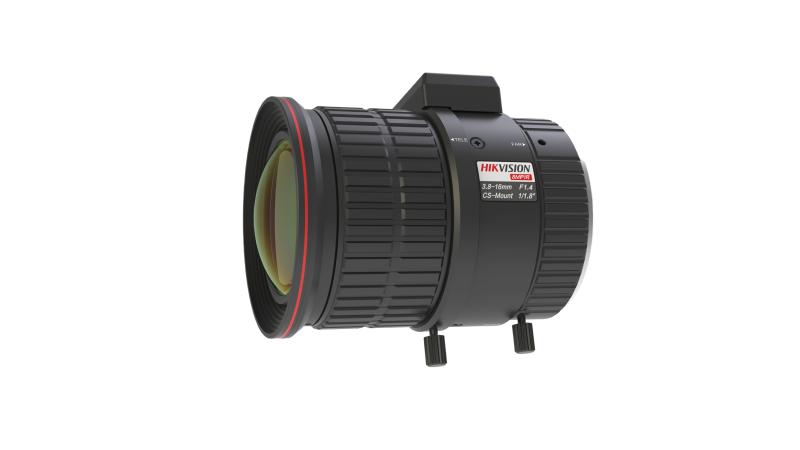

Hikvision - HV3816D-8MPIR - Mega-pixel Auto-Iris Lens
Part number:
HV3816D-8MPIR
Price:
Mega-pixel Auto-Iris Lens
Features:
- CCTV Camera Lens
- Auto-Iris
- IR
- 8MP
| Specification | |
| Weight | 237g |
| Dimension | Φ55*75mm |
| Specification | Vari-focal DC Auto Iris8MP IR ASPHERICAL |
| Focal length | 3.8-16mm |
| Mount | CS-Mount |
| F number | F1.4-C |
| Flange Back Length | 12.5mm |
| Max. Image format | Φ9mm（1/1.8"） |
| M.O.D | 0.1m |
| OperatingTemperature | -20~60℃ |
| Control | |
| Iris | DC Auto Iris |
| Focus | Manual |
| Zoom | Manual |
| Field of View | |
| Diagonal | 1/1.8":124.7°～33.8° 1/2":118.8°～32.2° |
| Horizontal | 1/1.8":99.8°～27.1° 1/2":100.8°～27.3° |
| Vertical | 1/1.8":74.7°～20.4° 1/2":62.6°～17.1° |
Name
Description
Size
Downloads
File
Quick Start Guide
0.8mb
