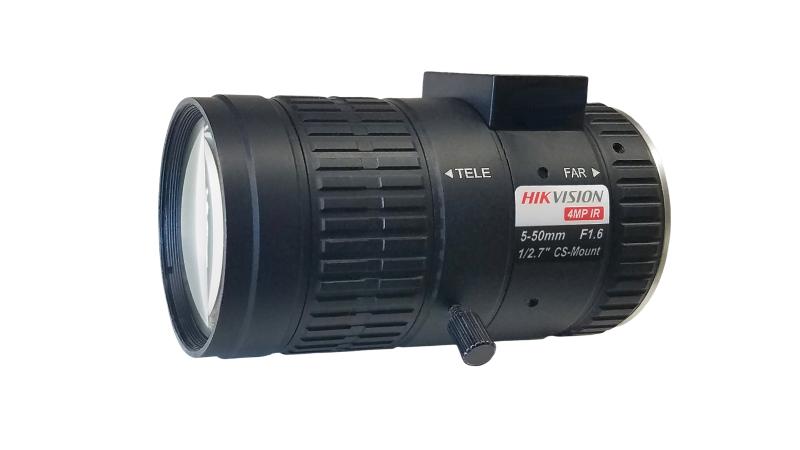

Hikvision - TV0550D-4MPIR - Mega-pixel Auto-Iris Lens
Part number:
TV0550D-4MPIR
Price:
Mega-pixel Auto-Iris Lens
Features:
- CCTV Camera Lens
- Auto-Iris
- IR
- 4MP
| Specification | |
| Weight | 177g |
| Dimension | Φ40*72.72mm |
| Specification | Vari-focalAuto Iris DC Drive4MP IR |
| Focal length | 5-50mm |
| Mount | CS-Mount |
| F number | F1.6-C |
| Flange Back Length | 12.5mm |
| Max. Image format | Φ6.5mm（1/2.7"） |
| M.O.D | 0.1m |
| OperatingTemperature | -20~60℃ |
| Control | |
| Iris | DC Auto Iris |
| Focus | Manual |
| Zoom | Manual |
| Field of View | |
| Diagonal | 1/2.8":66.7°～7.7° 1/3":62.6°～7.2° |
| Horizontal | 1/2.8":53.5°～6.2° 1/3":50.2°～5.8° |
| Vertical | 1/2.8":40.2°～4.6° 1/3":37.6°～4.3° |
Name
Description
Size
Downloads
File
Quick Start Guide
0.8mb
