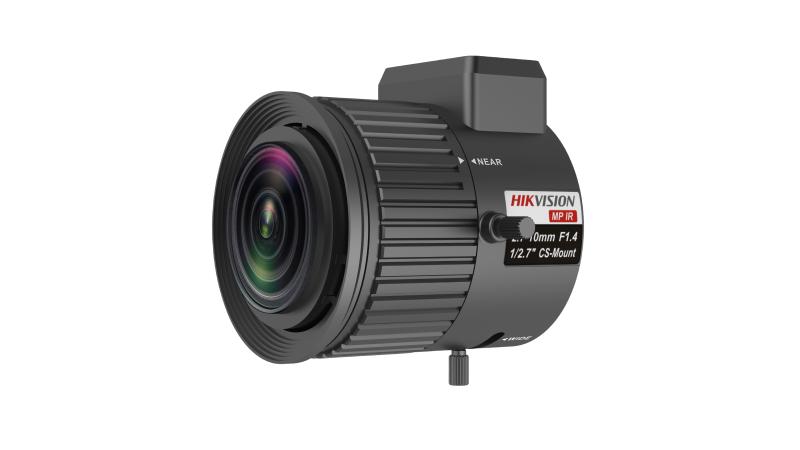

Hikvision - TV2710D-MPIR - Mega-pixel Auto-Iris Lens
Part number:
TV2710D-MPIR
Price:
Mega-pixel Auto-Iris Lens
Features:
- CCTV Camera Lens
- Auto-Iris
- IR
| Specification | |
| Weight | 55.8g |
| Dimension | Φ42*46.9mm |
| Specification | Vari-focalAuto Iris DC Drive3MP IR |
| Focal length | 2.7-10mm |
| Mount | CS-Mount |
| F number | F1.4-C |
| Flange Back Length | 12.5mm |
| Max. Image format | Φ6.5mm（1/2.7"） |
| M.O.D | 0.1m |
| OperatingTemperature | -20~60℃ |
| Control | |
| Iris | DC Auto Iris |
| Focus | Manual |
| Zoom | Manual |
| Field of View | |
| Diagonal | 1/2.8":129.7°～41.0° 1/3.2":114.8°～37.4° |
| Horizontal | 1/2.8":108.2°～35.7° 1/3.2":87.8°～29.9° |
| Vertical | 1/2.8":56.8°～20.0° 1/3.2":64.0°～22.4° |
Name
Description
Size
Downloads
File
Quick Start Guide
0.8mb
