Platinum Tools - PT-OTDR-100 - Mini OTDR/Copper Tester (1310/1550nm), Inlcudes RJ45 Remote, Charger, Case and Adapters
Part number:
PT-OTDR-100
Price:

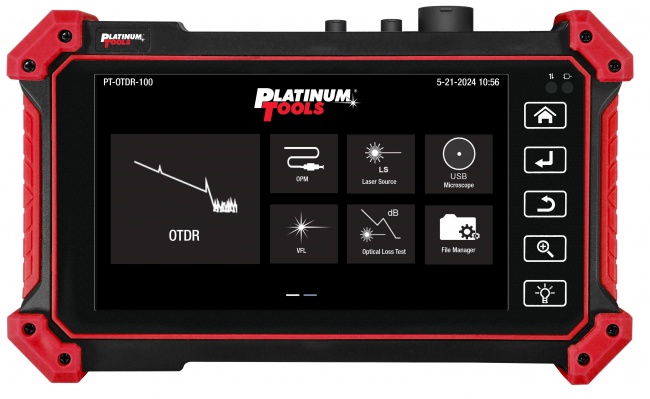

The PT-OTDR-100 mini OTDR tester provides a simple to setup and easy to use solution for OTDR testing. Includes a 5.5 inch OLED touch screen for easy viewing of cable tests and can save and export your OTDR tests. This unit will perform OTDR tests, OPM, VFL and laser source functionality for fiber optic cable, and will also perform continuity testing and TDR for Category cable
Features:
- Auto Testing with Event Map
- OTDR Test Range 3m - 105km
- Laser Source, OPM and VFL Functionality
- OTDR tests exportable as SOR or PDF files
- Includes RJ45 remote for copper cable testing
- Multiple adapters for fiber optic cables included
| OTDR TECHNICAL SPECIFICATIONS | |
| Size & Display | 5.55 inch OLED screen display, 1280 |
| Network Port | 10/100/1000M auto adapt (optional) |
| Max Testing Length | Twisted pair TDR: 600m / 1668ft, Fiber OTDR: 105km / 65 miles |
| Network test | IP Scan, PPPOE, port flashing, Ping test (optional) |
| Linearity (dB/dB) | ±0.05 dB/ dB |
| Wavelength (nm) | 1310/1550 |
| Dynamic range(dB)2 | 28/26 |
| Pulse width (ns) | 5, 10, 20, 30, 50, 80, 160, 300, 500, 800, 1000, 2000, 4000, 6000, 10000, 20000 |
| Testing range | ≤105 Km |
| Event blind zone (m)3 | ≤1.6m |
| Attenuation blind zone (m)3 | ≤8m |
| Linearity (dB/dB) | ±0.05 dB/ dB |
| Loss threshold (dB) | 0.05 |
| Loss resolution ratio (dB) | 0.01 |
| Minimum distance resolution | 0.05 |
| Sampling point (K) | 32-128 |
| Distance uncertainty (m) | ±(1 m + 5×10-5× distance + sampling interval) |
| Distance scope (km) | 0.5, 1, 2, 5, 10, 25, 50, 100, 200 |
| Typical real-time refreshing duration | 1s |
| File format | SOR standard format/PDF/EXCEL |
| Measurement duration | 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable |
| Storage | FLASH (EMMC)8G + TF card |
| Interface type | SC-UPC |
| POWER | |
| External power supply | Type-c 5V (2A) |
| Battery | Built-in 3.7V 4000mA Li-ion Battery |
| Rechargeable | After charging 3.5 hours, normal working time 5 hours |
| Auto off | 5-30 (mins) |
| WORKING ENVIRONMENT | |
| Working Temperature | -10ºC ---+50ºC (14ºF ---122ºF) |
| Working Humidity | 30%-90% |
| Dimension/Weight | 183mm x 110mm x 36.5mm / 0.45Kg 7.20in x 4.33in x 1.43in / 1lb |
