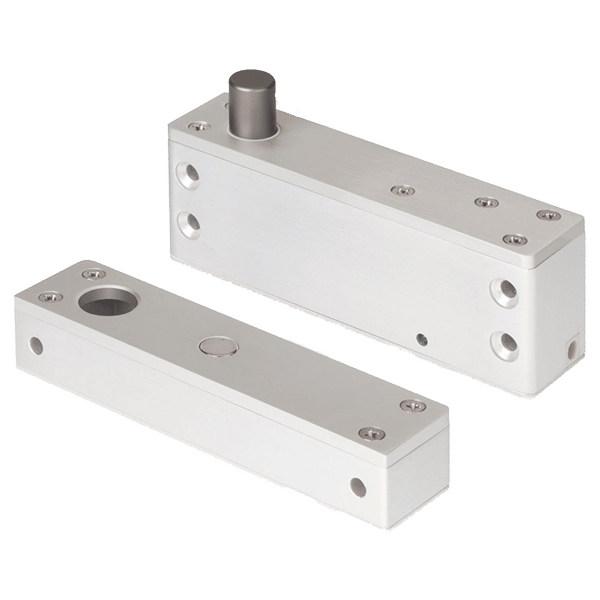

SECO-LARM - SD-997B-1SQ - Mini Surface-Mount Electric Deadbolt. Fail-safe (door unlocks when power is lost). 12VDC
Part number:
SD-997B-1SQ
Price:

The Sd-997B-1Sq Adds Deadbolt Security To Cabinet Doors Or Drawers With The Convenience Of Electrical Operation. Its Miniature Size And Surface-mount Design Allows It To Be Added To Almost Any Location. Fail-safe Operation Unlocks The Unit When Power Is Lost. Door Status Monitoring Is Also Available To Tie Into A Control System.



Features:

  • Fail-safe operation (unlocks if power is lost)
  • Surface-mount design for easy installation
  • Magnetic switch senses door position for positive locking
  • Aluminum alloy bolt, 15/32” (12.7mm) diameter, 9/16” (14mm) throw
  • Automatically relocks after 6 seconds if the lock was unlocked but the door was not opened
  • Door open/close monitor (NC/COM)
  • Lock delay timer adjustable between 0 and 3 seconds
  • Use with an optional digital keypad for high security without a key
  • Powered by a solenoid
OperationFail Safe
Current Draw- Standby237mA@12VDC max.
Current Draw- Active650mA@12VDC max.
Status Sensor250mA@30VDC (NC/COM)
Operating Voltage12VDC
Adjustable Delay Timer0/3 s (default)
Operating Temperature32º~158º F (0º~70º C)
Weight1-lb, 2.5-oz (450g)
Name
Description
Size
Downloads
File
Datasheet
0.1mb
File
Manual
0.3mb
