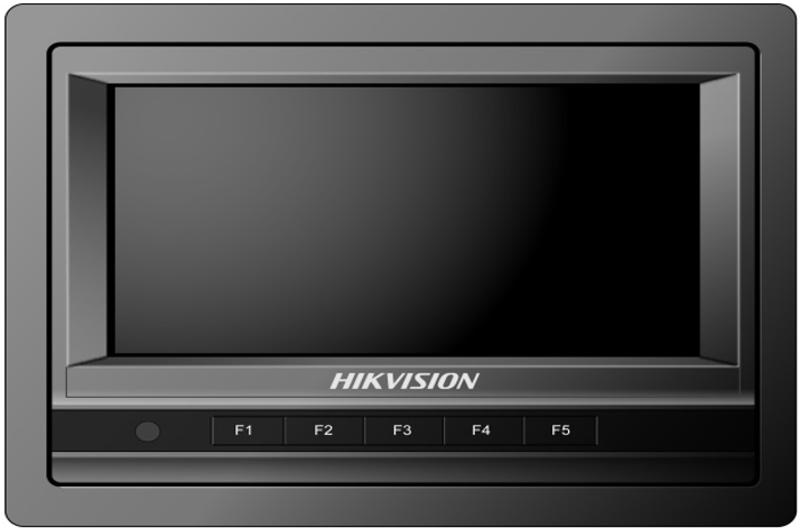

Hikvision - DS-MP1301B - Mobile 7-inch monitor
Part number:
DS-MP1301B
Price:
7 inches Monitor Series
Features:
- Supports 7-inch TFT LCD screen for live view and operation
- Real-time live view of the rear-view camera when the vehicle is backing off and other connected camera
- Support 3-ch video input including one channel connecting to the mobile DVR, one channel connecting to the rear-view camera and one reserved channel connecting to the other camera
- Support 2-ch alarm input
| Category | Specification |
|---|---|
| Interface | |
| Input Interface Definition | 1-ch Four-pin aviation male plug (connects to mobile DVR) |
| 1-ch Four-pin aviation male plug (connects to rear-view camera) | |
| 1-ch (reserved) Four-pin aviation male plug (connects to other camera) | |
| General | |
| Nominal Voltage | DC12V |
| Working Temperature | -20° C to +70° C (-4° F to +158° F) |
| Working Humidity | 10% to 95% |
| Operation Mode | Key |
| Trigger Mode | Key / Alarm Line |
| Screen Size | 7" TFT-LCD |
| Resolution | 800 × 480 RGB |
| Brightness Auto-Adjust | Yes |
| Signal Format | CVBS PAL / NTSC |
| Backlight Mode | LED |
| Modulation | Embedded mounting; Bracket mounting |
| Application | Suitable for bus, school bus, taxi, and other vehicle monitoring scenarios |
| Dimension | 181.5 mm × 140 mm × 58.5 mm |
