Cyber Power - PDU31005 - Monitored PDU 20A 100-240V (8) IEC-C13 Outlets IEC-C20 10ft Cord SNMP 1U

Part number:
PDU31005
Price:

Monitored PDU 20A 100-240V (8) IEC-C13 Outlets IEC-C20 10ft Cord SNMP 1U 3YR WTY

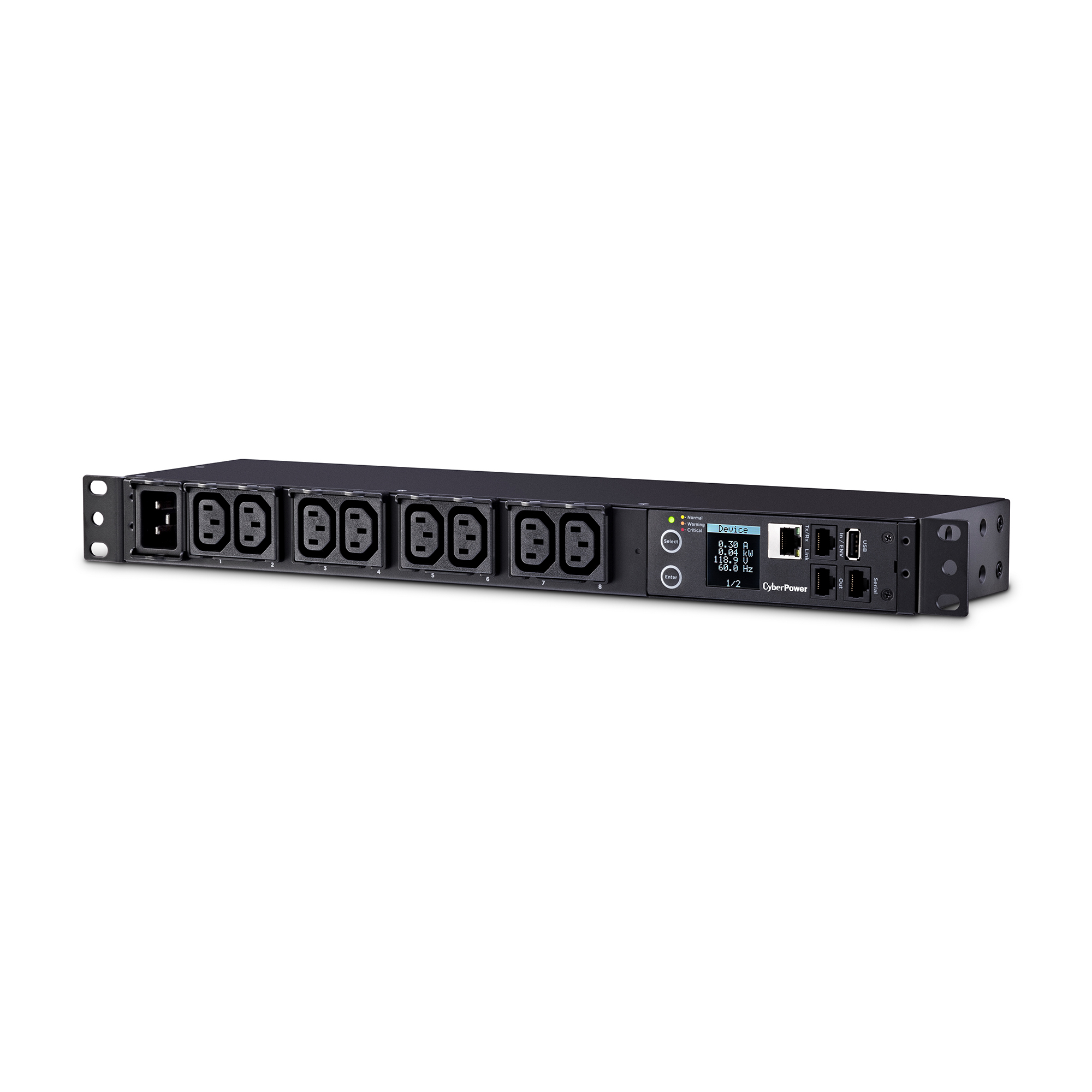

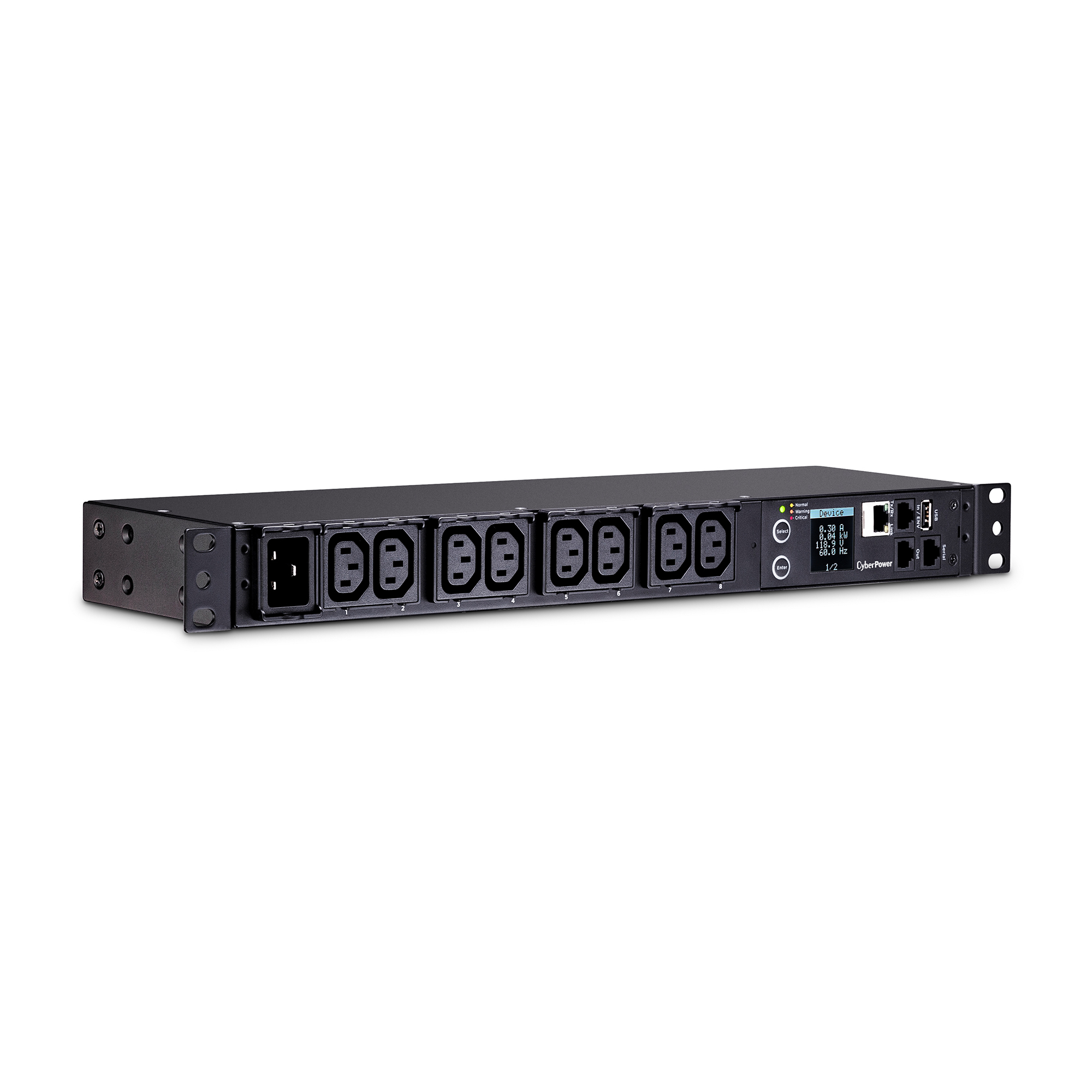

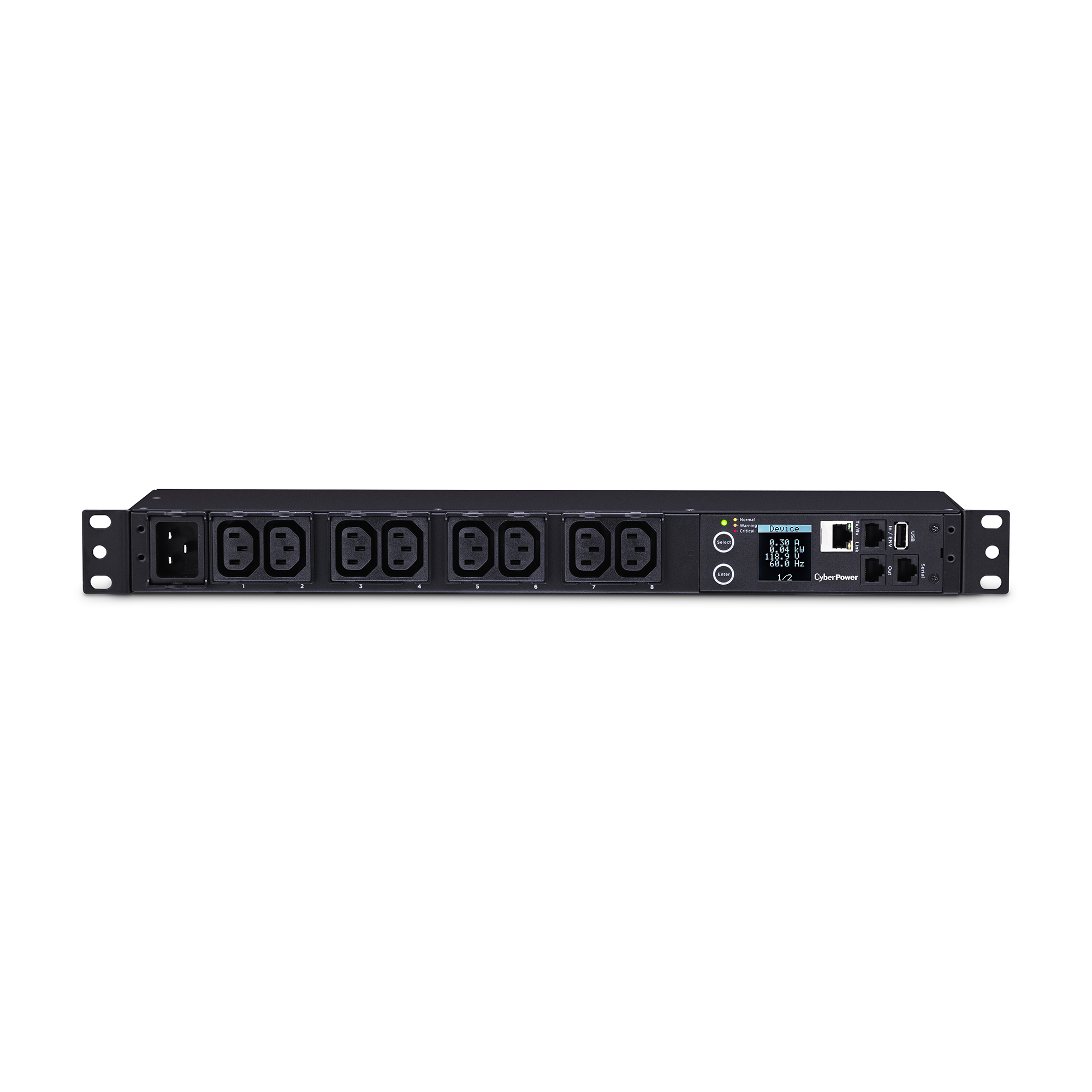

The CyberPower PDU31005, an 8-outlet (front), 1U rackmount monitored power distribution unit (PDU), provides 100-240V 20A output. PDU31005 distributes power to 8 IEC-320 C13 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. Monitor power status over the network using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD screen.



The PDU31005 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.



Features:



  • Power Distribution: Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
  • Switch-Free Design: Safeguards against accidental power shut down.
  • CyberPower Management Console: A hardware interface built into monitored and switched PDUs. It can perform tasks such as load monitoring and event logging.
  • Remote and Local Monitoring: Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
  • Automatic Event Notifications: Provides immediate updates about power events via email, SMS text, or SNMP traps.
  • Upgradeable Firmware: Downloadable firmware updates to improve programs that run the PDU.
  • Digital Display: Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
  • Network-Grade Plugs and Outlets: Highly durable construction ensures the efficient distribution of power to servers, equipment, and connected devices in demanding IT or industrial environments.
  • Long Input Power Cord: The PDU is able to be placed where it’s needed because it reaches distant power sources.
  • Cord Retention Tray: Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
  • Mounting Brackets: Design allows PDU to be installed in a rack or horizontally or vertically, under a counter or via wall mount.
  • Durable Metal Housing: Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
  • Three-Year Limited Warranty: Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Input
Cord Length10 ft (3.0 m)
Derated Input Current16 A
Input Frequency Range50 Hz – 60 Hz
Input Plug TypeIEC-320 C20
Maximum Input Current20A
Power Cord Length10 ft (3 m)
Output
Circuit Quantity1
Nominal Output Voltage100 – 120 VAC
Number of Outlets8
Outlet Type8 – IEC-320 C13
Outlets – Total8
Overload ProtectionNone
USB Charge PortNo
Management & Communications
Environmental SensorOptional, via RJ45
Hardware Connection PortRJ45, Universal (RJ45)
LCDMultifunction LCD
Outlet switchingNo
ProtocolsIPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
Upgradeable firmwareYes
Physical
Material of ConstructionMetal
Rack Height1U
Dimensions
Physical Dimensions – (WxHxD) (cm)43.31 x 4.57 x 11.2 (cm)
Physical Dimensions – (WxHxD) (in)17.05 x 1.8 x 4.41 (in)
Physical Dimensions – (WxHxD) (mm)433 x 46 x 112 (mm)
Physical Weight (kg)1.91
Physical Weight (lb)4.2
Dimensions – Shipping
Shipping – Weight (kg)1.91
Shipping – Weight (lb)4.2
Shipping Dimensions – (WxHxD) (cm)50.04 x 6.6 x 24.89 (cm)
Shipping Dimensions – (WxHxD) (in)19.7 x 2.6 x 9.8 (in)
Shipping Dimensions – (WxHxD) (mm)500.38 x 66.04 x 248.92 (mm)
Environmental
Operating Elevation0 – 11483 ft (0 – 3500 m)
Operating Relative Humidity0 – 95 % (non-condensing)
Operating Temperature32 – 131 °F (0 – 55 °C)
Storage Elevation0 – 49213 ft (0 – 14999 m)
Storage Temperature5 – 140 °F (-15 – 60 °C)
Certifications
SafetyUL 60950-1
Warranty
Extended Warranty OptionWEXT5YR-PDU1A
Product Warranty3 Year Limited Warranty
