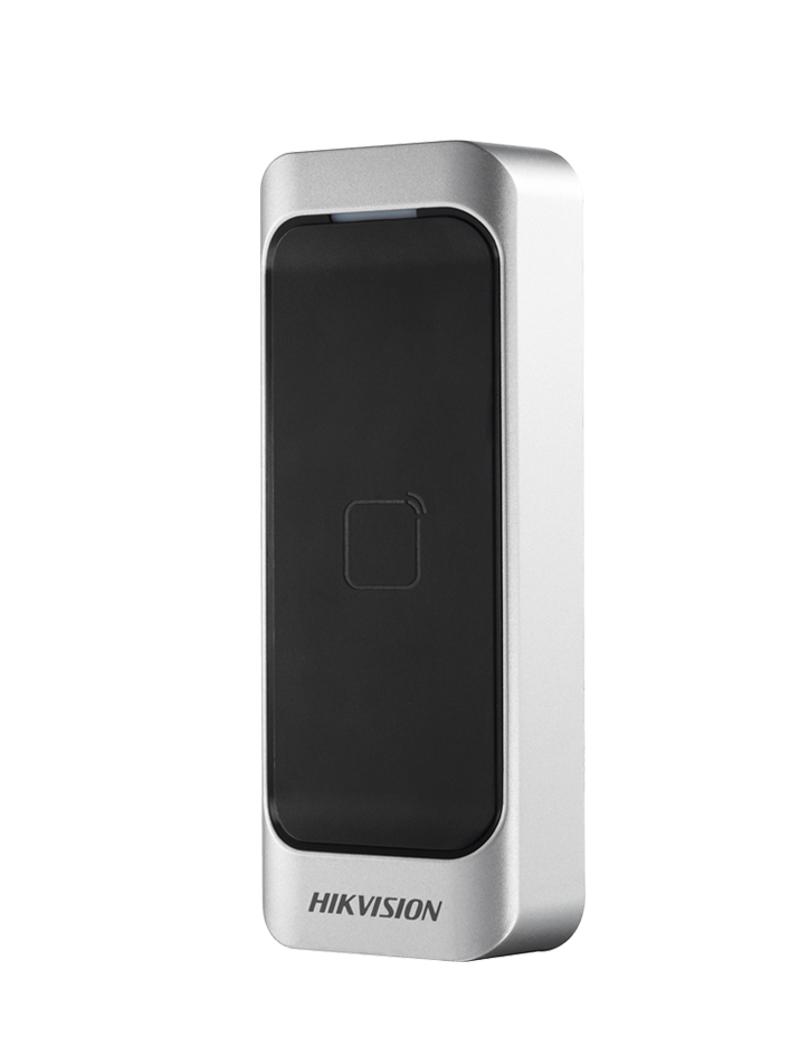

Hikvision - DS-K1107AM - Mullion Card Reader (Mifare)
Part number:
DS-K1107AM
Price:
Mullion Card Reader (Mifare)
Features:
- Equipped with the 32-bit high-speed processor
- RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
- Build-in Mifare card reading module (Frequency: 13.56 MHz)
- Supports tampering alarm
- Built-in buzzer for identifying the reading status
- Online upgrade function
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
| Specification | |
| System | |
| Processor | 32-bit |
| Interface | |
| TAMPER | Support |
| RS-485 | Support |
| Wiegand | Support (set via DIP switch) |
| Authentication | |
| Card reading frequency | 13.56 MHz |
| Card reading distance | ≤50 mm (≤1.97") |
| General | |
| Indicator | Power indicator, status indicator |
| Power supply | 12 VDC |
| Power consumption | ≤2 W |
| Working temperature | -20 °C to 65 °C (-4 °F to 149 °F) |
| Working humidity | 10% to 90% (Non Condensing) |
| Protective level | IP65 |
| Dimensions | 115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'' ) |
| Installation | Wall Mounting with Screws; Do Not Support Gang Box |
| Buzzer | Support |
Name
Description
Size
Downloads
File
Data Sheet
0.5mb
File
User Manual
1.2mb
