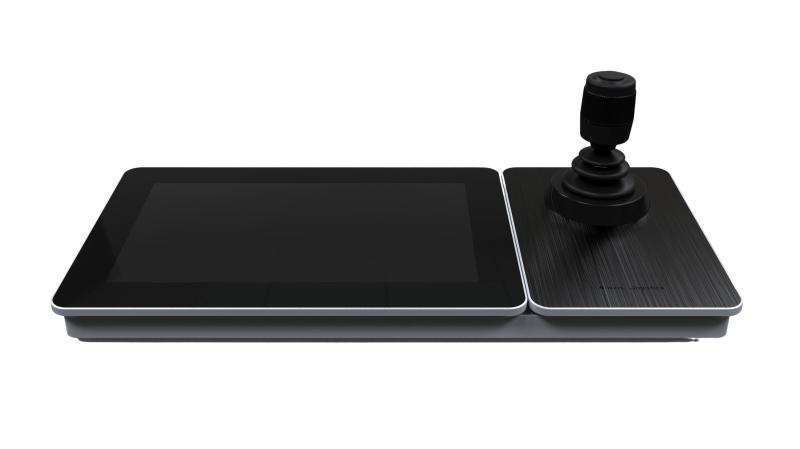

Hikvision - DS-1600KI - Network Keyboard
Part number:
DS-1600KI
Price:
Network Keyboard
Features:
- High-performance, full-featured network keyboard
- Built-in Android system provides powerful control functions
- User friendly touch screen makes operation easy
- Flexible configuration via network
- Supports various cameras, NVRs and DVRs
| Specification | |
| Interface | |
| USB Interface | 2 × USB 2.0 |
| Serial Interface | Network, RS-232, RS-422, RS-485 |
| Network Interface | 10M/100M/1000M adaptive ethernet port; WiFi: Supported |
| General | |
| Working Temperature | -10 to +55° C (14 to 131° F) |
| Working Humidity | 10% to 90% |
| Net Weight | 1.7 kg (3.75 lb) |
| Dimensions (W × H × D) | 404 mm × 163 mm × 180 mm (15.91" × 6.42" × 7.09") |
| Power Consumption | ≤15 W |
| Power Supply | 12 VDC/PoE |
| Display | 10.1" TFT LCD touchscreen, Resolution: 1280 × 800 |
| Joystick | 4-axis joystick |
| Video | |
| Video Output Interface Type | 1 × HDMI, 1 × DVI |
| Audio | |
| Audio Input Interfaces | 1-ch, 3.5 mm connector (2.0 Vp-p, >1 KΩ) |
| Audio Output Interfaces | 1-ch, 3.5 mm connector (2.0 Vp-p, 600 Ω) |
| Video Decoding | |
| Video Decoding Format | H.264, H.264+, H.265, H.265+, MPEG4 |
| Video Decoding Capability | 1 channel of 4K@30fps, or 4 channels of 1,080P@30fps |
| Certification | CE-EMC/CE-LVD/ROHS/CB/UL/FCC-SDoC/RCM/BIS |
