SECO-LARM - CS-PD115-PAQ - Photoelectric Proximity Sensor. Diffused Type, Plastic Cylindrical Threaded Case 15Cm Max. Sensing Range, Pigtail
Part number:
CS-PD115-PAQ
Price:

Photoelectric proximity sensor. Diffused type, plastic cylindrical threaded case 15cm max. sensing range, pigtail

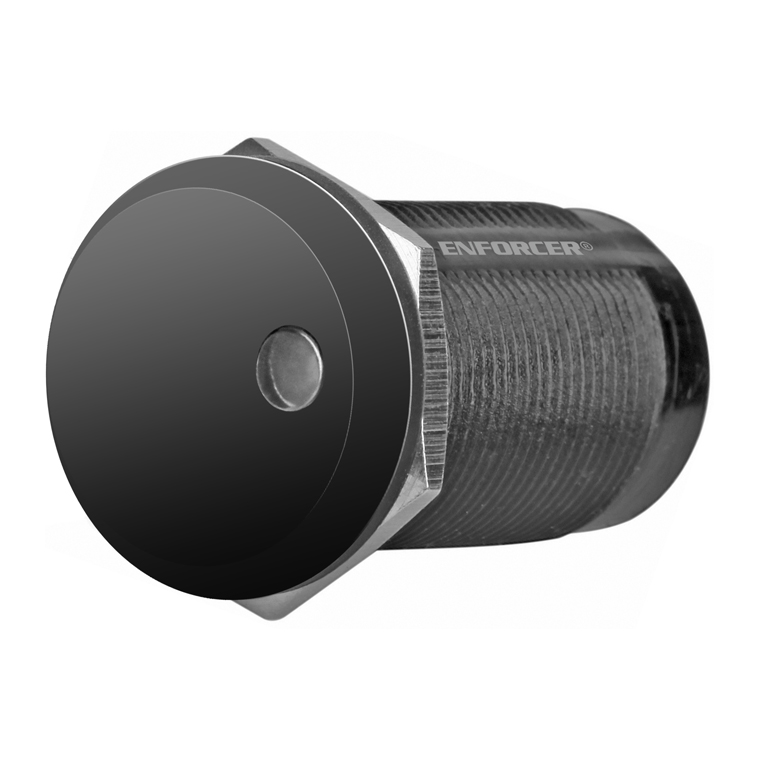

The ENFORCER IR Proximity Sensor is a compact sensor that can be programmed to trigger an alarm when an object (such as a valuable possession) is removed from the sensing area or unlock an electronic door lock when an object (such as a hand) is passed in front of the sensor. This flexibility makes the sensor ideal for both anti-theft and access control applications.



Features:

  • No-touch operation reduces the risk of spread of germs, viruses, etc., through cross-contamination
  • Adjustable sensor range up to 6″ (15cm) 1A relay, adjustable trigger duration 0.5~20 seconds or toggle
  • Selectable LED colors (turns from red to green or green to red) to show if the sensor is activated
  • Weatherproof (IP65*) for outdoor use
  • OEM / Private label available

​* Weatherproof when properly installed (see manual)

Sensing Range2″~6″ (5~15 cm)

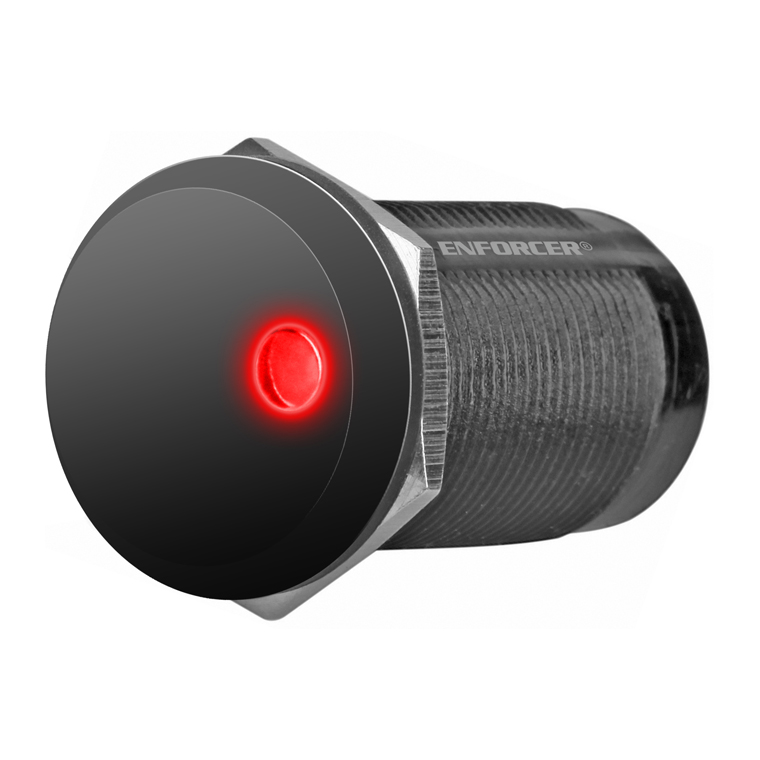

LEDsRed- Standby, Green- Triggered
Alarm Output1A@30VDC
Output Time1~20 s or Toggle
Operating Voltage12~24 VDC
Current Draw30mA@12VDC
IP RatingWeatherproof IP65
Operating Life100,000 Hours or 1,000,000 uses
Operating Temperature-4°~131° F (-20°~55° C)
Weight0.35-oz (10g)

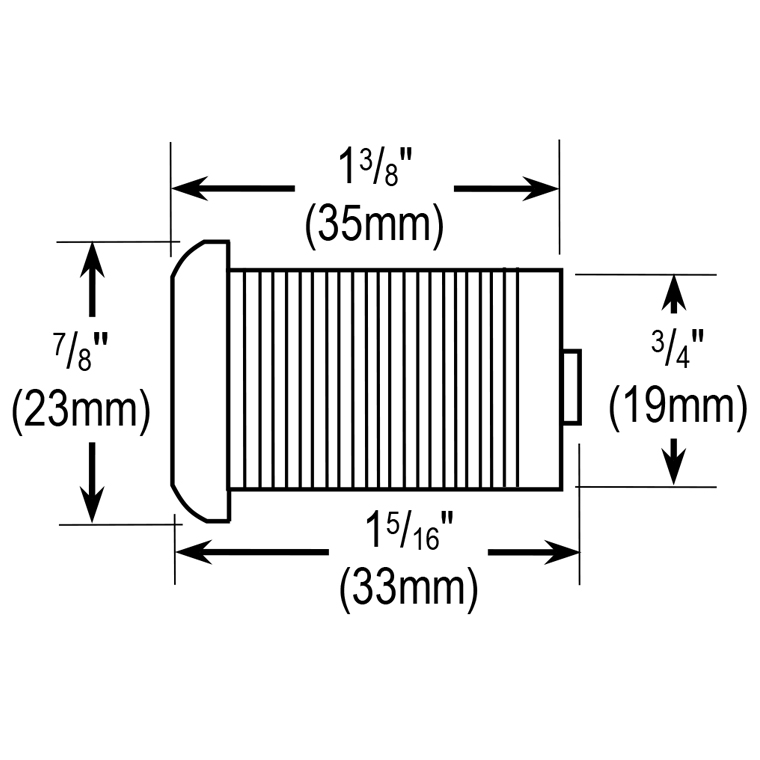

Dimensionsø3/4″ (ø19mm)
