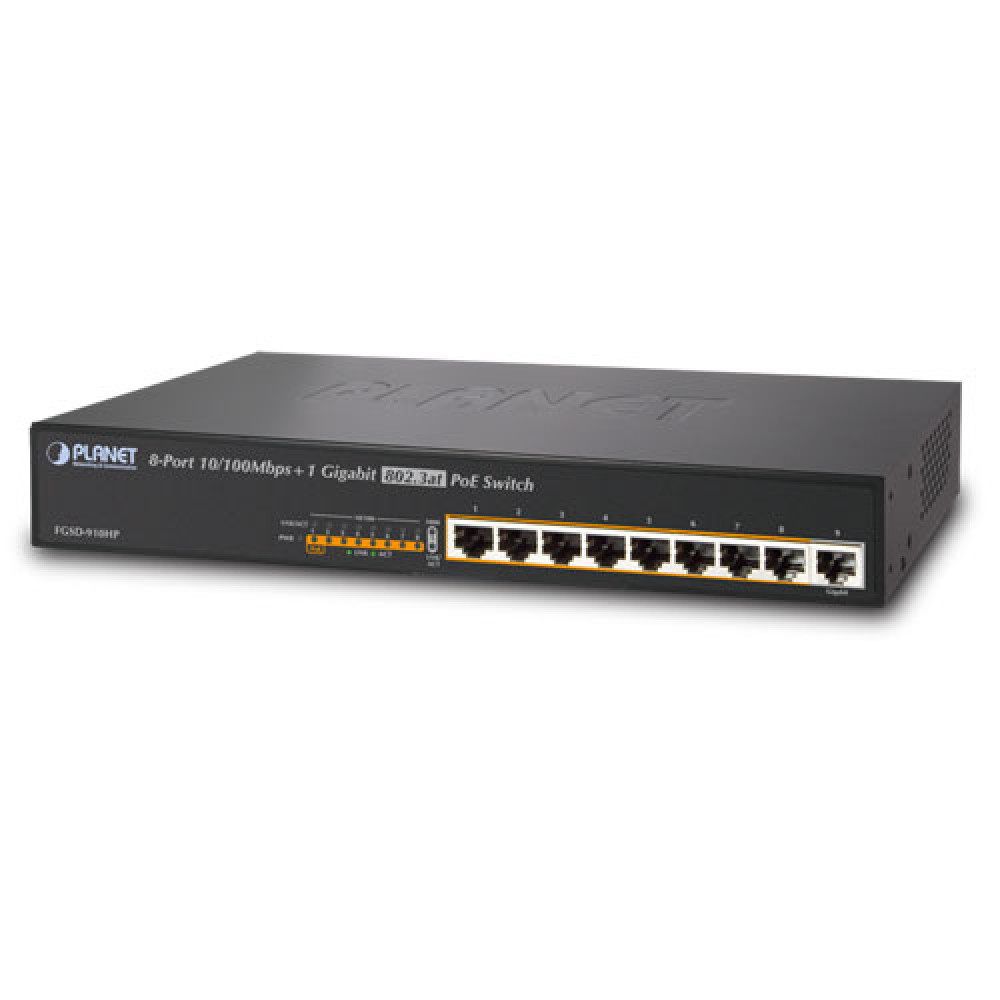

Planet - FGSD-910HP - 8-Port 10/100Mbps 802.3at PoE + 1-Port 1000Mbps Desktop Switch (130 Watts)
Part number:
FGSD-910HP
Price:
8-Port 10/100Mbps 802.3at PoE + 1-Port 1000Mbps Desktop Switch (130 Watts)
RJ-45 Interface
- 8-Port 10/100Mbps Fast Ethernet Switch
- 8-Port supports 56V DC power to PoE powered device
- 1-Port 10/100/1000Mbps Gigabit Ethernet Switch
Power over Ethernet
- Complies with IEEE 3af / 802.3at Power over Ethernet End-Span PSE
- Up to 8 IEEE 3af devices powered
- Supports PoE Power up to 15.4 watts for each PoE port
- Up to 3 IEEE 3at devices powered
- Supports PoE Power up to 30 watts for each PoE port
- 120-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
Switching
- Hardware based 10/100Mbps auto-negotiation and auto MDI/MDI-X (Port 1 to Port 8)
- Hardware based 10/100/1000Mbps auto-negotiation and Auto MDI/MDI-X (Port 9)
- Flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 4K absolute MAC addresses
- Automatic address learning and address aging
Hardware
- 12-inch desktop size, 1U height
- LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
- 1 silent fan to provide stable and efficient power
- performance
| Model | FGSD-910HP | |
| Hardware Specifications | ||
| Network Connector | 8-Port RJ-45 for 10/100Base-TX (Port 1 to Port 8) 1-Port RJ-45 for 10/100/1000Base-T (Port 9) | |
| PoE Inject Port | 8-Port with 802.3af / 802.3at PoE injector function | |
| LED Display | System: Power (Green) Per PoE port: PoE (Orange) LNK/ACT (Green) Gigabit port: Speed (Green) LNK/ACT (Green) | |
| Switch Architecture | Store and Forward switch architecture | |
| MAC Address Table | 4K MAC address table with Auto learning function | |
| Switch Fabric | 3.6Gbps | |
| Switch Throughput | 2.67Mpps@64Bytes | |
| Flow Control | Back pressure for Half-Duplex IEEE 802.3x Pause Frame for Full-Duplex | |
| Power Requirements | AC 100~240V, 50/60Hz, 2.5A max. | |
| Power Consumption | 130 watts / 443BTU | |
| Dimensions (W x D x H) | 280 x 180 x 43 mm, 1U height | |
| Weight | 1.7kg | |
| Power over Ethernet | ||
| PoE Standard | IEEE 802.3af / 802.3at Power over Ethernet / PSE | |
| PoE Power Supply Type | End-Span | |
| PoE Power Output | Per Port 56V DC, 350mA. Max. 15.4 watts Per Port 56V DC, 600mA. Max. 30 watts | |
| Power Pin Assignment | 1/2(+), 3/6(-) | |
| PoE Power Budget | 120 watts (at room temperature) | |
| Max. number of Class 1 PD | 8 | |
| Max. number of Class 2 PD | 8 | |
| Max. number of Class 3 PD | 8 | |
| Max. number of Class 4 PD | 3 | |
| Standard Conformance | ||
| EMI Safety | FCC Class A, CE | |
| Operating Environment | 0 ~ 50 degrees C | |
| Storage Environment | -10 ~ 70 degrees C | |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing | |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing | |
| Standard Compliance | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at | Ethernet Fast Ethernet Gigabit Ethernet Flow Control Power over Ethernet High Power over Ethernet |
