Hanwha - SBD-140PMW - Pole mount base. Compatible with: QNV-C8083R/C9083R, QNV-C8011R/C8012/C9011R, QND-6012R(1)/ 6022R(1)/6082R(1), QND-7012R/7022R/7082R, QNE-8011R/8021R, LND-6012R/6022R/6072R, ANE-L6012R/L7012R
Part number:
SBD-140PMW
Price:

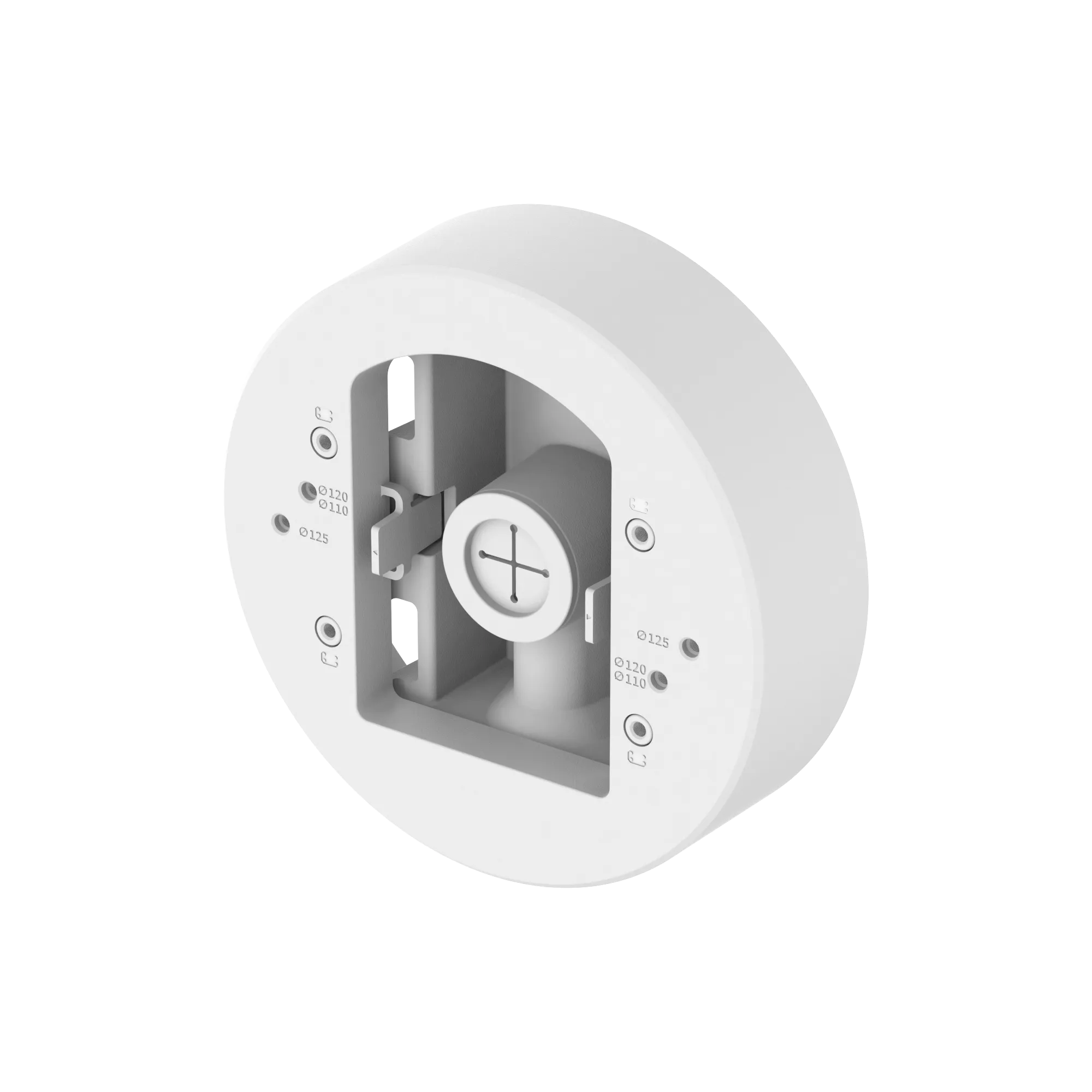

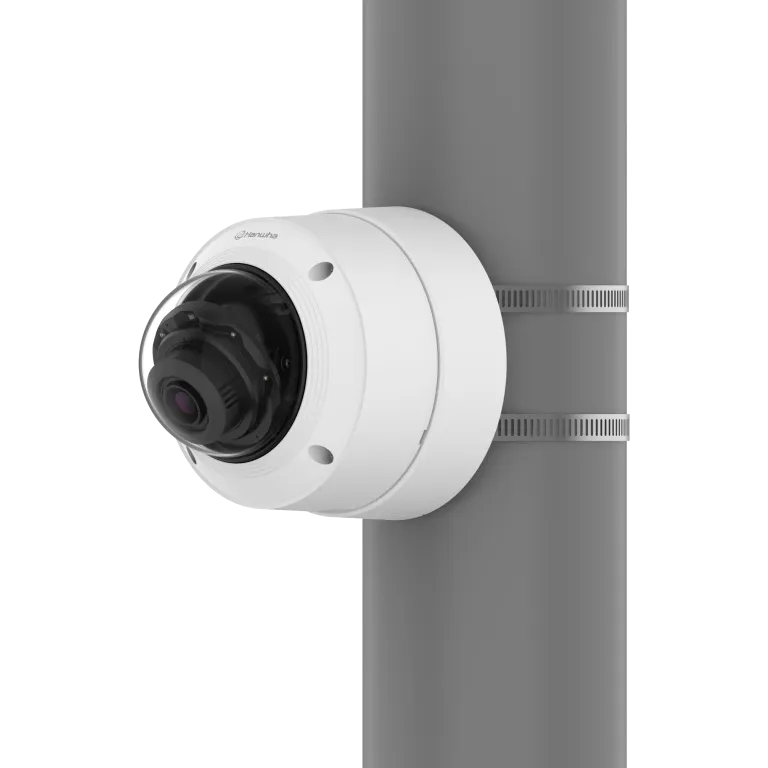

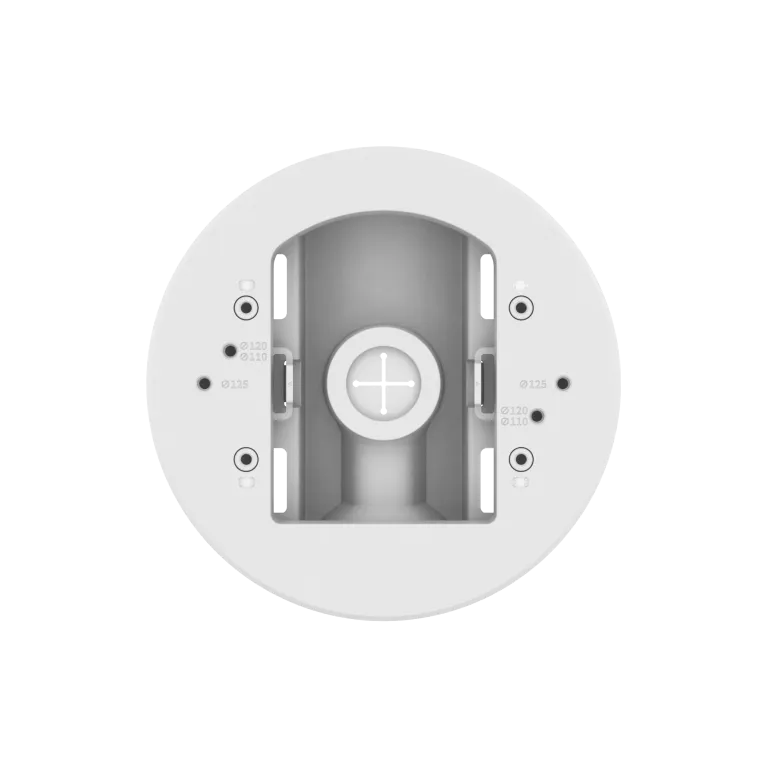

Pole mount base made of Aluminium, white color matched to camera body. Pole mount base. Compatible with: QNV-C8083R/C9083R, QNV-C8011R/C8012/C9011R, QND-6012R(1)/ 6022R(1)/6082R(1), QND-7012R/7022R/7082R, QNE-8011R/8021R, LND-6012R/6022R/6072R, ANE-L6012R/L7012R.
| Mechanical | |
| Color | White |
| Material | Core : Aluminum / Cap : Plastic |
| RAL code | RAL9003 |
| Product dimensions / weight | ø147.1x50.5mm(ø5.79x1.99"), 340g(0.75lb) |
| Mount Screw size | TR20 (for Camera), TR30 (Steel Strap) |
| Conduit hole | 19.1mm(3/4") (M25) |
| Supported products | QNV-C8083R/C9083R, QNV-C8011R/C8012/C9011R, QND-6012R(1)/22R(1)/72R(1)/82R(1), QND-7012R/22R/82R, QNE-8011R/21R, LND-6012R/22R/72R, ANE-L6012R/L7012R |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
