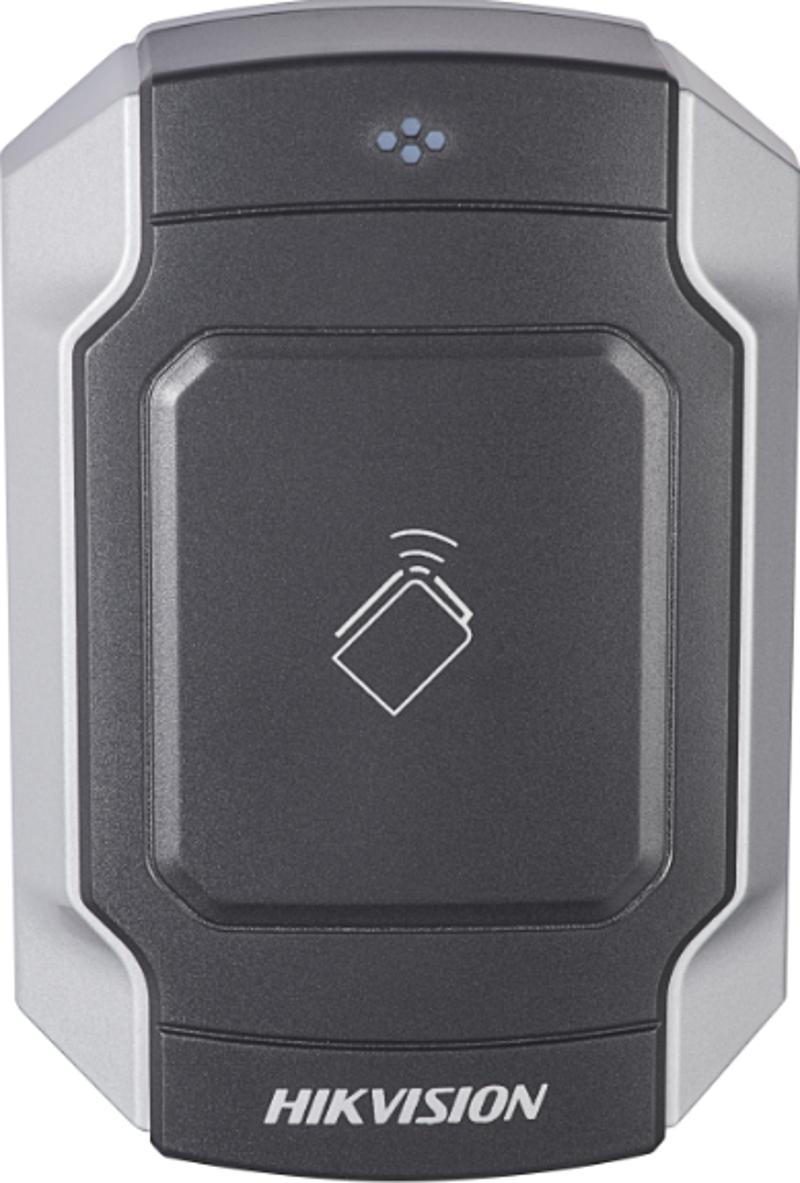

Hikvision - DS-K1104MK - Pro 1104 Series Metal Vandal-proof Card Reader
Part number:
DS-K1104MK
Price:
Pro 1104 Series Metal Vandal-proof Card Reader
Features:
- M1 card reader
- PC+zinc-alloy material shell
- Built-in audible beeper
- RS-485 and Wiegand interface
- IK10
| Specification | |
| Authentication | |
| Card reading frequency | 13.56MHz |
| General | |
| Power supply | 12 VDC, ≤ 500 mA |
| Power consumption | ≤ 2 W |
| Working temperature | -20 °C to 65 °C (-4 °F to 149 °F) |
| Working humidity | 10% to 90% (no condensing) |
| Dimensions | 118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91") |
| Installation | Applied for 86 & 120 Gang Box |
| Weight | ≤ 0.52 kg (1.1 lb) |

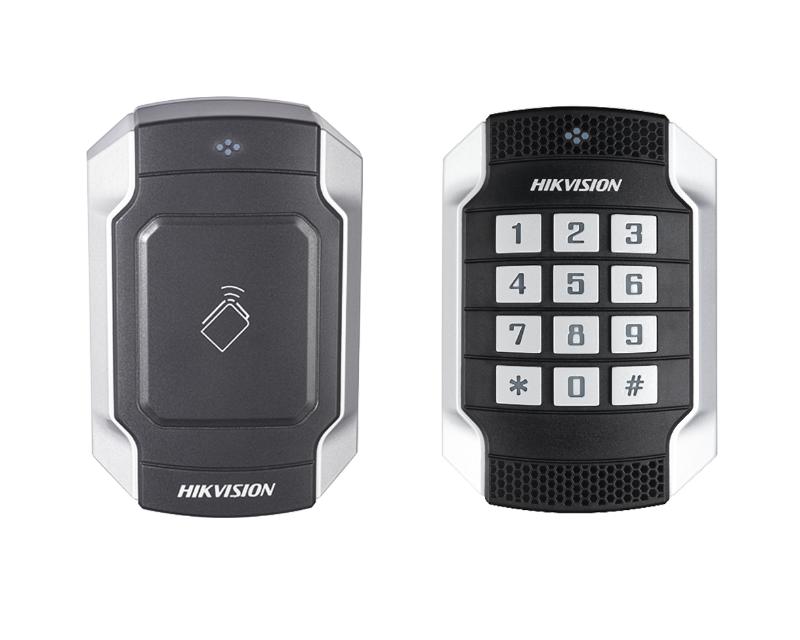

| Keypad | DS-K1104M: No keypad DS-K1104MK: Keypad with 12 keys (0 to 9, *, #) |
| Buzzer | Support |
| Function | |
| ID settings | via DIP Switch |
Name
Description
Size
Downloads
File
Data Sheet
0.8mb
File
User Manual
0.9mb
