ELK - P1215 - Pwr Supply & Charger Bd Kit 1.5A @12VDC
Part number:
P1215
Price:

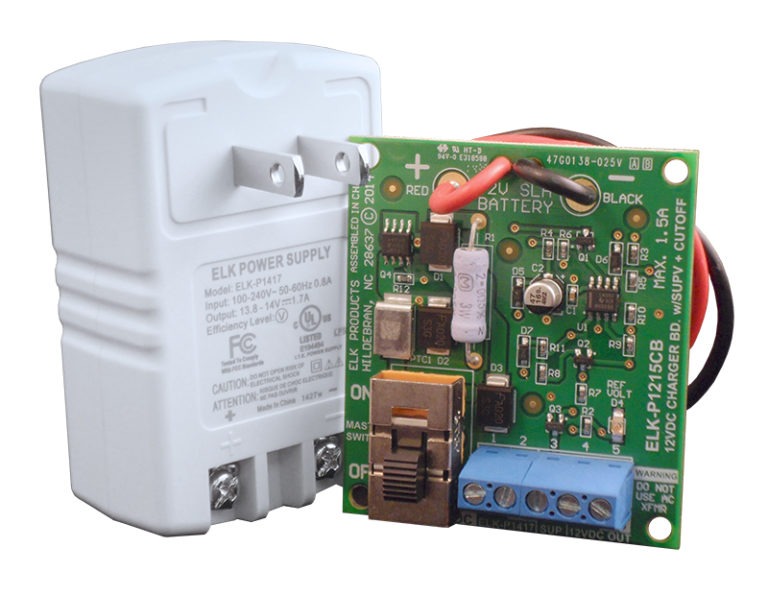

The ELK-P1215 Power Supply/Battery Charger is a plug-in 14VDC Power Supply (ELK-P1417) combined with an intelligent Charger Board . It can supply up to 1.5 Amps of current at 12VDC (nominal). The charger board features a Low Battery Supervision output, Low Battery Cutoff, as well as a Manual On/Off switch. The Power Supply features built-in overload reset and screw terminals for connections.
Features:
- Auto-Resetting Overload Protection
- Built-In Battery Charging Circuit
- Low Battery Trouble Output
- Low Battery Deep Discharge Cutoff Protection
- Master Power Switch
- Lifetime Limited Warranty
- Intelligent Power Supply/Charger Board
- ELK-P1417 1.7A, 14Vdc Plug In Power Supply
- Instructions
| Battery Wire Length | 16" with F1-Faston No. 187 Receptacles |
| Power Supply Input | 14 Volts DC provided by ELK-P1417 |
| Continuous Output Current | 1.5 Amps |
| Low Battery Trouble | 11 Volts. (nominal) |
| Low Battery Cutoff | 9 Volts. (nominal) |
| PC Board Size | 2.25" X 2.5" (57.15mm X 63.5mm ) |
| Standby Battery Charging Capacity | 1 to 12 Ah, Sealed Lead Acid |
