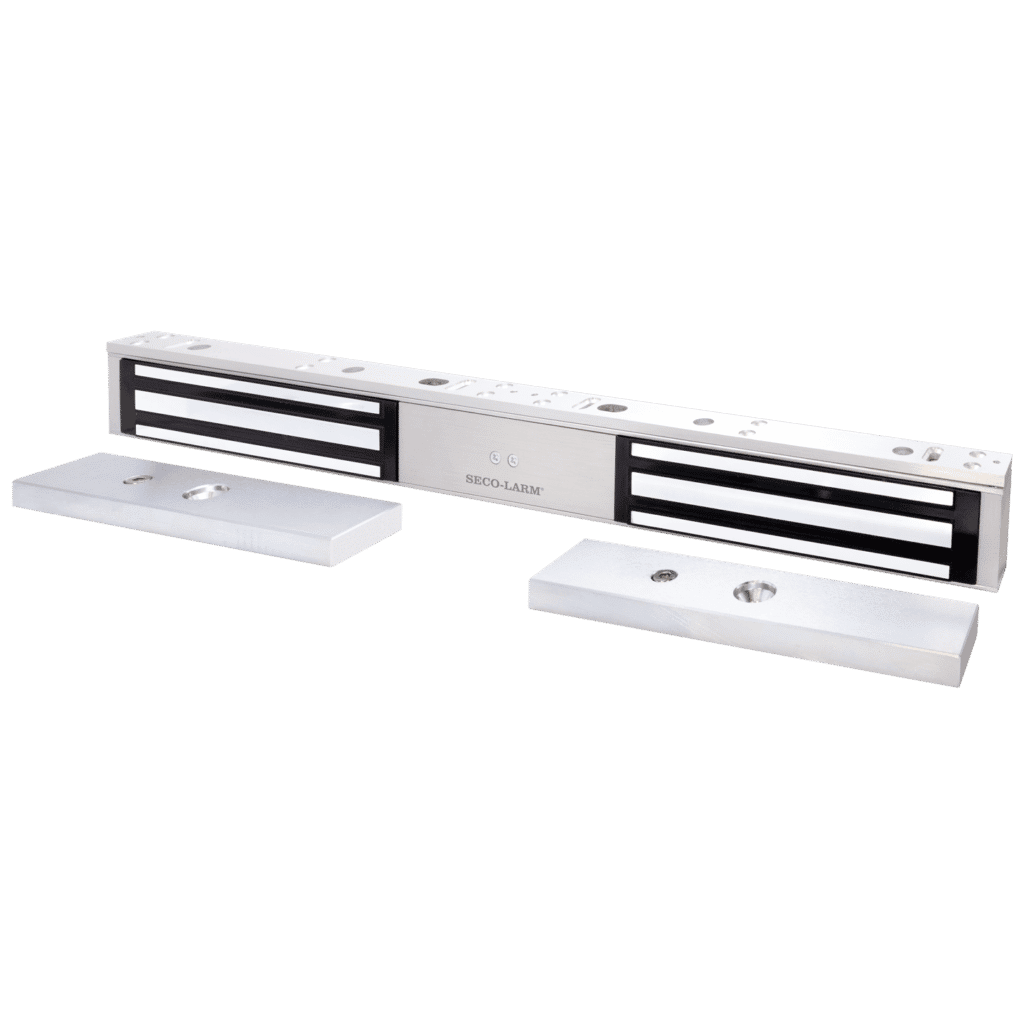

SECO-LARM - E-941DA-600Q - Double-door Electromagnetic Lock with 600-lb (272kg) holding force per door. 12 or 24 VDC operation. UL, CUL listed. Sold in multiples of 2 (price is for 1 pc).
Part number:
E-941DA-600Q
Price:

Double-door Electromagnetic Lock with 600-lb (272kg) holding force per door. 12 or 24 VDC operation. UL, CUL listed. Sold in multiples of 2 (price is for 1 pc).



The E-941Dx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.



Features:

  • 600-lb (272kg) Holding force per door
  • No residual magnetism
  • MOV Surge protection
  • Anodized aluminum housing (US 28)
  • Adjustable mounting bracket
  • Complete mounting hardware for typical installations

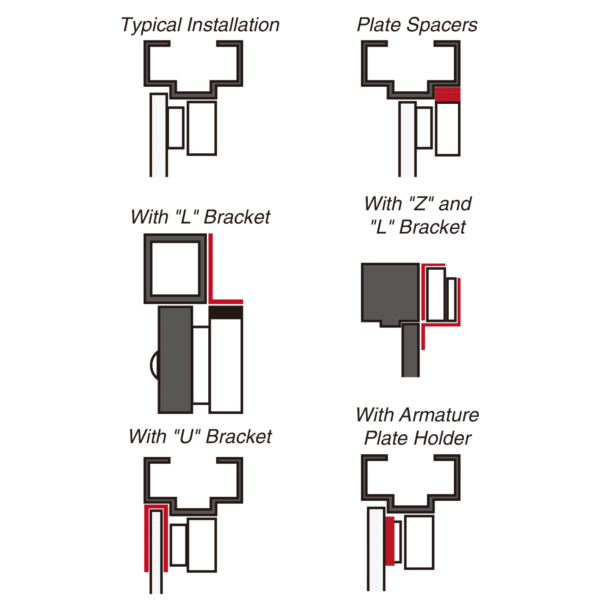

  • Additional brackets available for easy mounting or atypical situations
  • Detachable faceplate for easy access to wiring
  • 12/24VDC Selectable
  • Multiple UL listings
    •
      • UL294 Access Control System Units – USA
      • UL10C Positive Pressure Fire Test – USA
      • UL10B Fire Test of Door Assemblies – USA
      • ULC-S104 Fire Test of Door Assemblies – Canada



Holding force600-lb (272kg) per door
Operating voltage12 /24 VDC (selectable)
Current draw500mA@12VDC per door (1A total) 270mA@24VDC per door (540mA total)
Operating temperature32º~120º F (0º~49º C)
Electromagnet dimensions19-11/16″ x 1-5/8″ x 1-1/16″ (500x40x26 mm)
Armature dimensions7-1/4″x1-1/2″x1/2″(185x38x12 mm)
Weight9-lb (4kg)
Destructive attackLevel I
Line securityLevel I
Standby powerLevel I
EnduranceLevel IV
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
Manual
1.3mb
