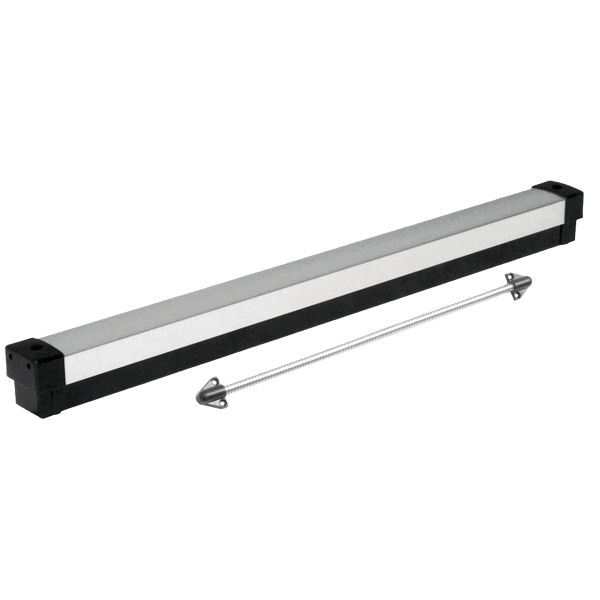

SECO-LARM - SD-961A-36 - Push-to-Exit Bar for 36" doors. Brushed aluminum with a black base. Includes two built-in momentary contacts (NO/NC) and SD-969-A18 armored door cord.
Part number:
SD-961A-36
Price:

Push-to-Exit Bar



Features:

  • New end caps come off and go on in seconds
  • Designed to allow egress from inside an area normally locked by an electric lock or electromagnetic lock, and/or to disarm (shunt) or trigger an alarm when the door is opened
  • Rugged, heavy-duty construction
  • Pushing the bar at any point sends a signal to release the lock and/or sound an alarm
  • For 36 inch doors (actual length is 34.5 inches)
  • Includes 2 built-in non-latching (momentary), dual-contact switches (NO/COM/NC), rated 25A@24VAC
  • Attractive brushed-aluminum bar with black base and trim
  • Includes SECO-LARM SD-969-A18Q Armored Door Cord, and mounting hardware (for mounting in wood or metal doors)
  • Designed for easy cutting in field to match width of non-standard-sized doors
Circuit Type2 Built-in momentary dual contact NO or NC contacts
Contact Rating25A@24VAC
Door SizeFor 36” doors (actual size: 34-1/2”)
Dimensions34-1/2”x2-3/4”x2-13/32” (876x70x61 mm)
Weight7-lb (3kg)
