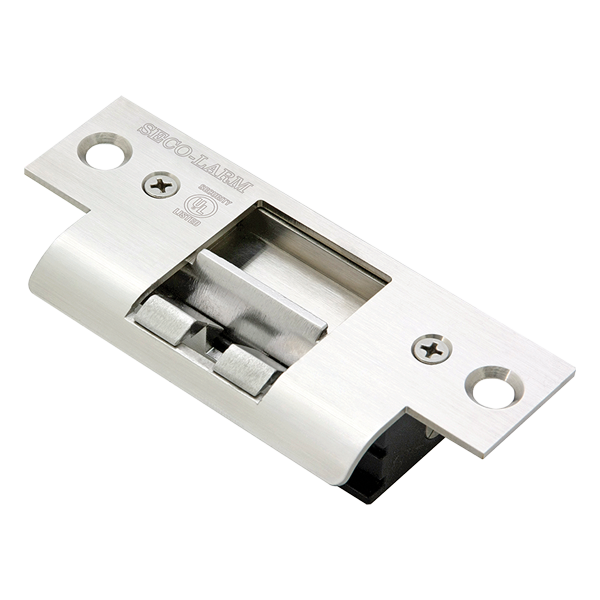

SECO-LARM - SD-995C-D3Q - No Cut Door Strike
Part number:
SD-995C-D3Q
Price:

The SECO-LARM Electric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. Combine with an optional SECO-LARM® digital keypad for keyless high security.



Features:

  • UL 1034 Listed
  • Field-selectable for fail safe or fail-secure operation
  • Can be used with virtually any cylindrical door locking system
  • Can use with an optional digital keypad
  • Suitable for office-type applications
  • Reversible non-handed design fits either right hand or left-handed doors
  • Shallow design for use with most metal doors
  • Powered by a solenoid, not a buzzer coil
  • Static strength – 1,500 lbs. (680N)
  • Stainless-steel keeper for strength and long life
  • Non-polarized connection
  • Tested to 100,000 cycles (UL Tested)
  • No horizontal or vertical adjustment
Operating Voltage12/24 VDC
OperationFail-secure or Fail-safe
Current Draw300mA@12VDC, 150nA@24VDC
Static Strength1,500 lbs. (680kg)
Dynamic strength70-ft-lbs. (9.68 m-kgs)
Operating Temperature32°F~120°F (0°~49° C)
Dimensions4-7/8″x1-1/4″x1-1/16″ (124x32x27.5 mm)
