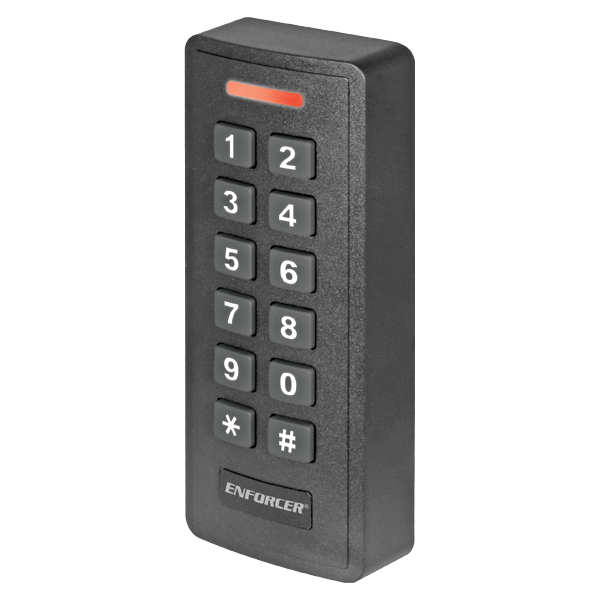

SECO-LARM - SK-2612-SPQ - Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader
Part number:
SK-2612-SPQ
Price:

The ENFORCER Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader is an advanced security solution that offers both efficiency and convenience. This versatile device can function as a stand-alone controller or a Wiegand reader. The keypad’s unique feature of adding multiple cards in bulk at once significantly streamlines access control management in large organizations.



Features:

  • 1,000 Users (up to 998 users and 2 duress users)
  • User code length 4~6 digits
  • 9~18 VDC Operation, low current draw – 105mA max.
  • Form C relay output – 2A@12VDC
  • Adjustable output time – 0.5~99s, or toggle
  • Built-in tamper alarm and external alarm (duress) output
  • Backlit keypad and multicolor status LED
  • EM 125kHz, Proximity cards (PR-K1S1-A) and Keyfobs (PR-K1K1-AQ) sold separately
  • Easy transfer of users to additional devices using Wiegand output
  • All features programmed directly on the keypad: No need for an external programmer
  • Egress input lets users exit the premises without a code/card
  • Can serve as either Wiegand reader or controller, both output and input are selectable 26~37 bits
  • 2-Door interlock function
  • Extreme cold tolerance to -40° F (-40° C)
  • Epoxy-filled black ABS plastic housing –Weatherproof IP66
IP RatingWeatherproof IP66
Operating Voltage9~18 VDC
Current Draw – Standby40mA@12VDC
Current Draw – Active105mA@12VDC (max.)
Output – Form C2A@12VDC
Output – Alarm2.5A@12VDC
Output – Wiegand26~37 bits, PIN output bits – 4, 8, or 10
Input – EgressN.O. Ground
Input – Door SensorN.C. Ground
Input – Wiegand26~37 bits, PIN input bits – 4, 8, or 10
Card typeEM 125kHz
Enclosure / IP RatingBlack ABS plastic
Operating temperature-40°~140° F (-40°~60° C)
Operating humidity10~90% non-condensing
Dimensions1-15/16″x4-3/4″x15/16″ (49x120x24 mm)
Weight5.8-oz (165g)
