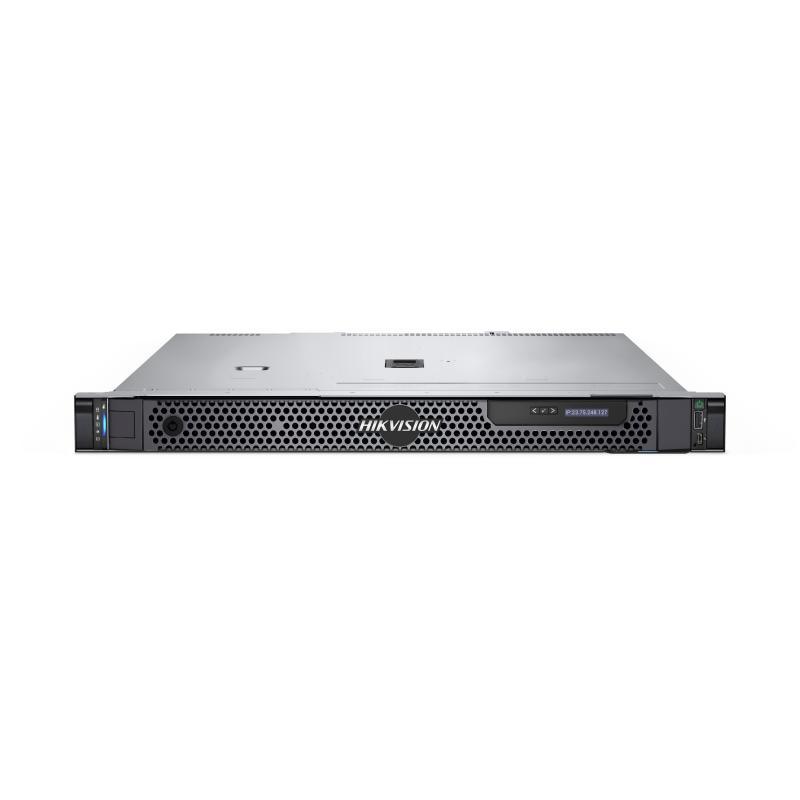

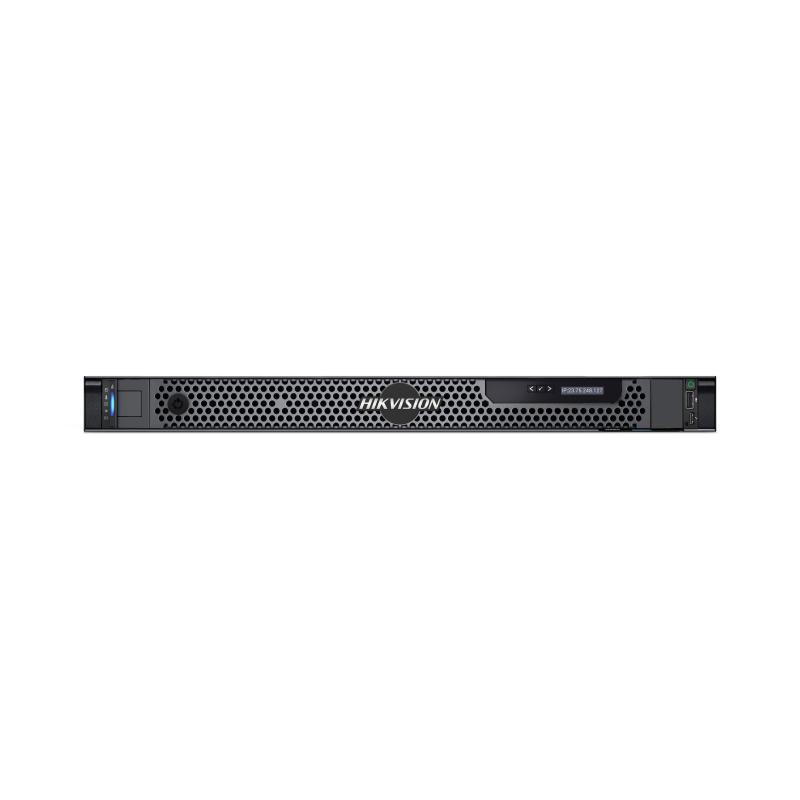

Single-socket Rackmount Server
Features:
- Innovate at scale with challenging and emerging workloads, purpose-built for growing scale-out solutions,
- Outmaneuver threats with intelligence, automation, and recovery tools that include iDRAC9 Telemetry, BIOS live scanning, and Rapid OS recovery
- Supports multiple management models, best to manage your device.1:1 or 1:Many; Full remote control and management functions
- Feature-optimized server with ideal selection of CPU, I/O, and storage performance for scale-out environments to meet data needs, suitable for various scale scenarios
| Specification | |
| Hardware Specifications | |
| CPU | E-2324G×1， 3.1 GHz, 8 MB Cache， 4 Cores, 4 Threads |
Memory | Standard Config：1 × 16GB UDIMM，3200MT/s Scalability：4 × 128GB UDIMM |
Hard Disks | Standard Config：2 × 1TB HDD Scalability：2 × 22TB 3.5inch SATA HDD |
Storage Controller | Standard Config：PERC H355 adaptor LP (support RAID 0/1) Compatibility：Independent SAS hardware RAID card ( support RAID 5/10 ), ≥ 8GB cache |
| Supported Operating Systems | WinSvr2019 multilingual version pre-installed |
| PCIe Slots | Two Slots Capability： 1 x X8 Semi-high Gen 4 PCle slots； 1 x X8 Semi-high Gen 4 PCle slots |
| Management | |
| Remote Manage | iDrac9 Enterprise with Lifecycle Controller |
| OpenManage™ Software | Support OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager) |
Integrations and Connections | Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible; Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus |
| Security | Support Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter); |

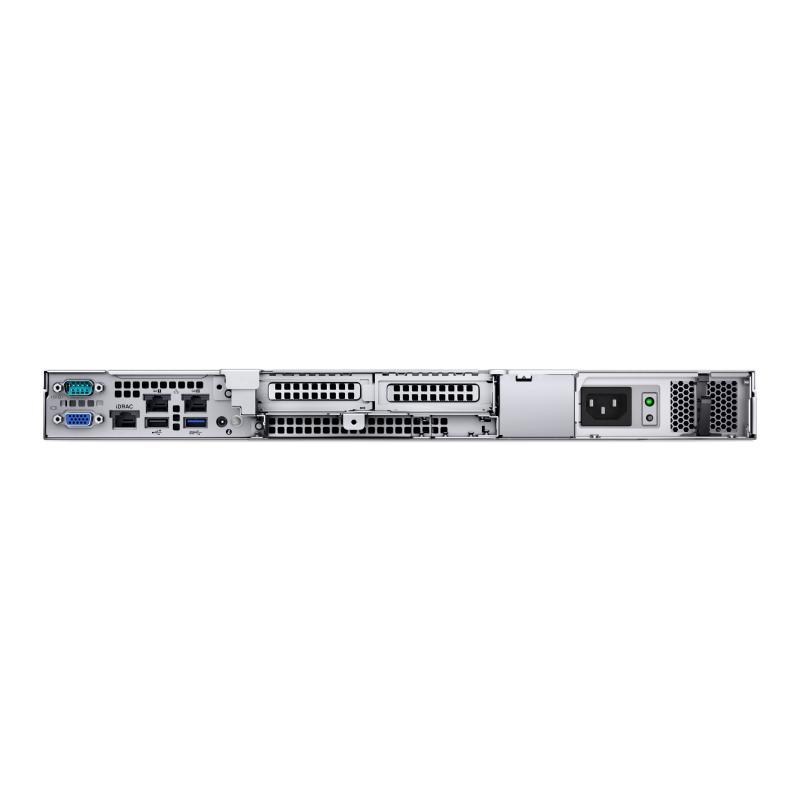

| Ports | |
| USB 3.0 | 0（Front）+1（Rear） |
| USB 2.0 | 1（Front）+1（Rear） |
| Ethernet Port | 2× LAN10/100/1000 |
| VGA | 1 |
iDRAC Direct (Micro-AB USB) Port | 1 |
| iDRAC Ethernet Port | 1 |
| General | |
| Net Weight | 12.2 kg (26.9 lb) |
| Gross Weight | 18.5 kg (40.79 lb) |
| Dimension (W × H × D) | 482.0 mm × 42.8 mm × 598.64 mm (18.97'' × 1.68'' × 23.56'') |
| Package Dimensions (W × H × D) | 595.0 mm × 251.0 mm × 923.0 mm (23.43'' × 9.88'' × 36.34'') |
| Operating Temperature | 10 °C to 35 °C (50 °F to 95 °F) |
| Storage Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Operating Humidity | 8% to 80% (no condensation) |
| Storage Humidity | 5% to 95% (no condensation) |
| Power Supply | ≥450 W(Bronze)，50/60 Hz，100-240 VAC (Auto adjustment)，6.5-3.5 A |
