Outdoor, eye safe invisible infra-red Laser Sensor Detector with a Detection Range up to 1640 ft., 905nm, 20 Programmable independent alarm zones, Alarm and Relay Output, Built in web browser interface for easy setup and direct Integration with DW Spectrum IPVMS, Power over Ethernet (48V DC) or 12 V DC, IP66, 1 Year Warranty.

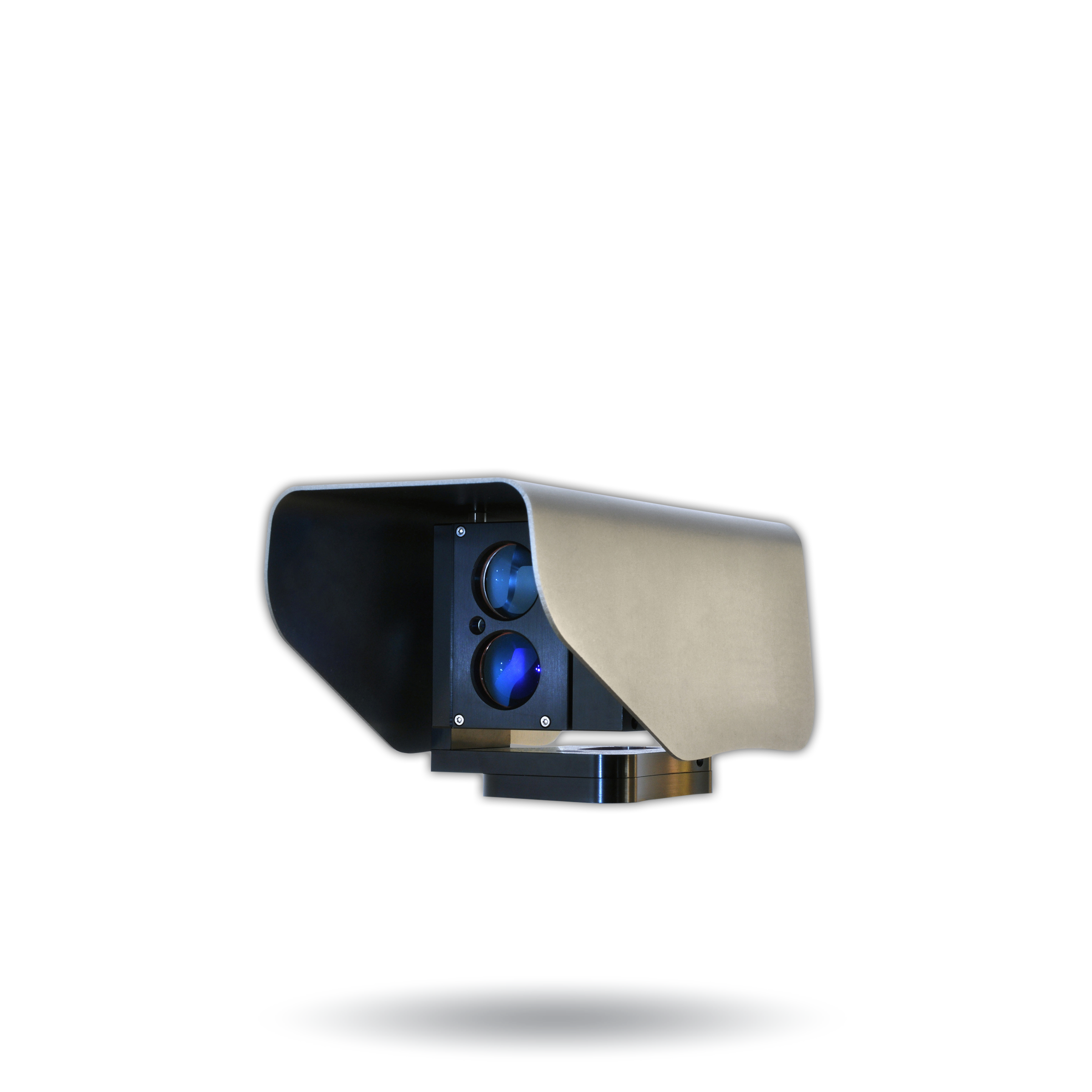

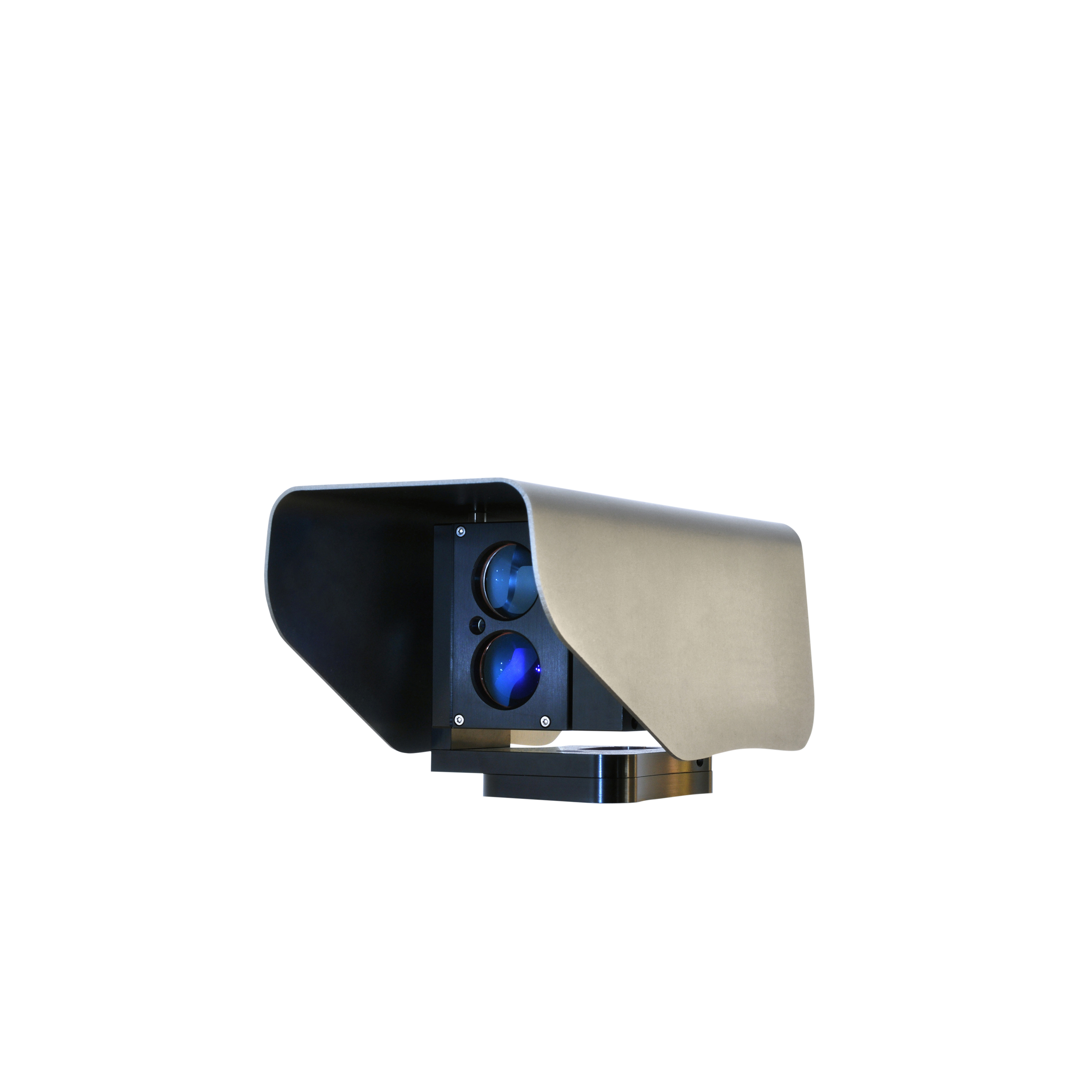

The DW-DTLA500 is a laser surveillance sensor that allows the user to monitor and locate intrusions for applications where physical fences are not desirable, possible or where enhanced security is required. The 1640ft (500m) sensor works without reflectors and reacts in fractions of a second.
The DW-DTLA500 SiteWatch sensor knows the exact position of an object and offers adaptive alarm settings. For example, the sensor can be set to react only to cars in a specific lane and alarm if an object has stopped or if a door opens, while ignoring all over activities.
Using PoE and IP communication, the SiteWatch detectors support direct integration with DW Spectrum IPVMS.
Features :
- SiteWatch surveillance sensor
- 0 - 1640ft (500m) detection range
- Exceptional resistance to false alarms
- 20 Fully adaptable alarm zones to meet any situation
- IP alarms and relay output
- Alarm notifications
- 905nm wavelength
- Web Interface built-in
- PoE class 2 and DC48V
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
| Specification | |
|---|---|
| VMS features | |
| Alarm actions | Automatic video recording Network alarm, relay Object position PTZ control |
| Alarm zones | Up to 20 fully adaptable zones, each zone has individual alarm sensitivity settings and alarm actions. |
| Alignment laser | Yes |
| Beam divergence | 2.0 x 2.0 mRad |
| Detecion resolution | +/- 1 dm |
| Detection range | 0 - 1640ft (500m) |
| Field of application | Outdoor surveillance and monitoring |
| Laser class | Class 2 laser product Eye-safe |
| Mounting | 2 x M6 - common standard 2.87” (73mm C-C) 4 x M5 - Axis compatible 1.57” x 2.44” (40 x 62mm) 4 x M5 - Bosch compatible 2.87” x 1.61” (73 x 41mm) 5/8”-11 UNC (tripod mount) |
| Performance Remote software | DW Spectrum® |
| Performance Web viewer | Internet Explorer® browser No software or installation needed Web browser user interface Windows OS |
| Relay switch | Max 30V 200mA NC and NO |
| Self awareness | Adaptive digital processing algorithm suppresses noise from fog and snow Detects challenging weather to allow alarms to DW Spectrum |
| Update rate | 250 Hz |
| Wavelength | 905 nm |
| Electrical | |
| Power Consumption | 4W |
| Power Requirements | 12V DC PoE TCP/IP |
| General | |
| Housing | Sensor: black Shell: gray |
| IP rating | IP66-rated in accordance with IEC/EN 60529 |
| Operating temperature | -22°F to +140°F (-30°C to +60°C) |
| Recorder Dimensions (H X W X D) | 5.11" x 4.72" 9.84" (130 x 120 x 250mm) |
| Warranty | 1 year warranty |
| Weight | 5.29 lbs (2.4 kg) |
