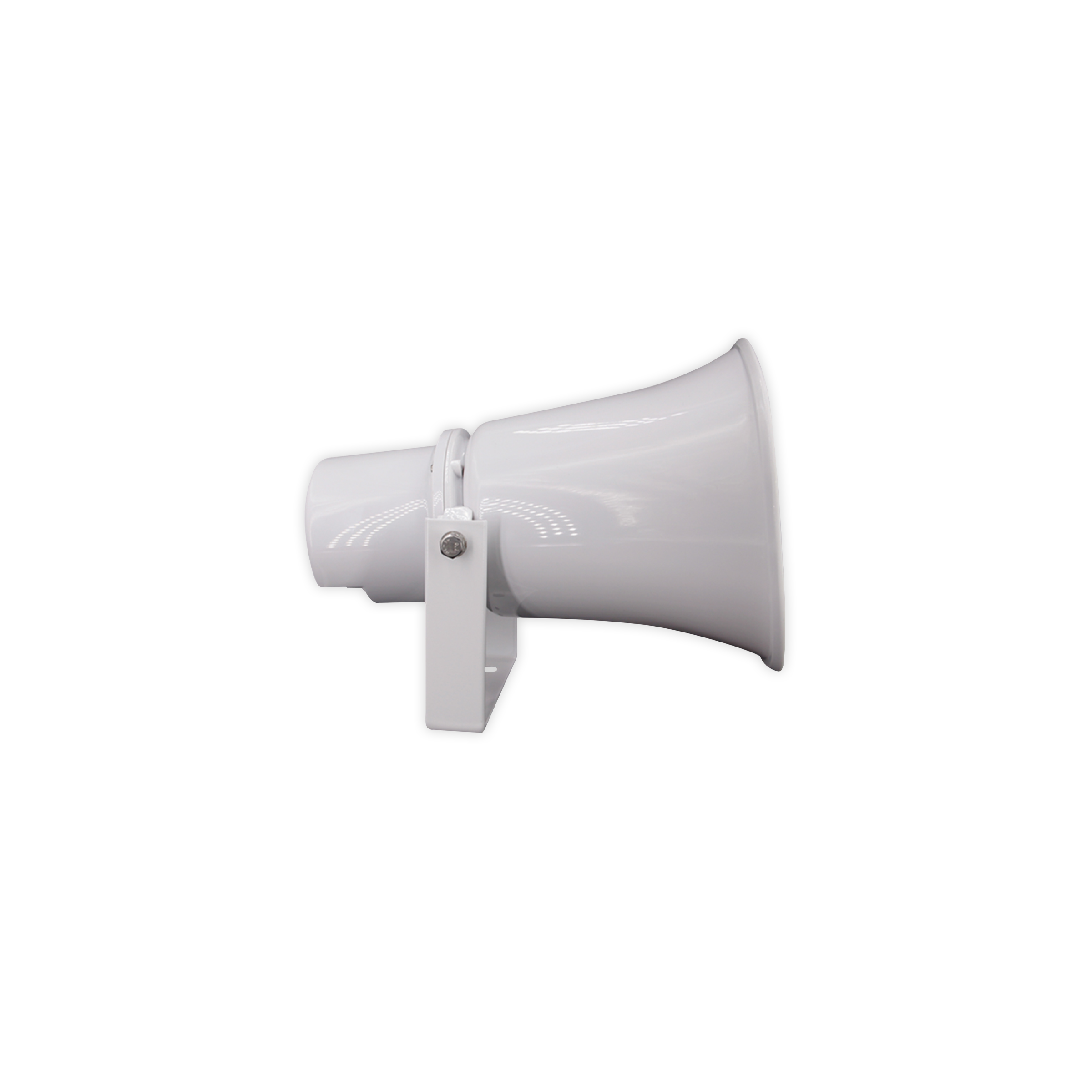

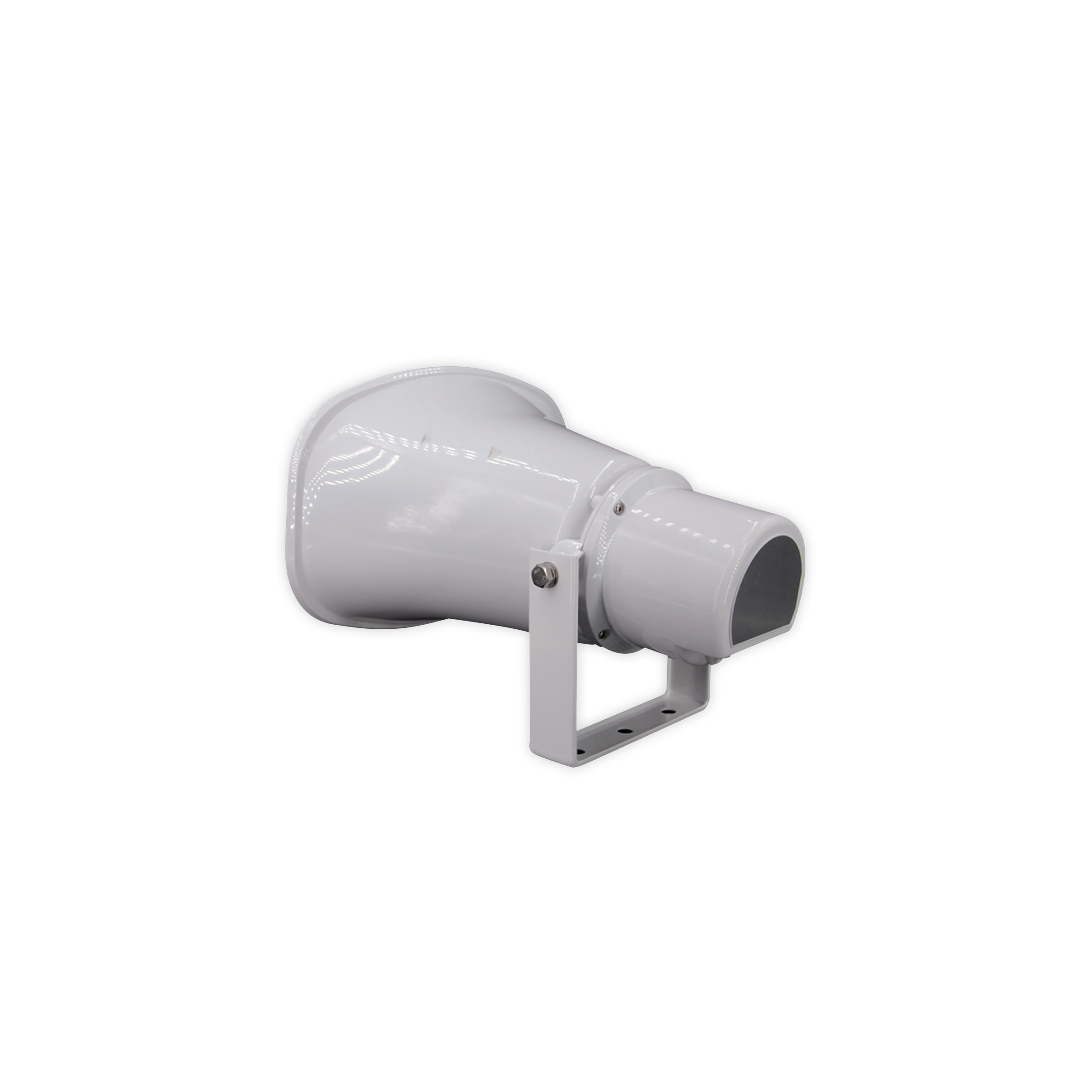

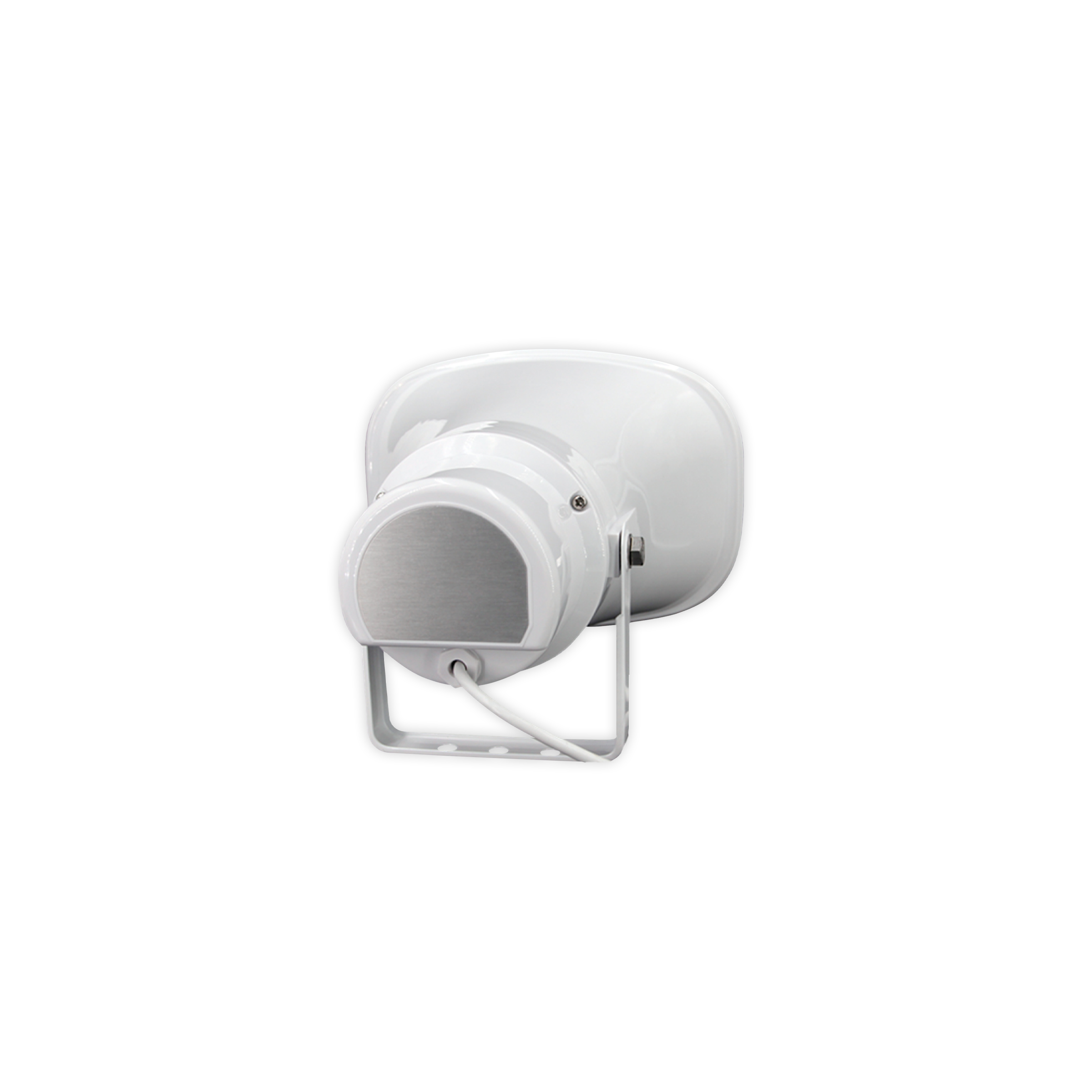

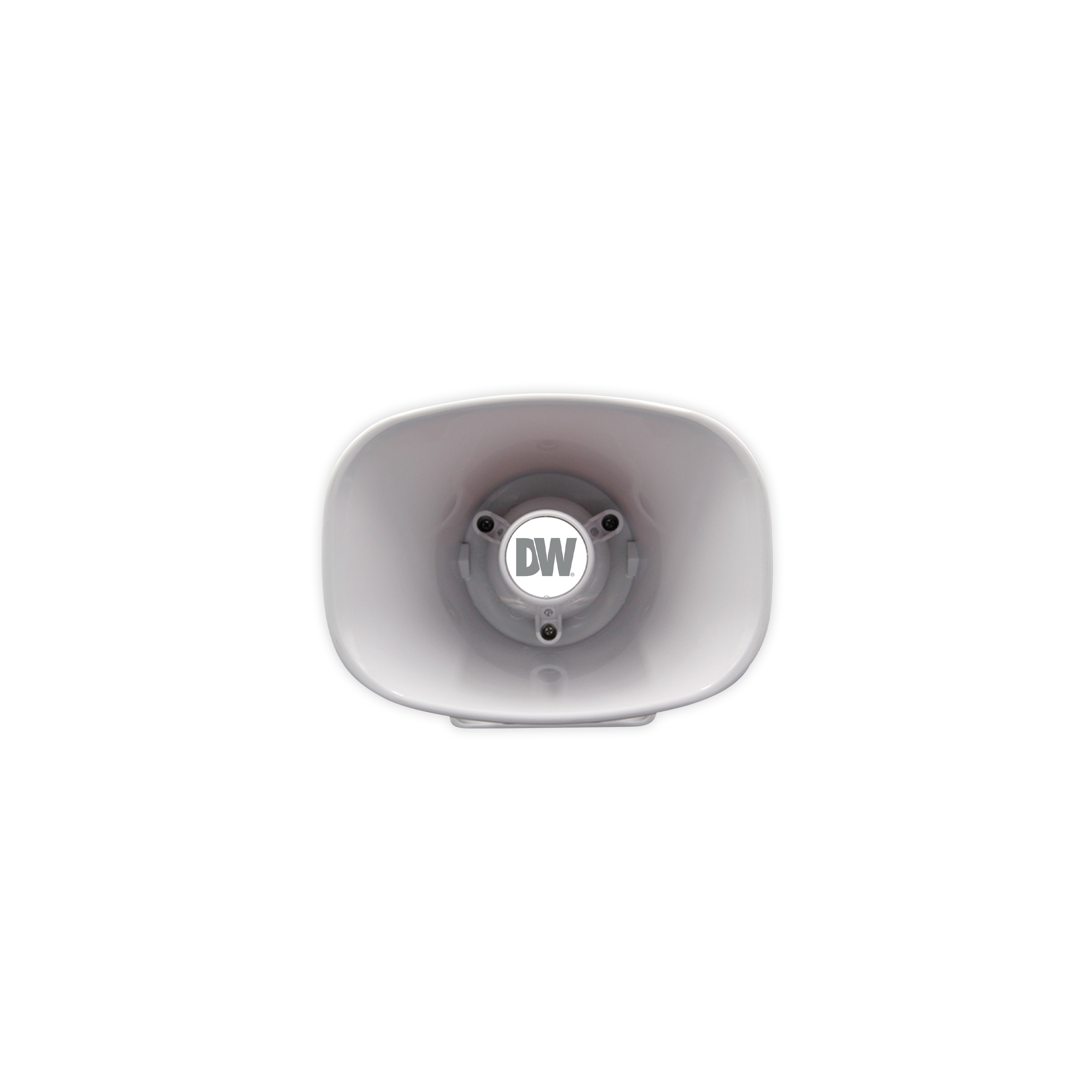

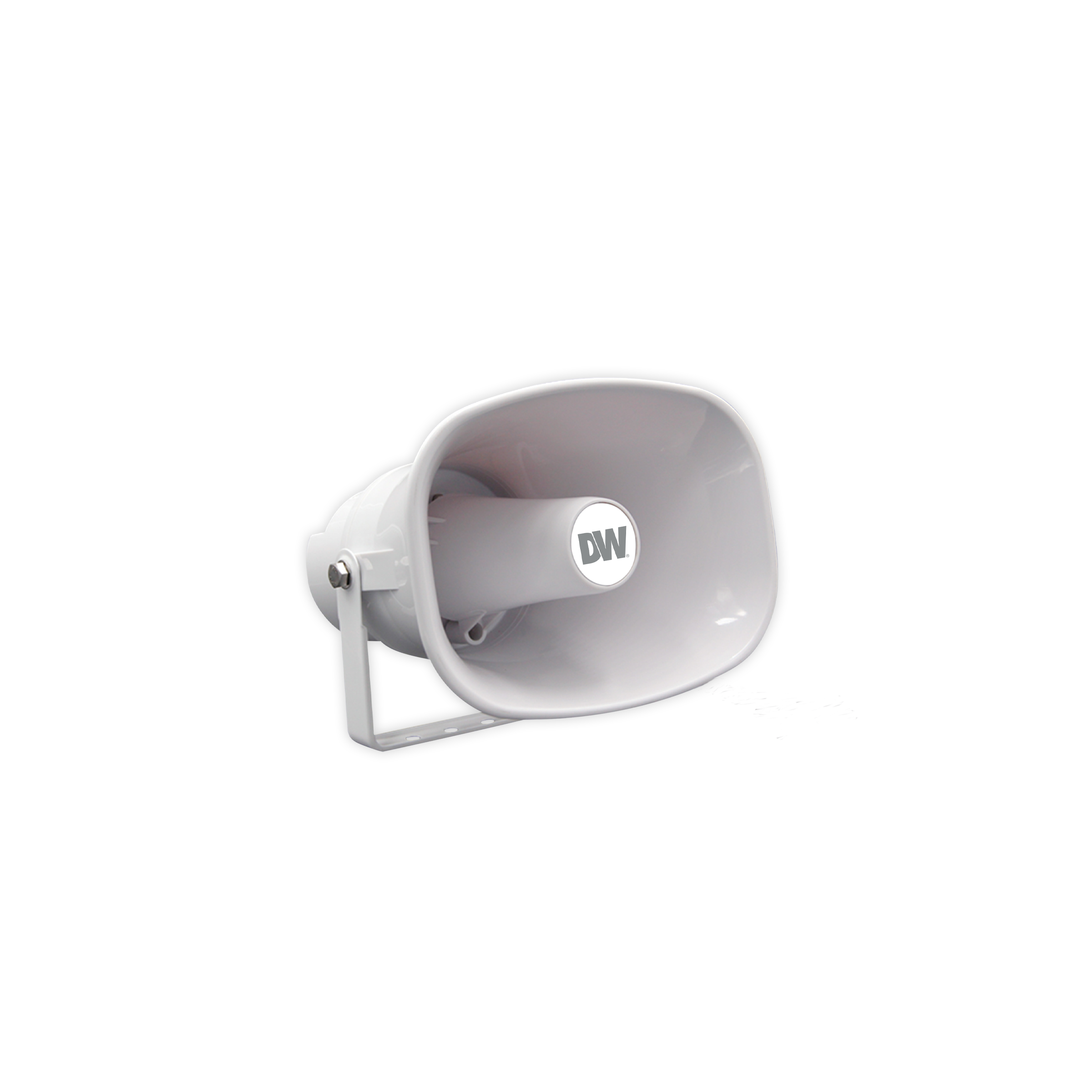

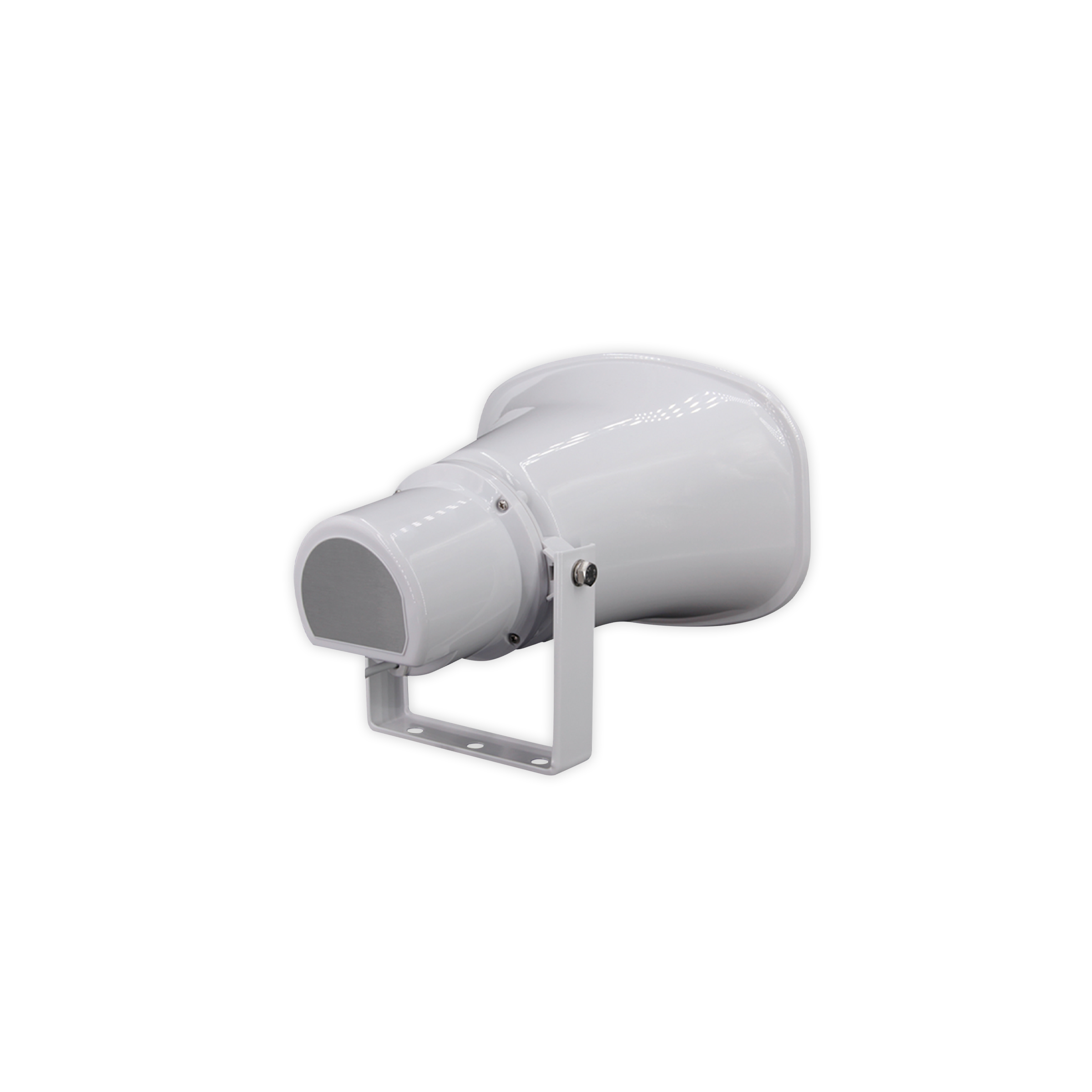

Digital Watchdog - DW-SWSP15A - Smart Audio IP Horn Speaker
Part number:
DW-SWSP15A
Price:

IP Horn Speaker, 15W, 113dB,300Hz, Built in 15W Amplifier, Codec(OPUS,MP3,G.722,PCMU-PCMA),120Mbps, Alarm Input, Onvif, PoE and 12V/24V, IP67, 2 Year Warranty.


All-in-One Speaker
DW's all-in-one speakers are designed with powerful amplifiers and signal processing (DSP) to ensure that every voice message is clear and easy to understand. The speaker has an on-board memory that can store pre-recorded voice messages, music, and alerts.


No Noise or Audio Distortion
DW's speakers provide clear and audible speech and audio and come with a preconfigured, built-in digital signal processor (DSP) that ensures live speech and prerecorded audio can be heard clearly, even from a distance.


Flexible and Scalable Solution
DW's speakers are designed to support Power over Ethernet (PoE) for a simplified installation process. The speakers transmit data and receive power through a single cable, making it easy to integrate with your existing surveillance, Voice over IP (VoIP) telephony (via SIP), and event management via DW Spectrum. As a standalone product, the speaker can be placed anywhere you need it.


Audio for safety
Use pre-recorded and live messages as part of your warning and crucial safety system in emergencies. The horn speaker can deliver up-to-the-minute information and guide the public and your workforce in emergencies.


Audio for deterrence
Combine DW’s horn speaker with video and alarm systems to create deterrence and prevent crime or damage to your property. Audio adds value to your security system with real-time responses to suspicious behavior at the scene.


Audio for operations
The horn speaker is a cost-effective solution for delivering non-emergency messages to public areas, supporting and helping streamline your operations and offering public addresses, guidelines and announcements.


Features:

  • All-in-one IP speaker system
  • Compatible with IP cameras via DW Spectrum IPVMS
  • Compatible with VoIP devices (IPPBX, IP Phone) via SIP
  • Support pre-recorded messages, live responses, alarms and background music
  • Alarm input
  • Schedule audio alerts
  • Support HTTP API for alarm-in transmit
  • Web server built-in
  • ONVIF conformant
  • PoE Class 3 and DC12V-24V
  • Wall mount bracket included
  • IP67 dust-tight and waterproof to 3 feet
  • 2 year warranty
Specification
Audio
CodecG.711 PCMA 8 kHz
G.711 PCMU 8 kHz
G.722 ADPCM 16 kHz
MP3 44.1 kHz
OPUS 48 kHz
Hardware
Max throughput (Mbps)120Mbps
Mounting Accessories
OperatingPoE or DC 12-24V
Rate power15W
MaterialABS
ColorWhite
Working Temperatures-22°F ~ 140°F (-30°C ~ 60°C)
Working humidity5%~85%
Mounting optionsFully adjustable (left, right, up & down)
Wall
Indoor
Outdoor
Warranty2 year warranty
Included accessoriesMounting screws
QSG
Waterproof Cap
Wall mount screws
Accessory Weight2.86 lbs (1.3 kg)
Speaker
AmplifierBuilt-in 15W amplifier
Frequency range400-12KHZ +-20dB
500-2KHZ +-10dB
Frequency response300Hz~8KHz
Harminoc distortion0.1@1kHz
Max SPL113dB
Signal to noise ratio91dB
Network
Network interface10/100 Base-TX
RJ54
Network ProtocolsARP
DHCP
FTP
HTTP
IPv4
NFS
NTP
ONVIF
RTCP
RTP
RTSP
SIP
TCP
TFTP
UDP
SecurityDigest authentication
Firewall
IP address filtering
Password protection
User access log
VoIP2 SIP accounts, SIP direct IP call, RTP multicast
Support for SIP protocol for integration with VoIP systems, integrated with SIP/PBX
Mechanical
IP ratingWeather Resistant (IP67)
General
