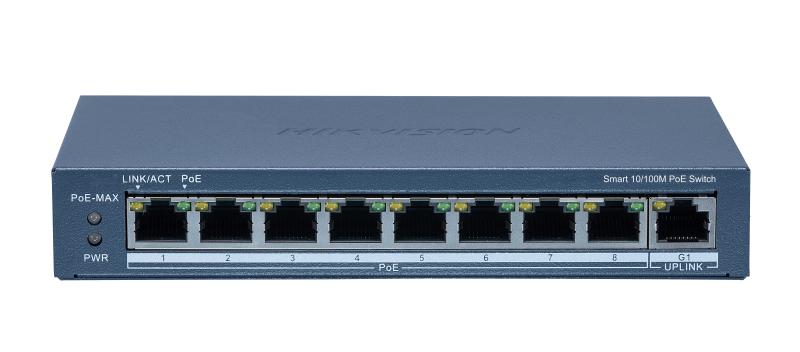

Hikvision - DS-3E1309P-EI - Smart Series 8-ch PoE Switch
Part number:
DS-3E1309P-EI
Price:

8 Port Fast Ethernet Smart POE Switch



Features:

  • 8 × 10/100M PoE ports,1 × Gigabit RJ45 port
  • Total PoE Power Budget 110 W
  • Support 802.1Q VLAN
  • Support PoE watchdog to detect and restart the cameras that do not respond
  • Support STP/RSTP Loop prevention
  • Support cable detection to locate failure
  • Up to 300 m Long Range PoE Transmission
  • 6 kV Surge Protection
General
ShellMetal material, fan-free design
Net Weight0.35 kg (0.77 lb)
Gross Weight1.114 kg (2.45 lb)
Dimensions (W × H × D)170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply54 V DC, 2.22 A
Installation ModeDesk-Mounted,Wall-Mounted
Max. Power Consumption120 W
Power Consumption in Idle10 W
Surge Protection6 kV
Network Parameters
Ports8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port
MAC Address Table8 K
Packet Forwarding Rate

Whole-Device Performance: 4.17 Mpps

Port Performance: 2.68 Mpps

Internal Cache4 Mbits
Switching Capacity

Whole-Device Performance: 5.6 Gbps

Port Performance: 3.6 Gbps

PoE Power Supply
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE Power PinEnd-span: 1/2(-), 3/6(+)
PoE PortPoE: Ports 1 to 8
Max. Port Power30 W
PoE Power Budget110 W
Software Function
Long Range

Ports 1 to 8: up to 300 m.

Long range performance may vary depend on camera model or cable condition.



Port Isolation

Ports 1 to 8: port isolation mode to improve network security

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.



Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP.

Suppport 802.1w RSTP.





VLAN

VLAN is used for network scale planning and network health improvement. Support 802.1Q.

Configurable VLAN ID from 1-4094. Support Trunk, Access port mode.

Support Max. 4094 VLAN.
